Certified KNX Communication Infrastructure and Secure Connection Technology
LSHF-certified KNX bus cables and genuine connection terminal blocks engineered to ensure maximum signal integrity, high noise immunity, and fire protection across Ekinex building automation installations.
.png)

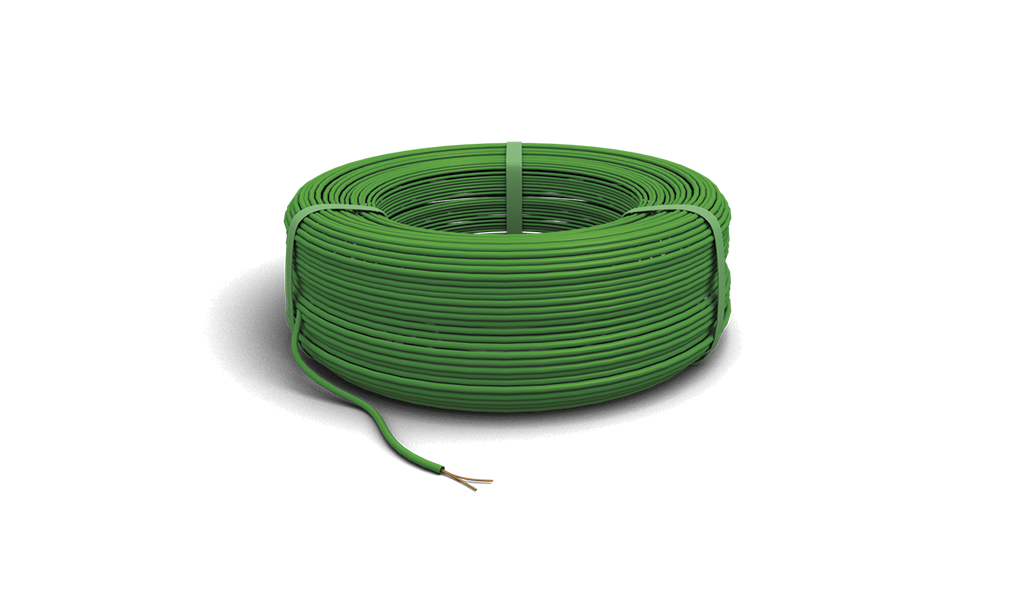

LSHF (Low Smoke Halogen Free) twisted pair cable for the connection of KNX bus devices and derivation of KNX bus lines. Single pair of solid copper wires with 0.8 mm diameter, aluminum screen foil. Supplied in 100 m reel.
Twisted double-pair cable for the connection of KNX bus devices and derivation of KNX bus lines. Double pair of wires with 0.8 mm diameter, aluminum screen foil, LSHF version. Supplied in 100 m reel.
LSHF (Low Smoke Halogen Free) twisted single-pair cable for the connection of KNX bus devices and derivation of KNX bus lines. Single pair of wires with 0.8 mm diameter, aluminum screen foil. Supplied in 500 m wooden drum.

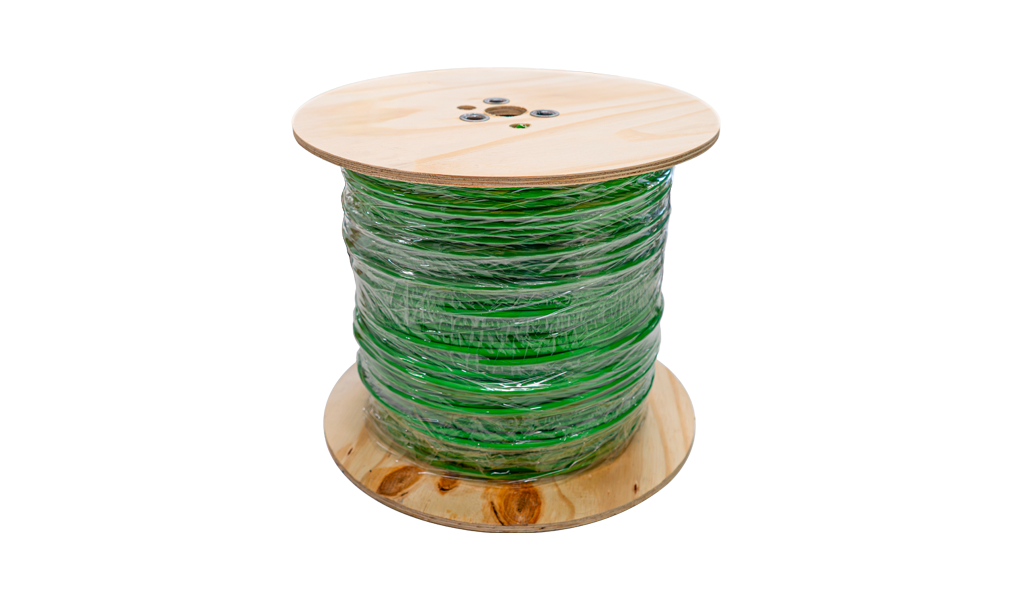

LSHF (Low Smoke Halogen Free) twisted double-pair cable for the connection of KNX bus devices and derivation of KNX bus lines. Double pair of wires with 0.8 mm diameter, aluminum screen foil. Supplied in 500 m wooden drum.

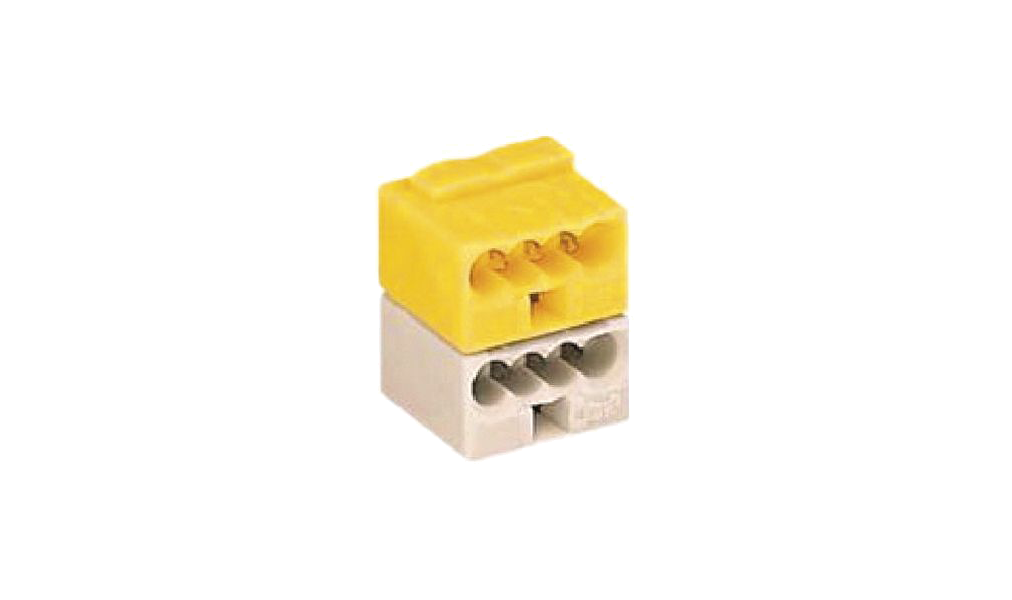

Terminal block for the connection of SELV lines, e.g. 30 Vdc auxiliary power supply. It allows connection of max. 4 pairs of wires. Also used as distribution terminal in wall boxes. Color coding: yellow/white.

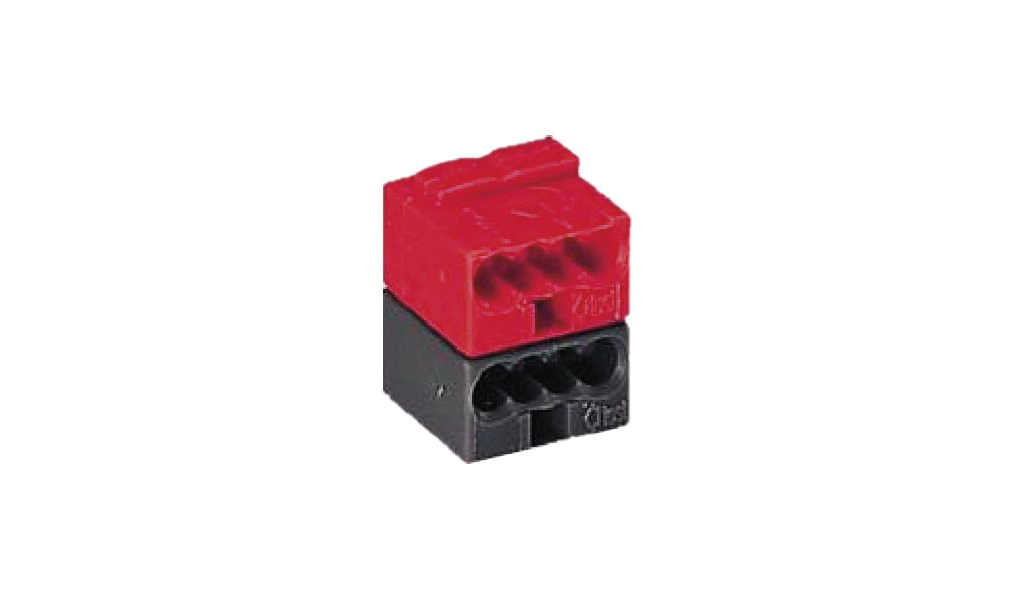

Standard terminal block for the connection of KNX bus lines. It allows connection of max. 4 pairs of wires. Also used as distribution terminal in wall boxes. Color coding: black/red.
Ekinex KNX cables and terminal blocks ensure absolute signal integrity, high noise immunity, and maximum fire safety across residential, hospitality, and commercial building automation infrastructures.
Low Smoke Halogen Free (LSHF) sheath compliant with IEC 60332-1, IEC 60754, and IEC 61034 standards, preventing toxic gas emission and dense smoke in case of fire.
Tested to 250V nominal insulation resistance (@ 20°C: 200 MΩ/km), certified to be routed in the same conduits and cable trays alongside standard 230 Vac power lines.
Color-coded terminal blocks (Red/Black for KNX Bus, Yellow/White for SELV) accommodate up to 4 pairs of 0.6–0.8 mm solid conductors without screws or soldering.
