Millimeter Alignment and Flawless Multi-Gang Geometry
Galvanized sheet metal and technical polymer mounting templates engineered to ensure exact center-to-center pitch, level alignment, and flawless cavity preparation for multi-gang Ekinex devices and flush installations.
Template for double mounting horizontally or vertically of two Ekinex® devices equipped with a square frame of the Form series (EK-FOQ). Made of galvanized sheet metal with a thickness of 1 mm.

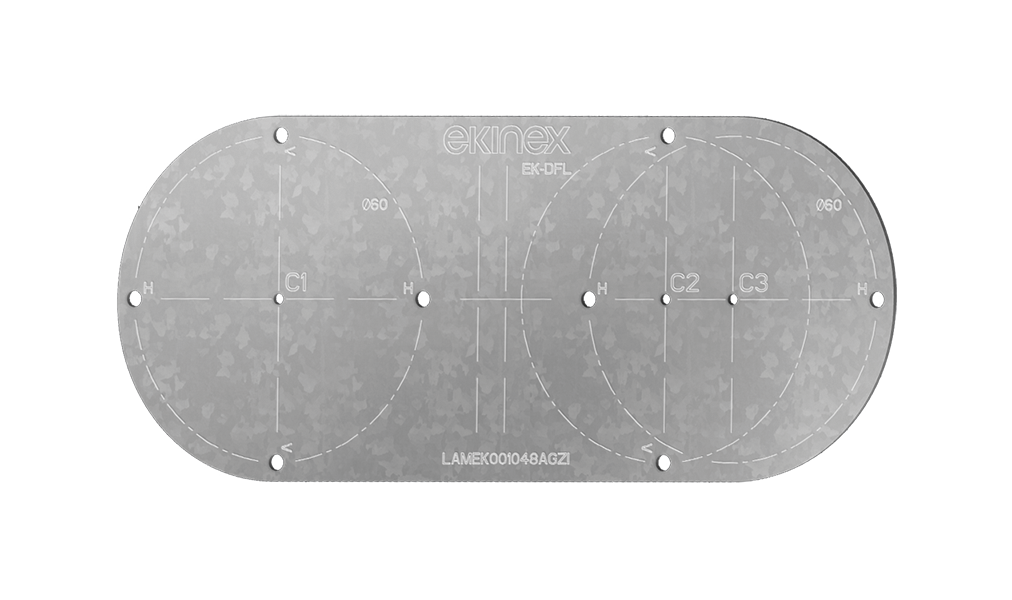

Template for double mounting horizontally or vertically of two Ekinex® devices equipped with a square frame of the Flank series (EK-FLQ). Made of galvanized sheet metal with a thickness of 1 mm.
Template for making precise wall cavities during wall plastering in masonry or solid walls, in order to mount a square Surface plate-adapter bundle.
Template for the realization during the plastering phase of the wall of an accurate seat for the assembly of the Surface 2-fold plate-adapter assembly.

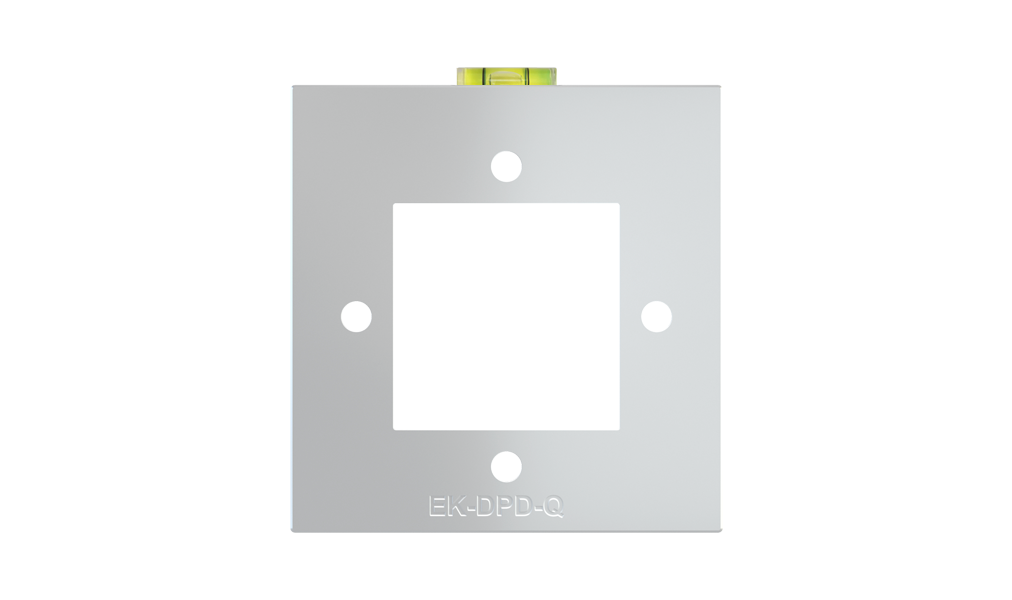

Template for installation of square civil series components and socket outlets on ‘NF and Deep series configurations, ensuring perfect alignment.

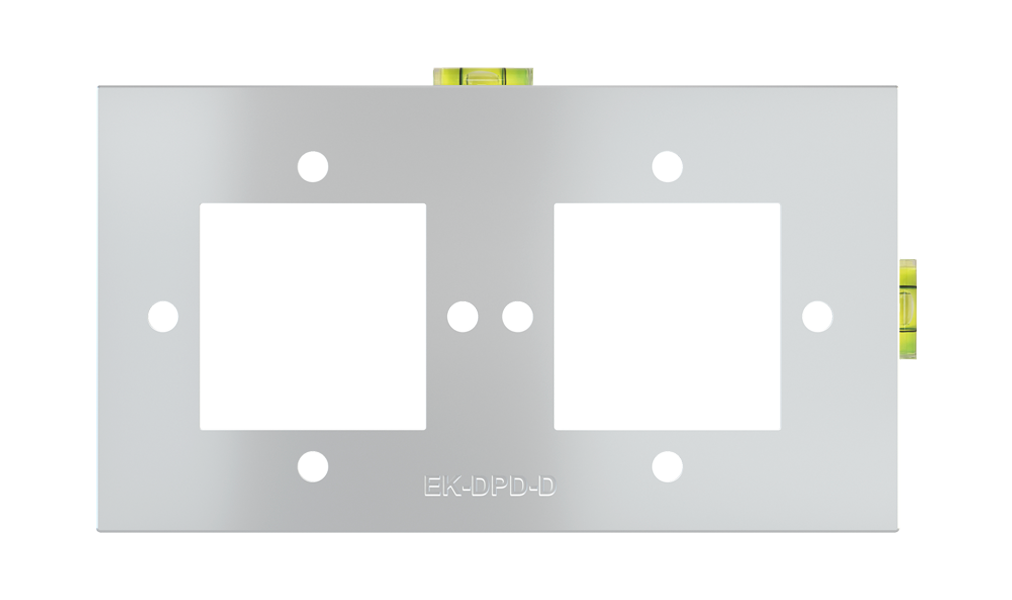

Template for installation of 2-fold civil series components and sockets on ‘NF and Deep series configurations with accurate centre distance.
