Flawless Mechanical Rigidity and Precision Interface
Galvanized sheet steel and high-resistance technical polymer mounting supports engineered for millimeter-precise alignment and solid fixation of Ekinex pushbuttons, thermostats, room controllers, and presence sensors onto standard electrical flush boxes and surfaces.

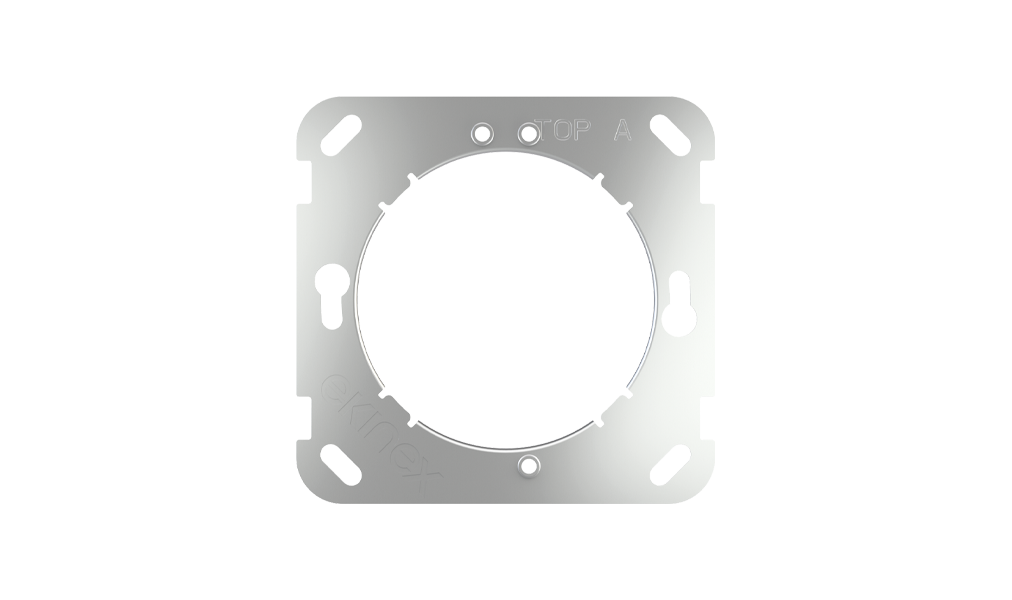

Square metallic support for mounting a 4-fold pushbutton (EK-ED2-TP) or a Touch&See unit (EK-EC2-TP) on a round or square wall box with 60 mm fixing hole distance. Mounting screws included.

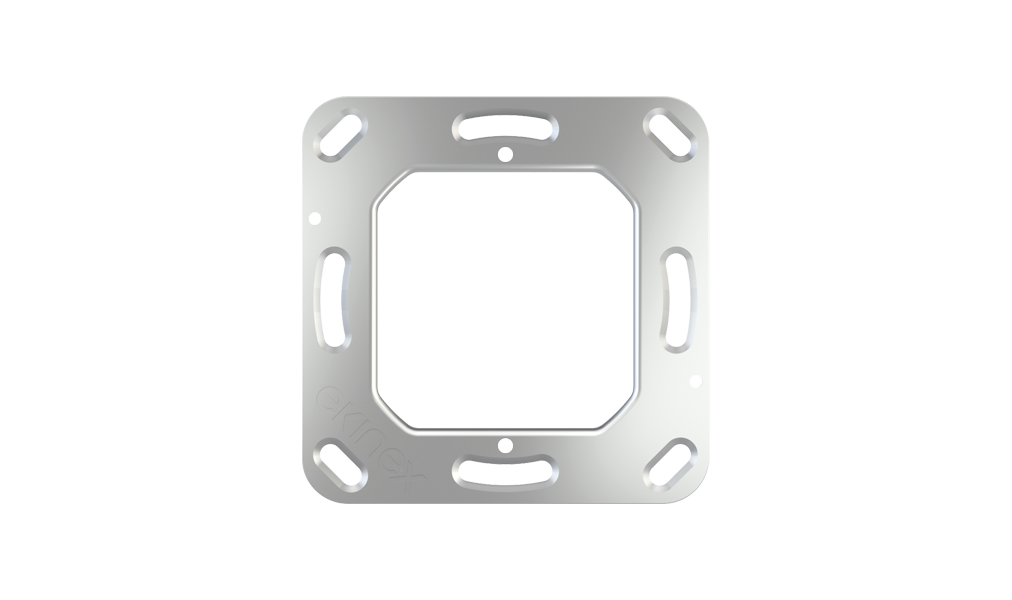

Square metallic support for mounting 20venti, FF and 71 series bus devices on a round or square wall box with 60 mm fixing hole pitch. Includes mounting screws.

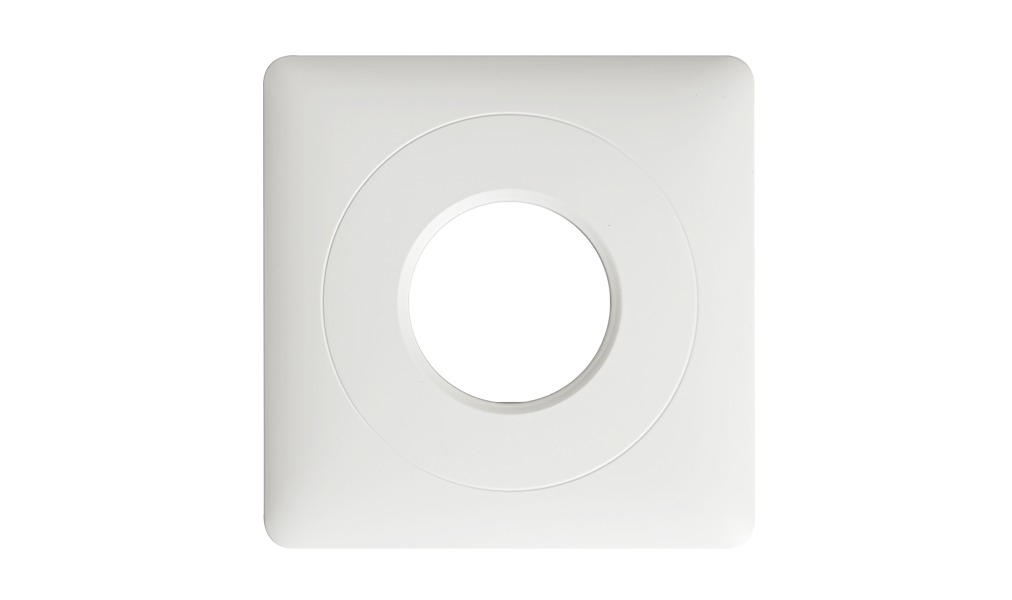

Plastic wall mounting bracket (in wall box or flush with wall) for Ekinex EK-SG2-TP-M sensor. Guarantees neat alignment with plaster and masonry.

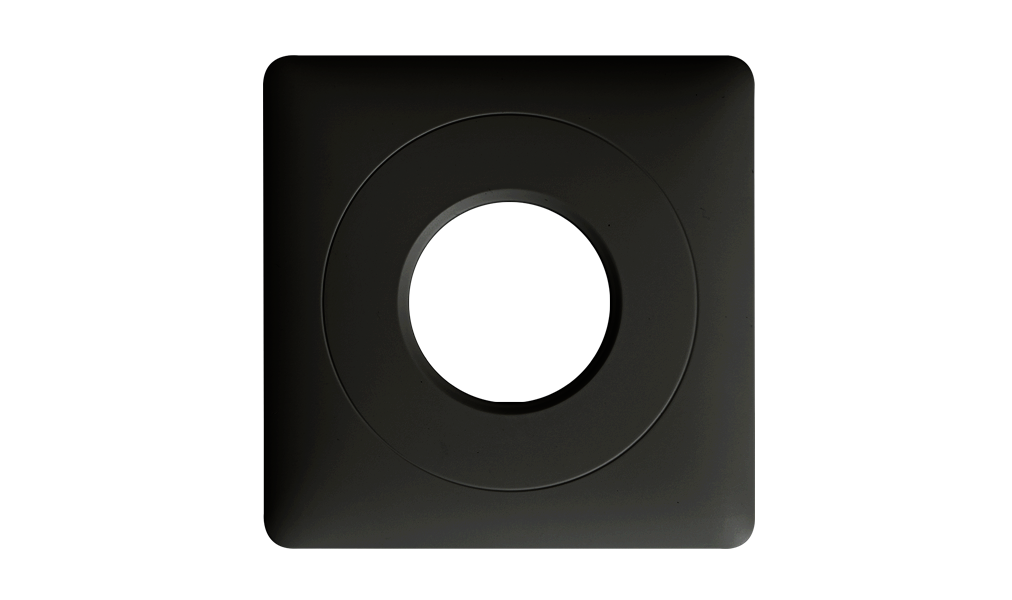

Plastic wall mounting bracket (in wall box or flush with wall) for Ekinex EK-SG2-TP-M-B sensor in black finish. Provides discreet and stable wall positioning.
Square metallic support for mounting a Signum series bus device on a round or square wall box with 60 mm fixing pitch. Mounting screws included.

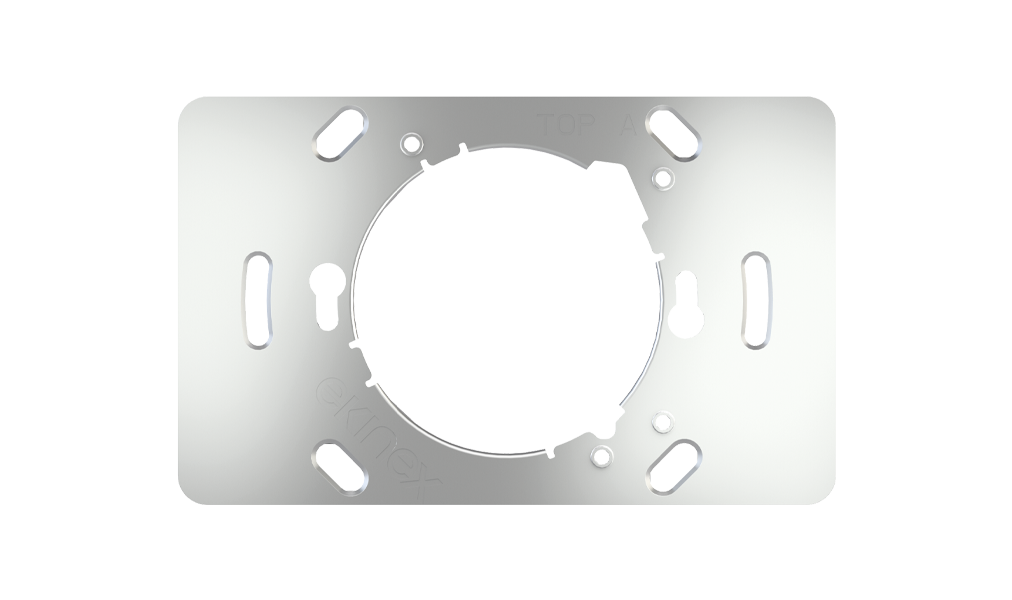

Rectangular metallic support for mounting a 6-channel pushbutton (EK-EB2-TP) or Touch&See unit with 2-channel pushbutton (EK-EF2-TP) on a round/square wall box. Screws included.

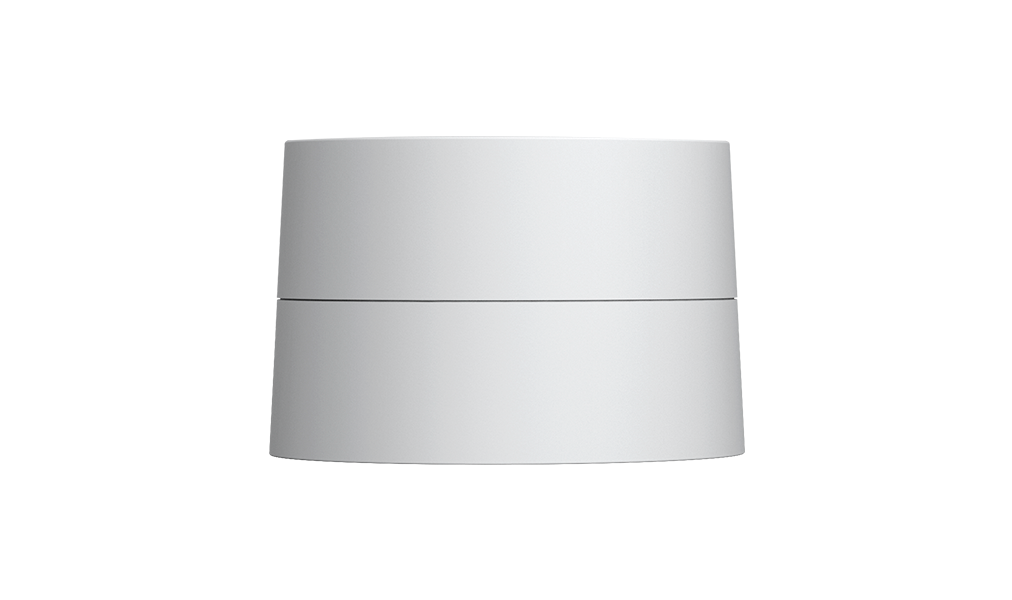

Plastic mounting bracket for installing an EK-SG2-TP-M or EK-SG2-TP-P sensor on the surface of a wall or ceiling, eliminating the need for a flush-mount box.

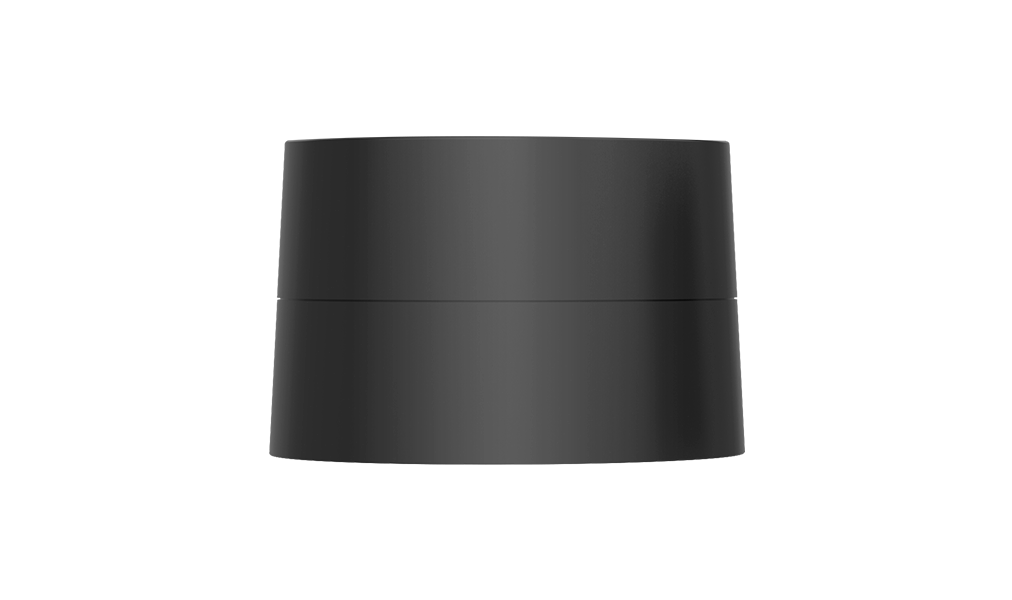

Plastic mounting bracket for installing an EK-SG2-TP-M or EK-SG2-TP-P sensor on the surface of a wall or ceiling in black finish, eliminating the need for a flush-mount box.

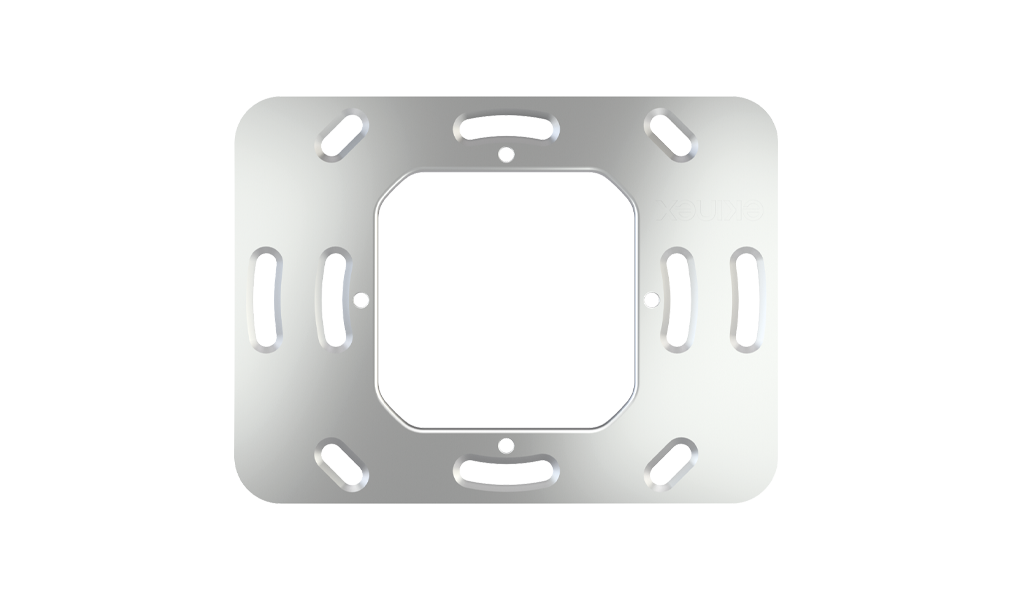

Rectangular metallic support for mounting a 20venti, FF and 71 series bus device on a round or rectangular wall box with 83.5 mm fixing pitch. Mounting screws included.

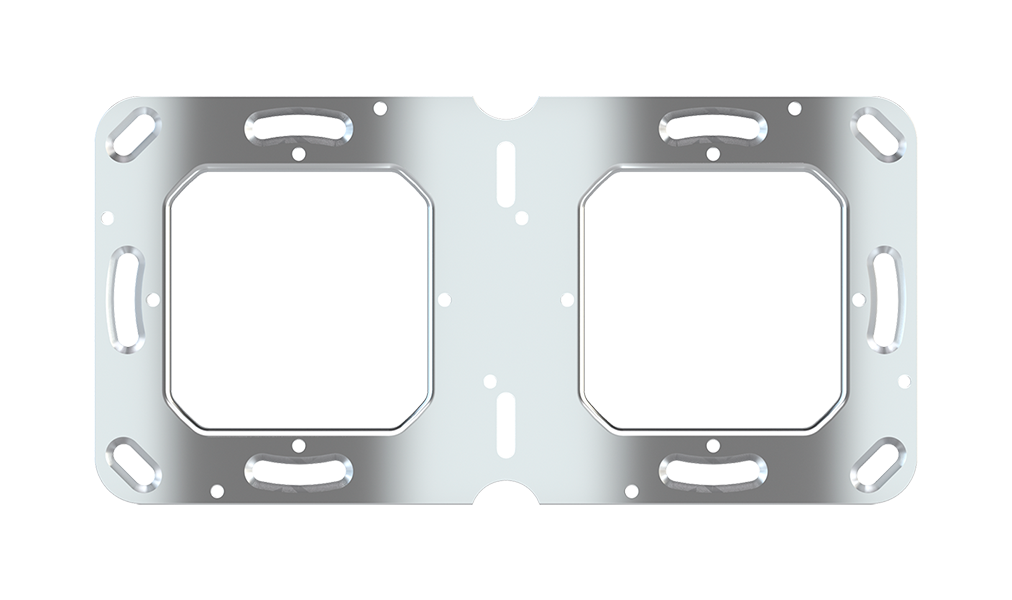

2-place metal support for mounting 20venti and 71 series devices on a 2-place flush-mount box with 71 mm spacing between fixing holes. Mounting screws included.

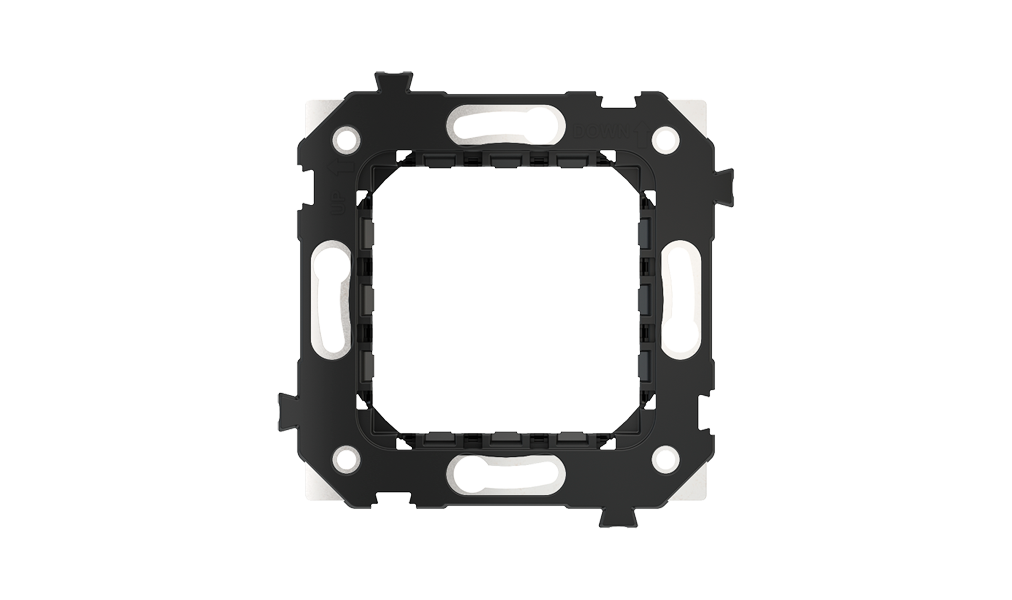

The EK-SMP-71-1 co-molded bracket is an essential foundation element, engineered with rigidity and versatility to enable multi-gang configurations.

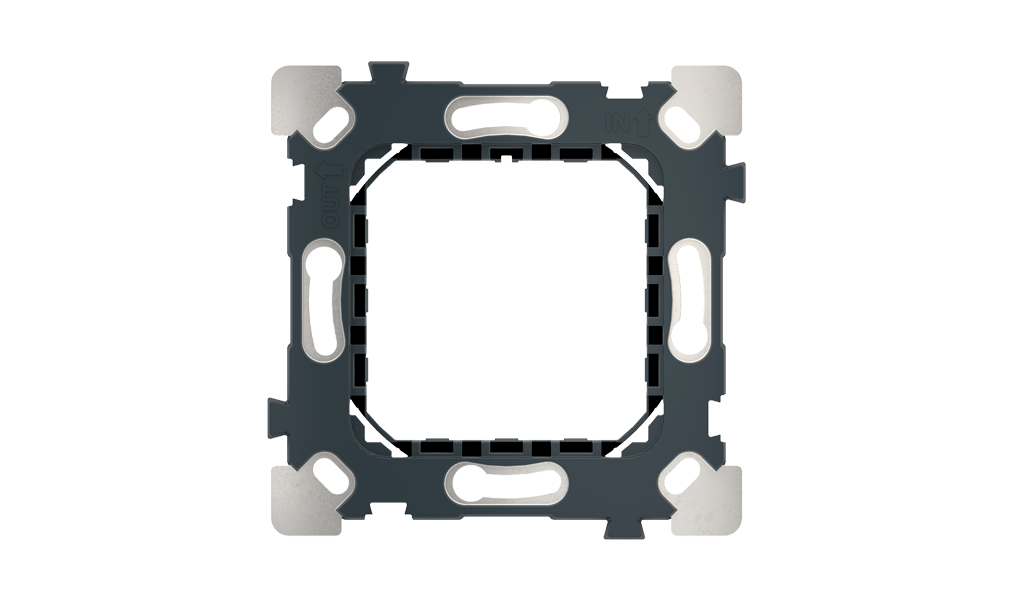

The EK-SMP-B-1 co-molded support is a core component of the Proxima series, designed for mounting on Swiss (CH) and British (UK) electrical boxes.
The EK-SDP-71-1 molded bracket is a key structural element of the Proxima series, facilitating the alignment and mounting of 2-gang configurations.
Rectangular metal mounting bracket for installing 71, 20venti, and ERA series push-button panels and thermostats on Swiss (CH) and British (UK) boxes.
Square rubber mounting bracket suitable for installing Ekinex and third-party devices, ensuring acoustic isolation, vibration dampening and enhanced seal.
