Sentio Audio Systems

Streamer

The Ekinex multi-room audio system is based on one or more amplifiers that receive the audio stream and transmit it directly to the speakers.

Streamer Amplifiers

Sentio Multiroom Smart Audio Architecture

The Ekinex multi-room audio system is based on one or more amplifiers that receive the audio stream and transmit it directly to the speakers.

Integration modes within the system (near or far from the speakers, playback of TV audio, etc.), single zone or multi-zone mode, and playback of different streaming music sources.

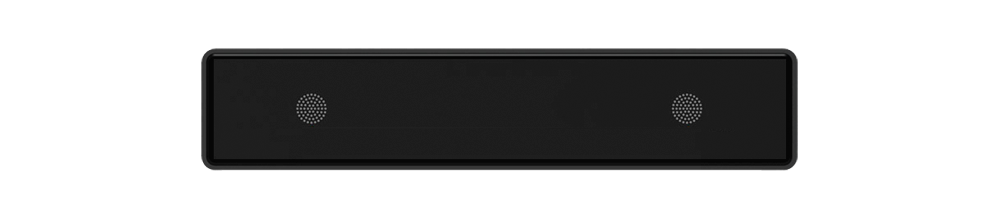

Streamer 30W

EK-30S-AU

2 x 35W @ 4Ω / 2 x 18W @ 8Ω

Hi-Fi multiroom stereo streamer amplifier with 2.4G WiFi and Bluetooth 5.0.

2.4G WiFi and Bluetooth 5.0 wireless connectivity
10/100M RJ45 Ethernet port
3.5mm Stereo Aux Line-in input
USB Host for local music playback
Micro USB port for PC external DAC connection
FLAC, MP3, AAC, ALAC lossless audio support

Find out more Technical Documentation

Streamer 50Wx2

EK-50S-AU

2 x 50W @ 4Ω + Subwoofer Çıkışı

2-channel streamer amplifier with 50Wx2 subwoofer output. It features WiFi and Bluetooth 5.0 technologies and supports multi-room music streaming.

2x50W stereo amplification + Active Subwoofer Pre-out
WiFi & Bluetooth 5.0 wireless streaming technology
RCA Analog & Optical Digital audio inputs
RJ45 LAN connection for uninterrupted stability
Sentio multi-room music streaming and synchronization

Find out more Technical Documentation

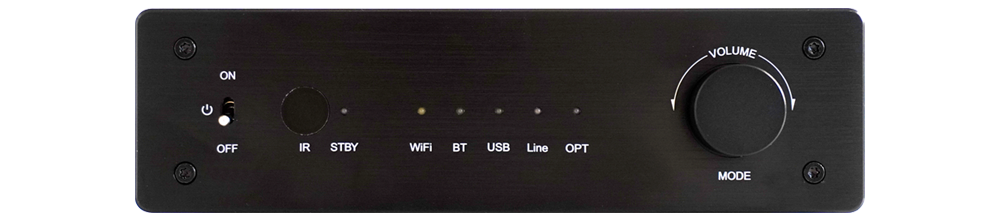

Streamer 80Wx2

EK-80S-AU

2 x 80W @ 4Ω + Subwoofer Çıkışı

2-channel streamer amplifier with 80Wx2 subwoofer output. It features WiFi and Bluetooth 5.0 technologies and supports multi-room music streaming.

2x80W high power + Independent Subwoofer Pre-out
Ideal for large spaces and demanding high-end speakers
WiFi & Bluetooth 5.0 high-resolution audio streaming
Optical digital and analog RCA line inputs
Lossless audio formats and seamless multi-room synchronization

Find out more Technical Documentation

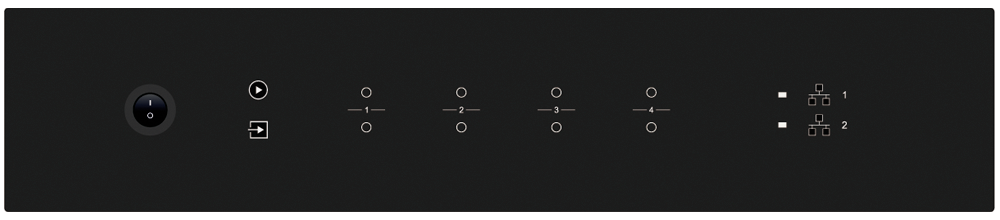

Streamer 50Wx8

EK-50Q-AU

8 x 50W @ 8Ω (4 Bağımsız Bölge)

50Wx8 @8ohm streamer amplifier with 4 different zones for your home audio system. It features numerous inputs for analog and digital audio sources.

4 Independent Zones (Multi-zone Matrix Architecture)
8 x 50W @ 8Ω robust Class-D amplification
Dedicated analog and optical digital inputs per zone
Master Audio input/output bus
Standard 19-inch rack mountable chassis

Find out more Technical Documentation

Technical Specifications Comparison

Compare the features and technical parameters of the Sentio streamer amplifier range.

Feature	Streamer 30W EK-30S-AU	Streamer 50Wx2 EK-50S-AU	Streamer 80Wx2 EK-80S-AU	Streamer 50Wx8 EK-50Q-AU
Output Power	2x35W @ 4Ω / 2x18W @ 8Ω (18V/4A)	2x50W @ 4Ω / 2x30W @ 8Ω + Sub Out	2x80W @ 4Ω / 2x50W @ 8Ω + Sub Out	8x50W @ 8Ω (4 Separate Stereo Zones)
Channels / Zones	2-Channel Stereo	2.1 Channel (Stereo + Subwoofer)	2.1 Channel (High Power Stereo + Subwoofer)	8-Channel (4 Independent Multi-room Zones)
Connectivity	WiFi IEEE802.11 b/g/n 2.4G, Bluetooth 5.0, RJ45 10/100M	WiFi, Bluetooth 5.0, RJ45 Ethernet	WiFi, Bluetooth 5.0, RJ45 Ethernet	4x RJ45 Ethernet, USB, RS232 Integration Port
Frequency Response	20Hz to 20kHz	20Hz to 20kHz	20Hz to 20kHz	20Hz to 20kHz
Audio Inputs	3.5mm Stereo Line-In, USB Host, Micro USB PC DAC	RCA Stereo Analog In, Optical Digital In, USB Host	RCA Stereo Analog In, Optical Digital In, USB Host	4x RCA Analog In, 4x Optical Digital In, 4x Coaxial In, Master Bus In
Audio Outputs	Speaker Terminals (L/R)	Speaker Terminals, Subwoofer RCA Pre-out	Gold-plated Speaker Terminals, Subwoofer RCA Pre-out	8x Speaker Terminals, Master Bus Out
Dimensions	116 x 64 x 30 mm	158 x 146 x 40 mm	158 x 146 x 40 mm	430 x 300 x 88 mm (2U Rack)
Power Supply	18V DC / 4A	24V DC / 4.16A	32V DC / 5A	100-240V AC 50/60Hz Internal Power Supply
