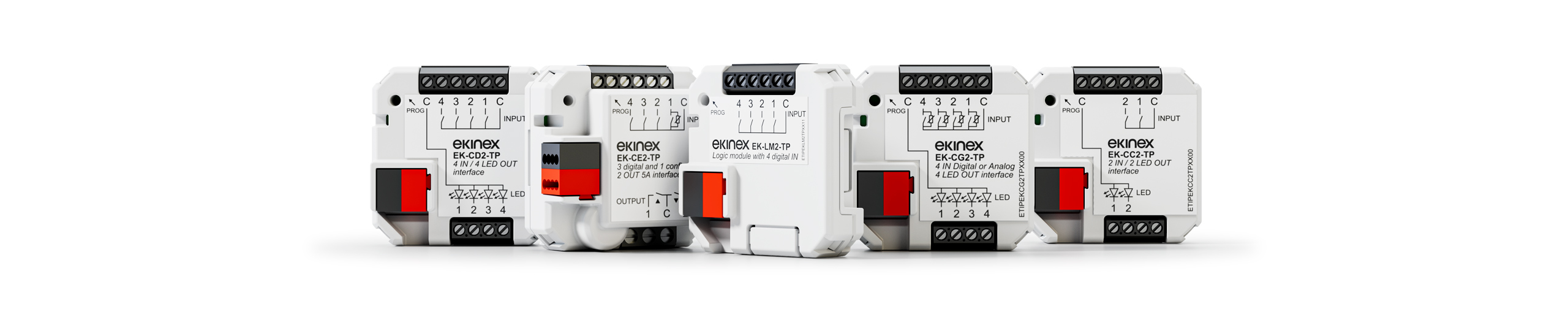

Ekinex flush-mounted I/O modules are KNX devices designed to acquire signals and control loads directly within the installation, offering a compact and discreet solution for integrating traditional devices and controls.
Depending on the model, they may feature inputs and outputs for connecting push-buttons, contacts, sensors and other devices, expanding the possibilities for automation without taking up space in the distribution board.

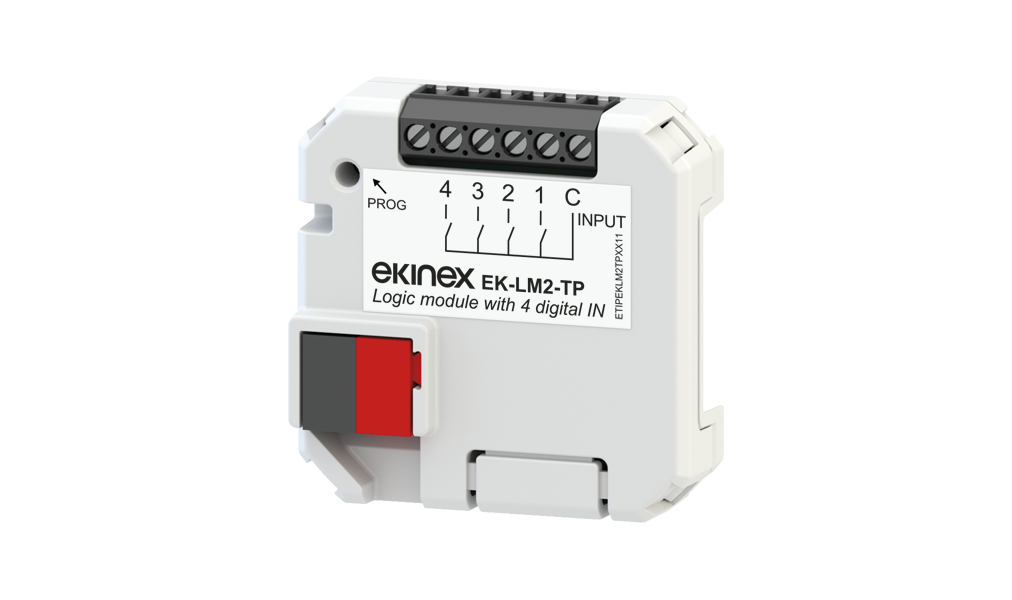

Configurable logical module LM2
This module performs logic and data processing functions on data exchanged on the KNX bus.

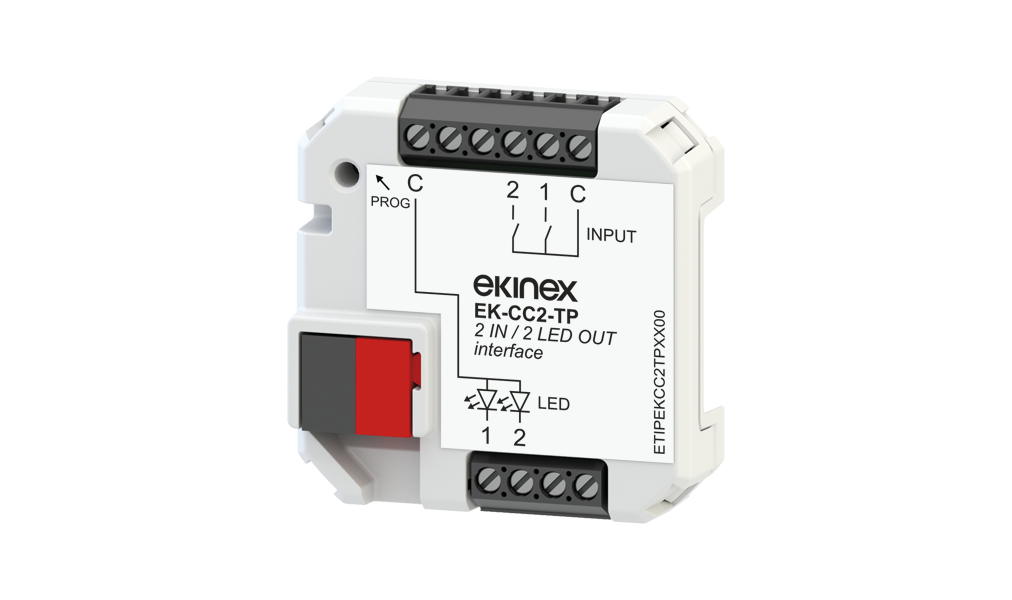

Universal interface CC2 (2 IN / 2 OUT)
KNX device for connecting free-potential contacts (input) and low-consumption LED (output).
Universal interface CD2 (4 IN / 4 OUT)
KNX device for connecting free-potential contacts (input) and low-consumption LED (output).

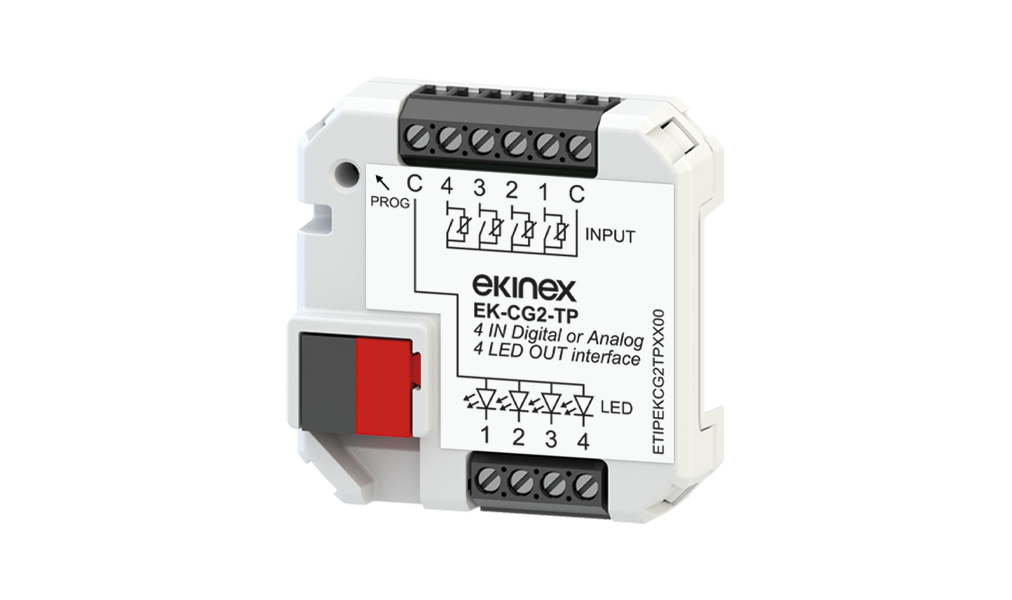

Universal interface CG2 (4 IN conf. as DI or NTC / 4 OUT) with thermostat function
KNX device for connecting free-potential contacts or NTC temperature sensors and low-consumption LED. Room thermostat function for 4 independent zones.

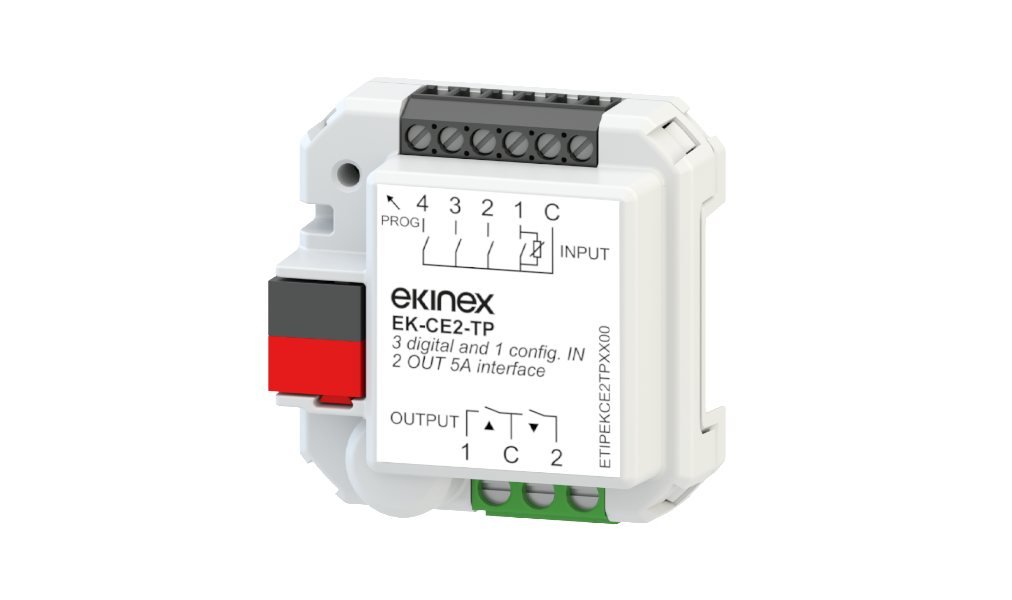

Universal interface CE2 (4 IN conf. / 2 OUT relais 5A)
KNX device for connecting free-potential contacts (input) and electrical loads (output). 1 input configurable for NTC temperature probe with thermostat function.

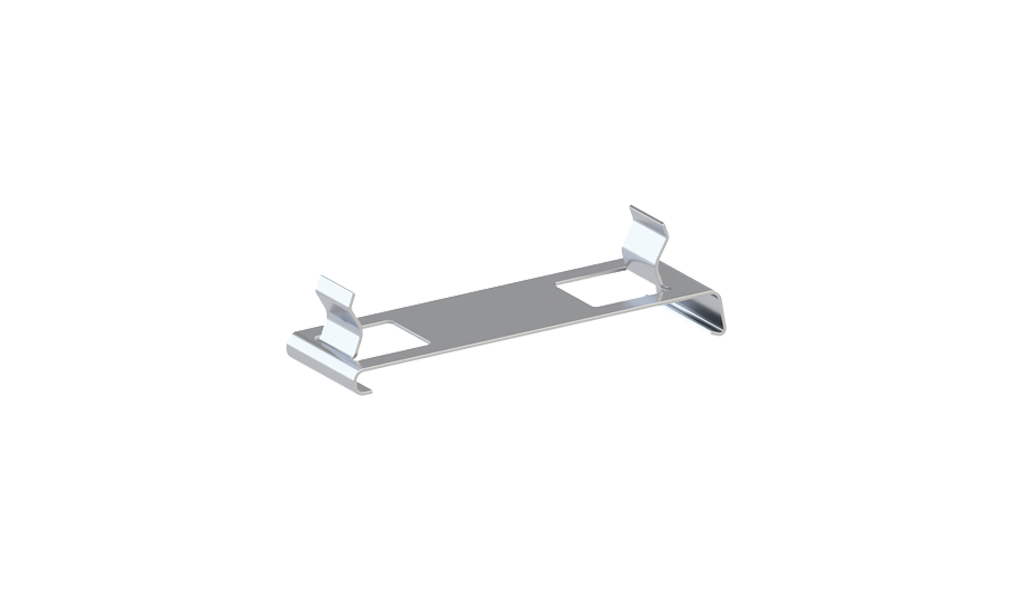

Spring for snapping on wall-mount devices
Spring for snapping universal interfaces (except EK-CB2-TP) on the back of Ekinex® wall-mount devices.

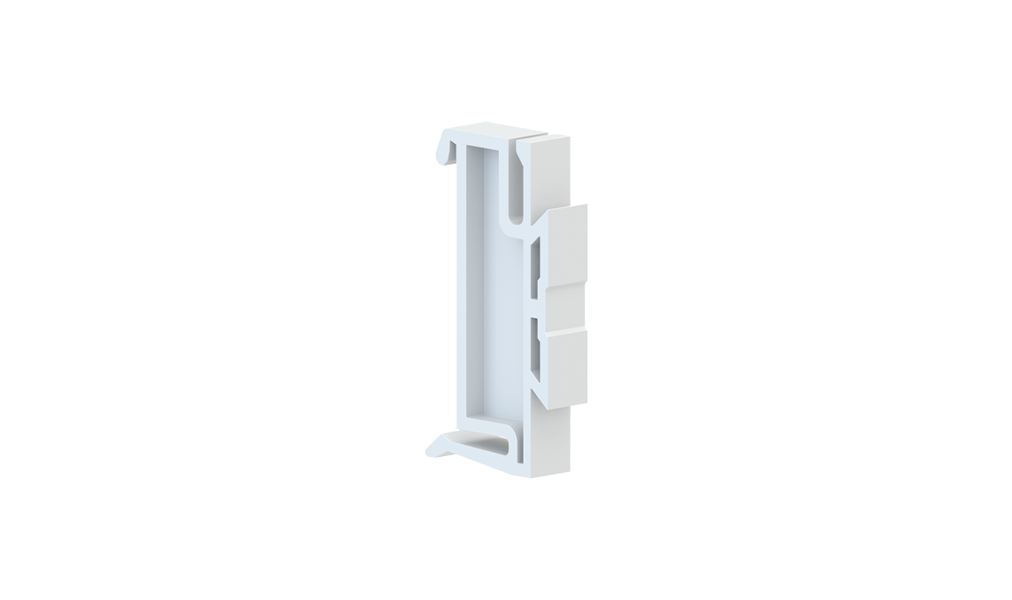

Support for DIN-rail mounting
Support for mounting universal interfaces on a standard 35 mm DIN-rail.

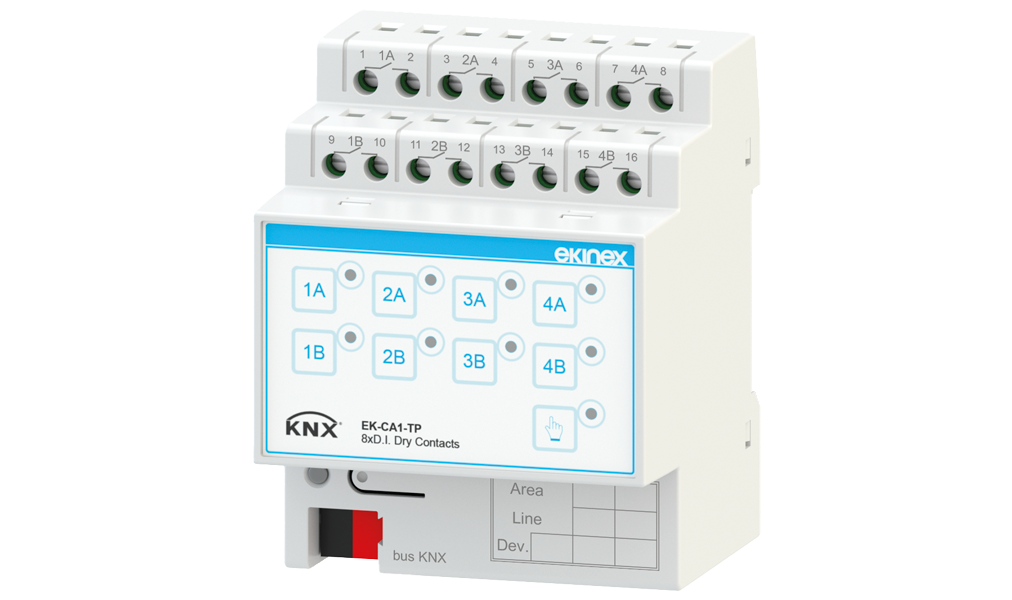

8-fold analog/binary input
8-fold KNX analog/binary input for connecting free-potential contacts or NTC passive temperature sensors.

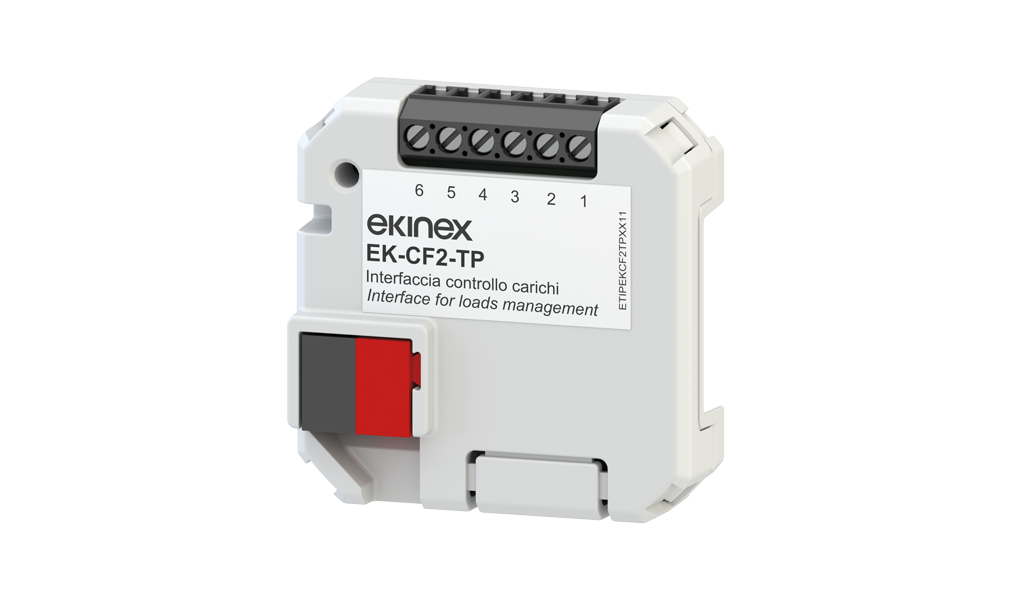

Interface CF2 for load monitoring and control
KNX device for monitoring and control of electrical loads through the connection of EK-TA current transformers to the inputs.

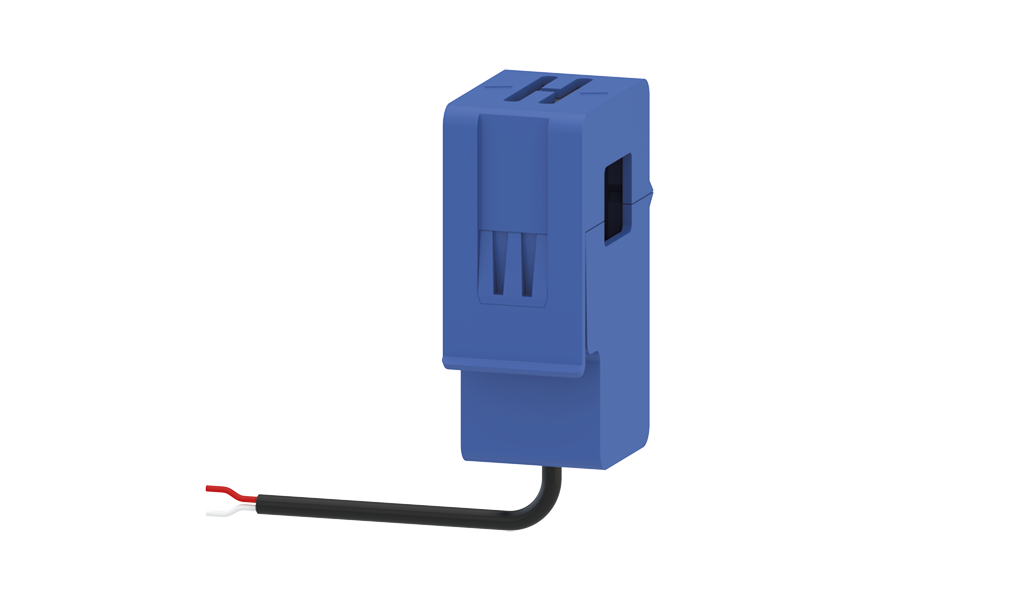

Current trasformer for CF2 interface
Current transformer (CT) to be used in combination with the loadmonitoring and control interface EK-CF2-TP.
