The standard for lighting control - DALI
The standard for lighting control - DALI
Developed and managed by the Digital Illumination Interface Alliance, the global consortium of leading lighting equipment manufacturers, the DALI brand was created to replace the traditional 0/1-10V lighting control standard. DALI is designed to enable the management, configuration, and programming of lighting systems whether they are traditional or LED in digital mode: based on two-way communication between devices and control systems, it is possible to execute on, off, or dimmer commands, report faults, or various types of information.
The innovations that the DALI system has brought to the management of LED lighting systems are many and of great impact in the professional lighting ecosystem. To date, it is the only protocol in the world dedicated to the lighting world that refers to a standard, IEC 62386, capable of guaranteeing interfunctionality between devices belonging to different brands.
The digital nature of the protocol enables two-way dialogue between devices, facilitating the deployment of scalable and flexible lighting networks. Based on a Master / Slave architecture, the DALI standard allows both single digital control of devices and group and/or broadcast programming. Wiring a DALI lighting network is generally very simple and reliable, in favor of network-independent lighting programming via software.
DALI briefly explained
The data transmission signal is via standard 2-wire 1.5mm² bus line, with a speed of 1.2 Kbit/sec. The manufacturer-independent protocol is defined in IEC 62386 and ensures interoperability of control devices in digitally controlled lighting systems. This standard replaces the frequently used 1-10 V dimmer interface.
Addressing options
Global (Broadcasting to all feeders) or Individual (channel addressing up to 64 channels).
Capacity and Group Structure
Up to 64 individual units, 16 groups and 16 scenes on a single DALI line.
Status confirmation
Real-time status confirmation for individual lights (ON/OFF, brightness percentage, lamp failure).
Internal Memory Architecture
Storage of configuration data (group assignments, scene levels, fade times, emergency levels) directly in electronic control gear (ECG).
Bus topologies
Line, tree, star or combinations thereof. Any topology except closed loop rings is supported.
Cable lengths up to 300m
Cable lengths up to 300 meters depending on conductor cross-section without repeaters.
Why choose a DALI system over a 1-10V analog system
Greater simplicity in wiring and installation
Replaces complex separate wiring runs with a single 2-wire bus connecting all luminaires.
No polarity for DALI control cables
No need to verify positive or negative poles, eliminating wiring errors and damaged drivers.
Centralized control
The entire lighting network can be monitored, adjusted and supervised from a central point or BMS.
Individual, group or overall light source addressability
Luminaires can be addressed individually, grouped into flexible operational zones, or controlled simultaneously.
Status feedback from ballast or light source
Real-time feedback on lamp ON/OFF state, operating hours, dimming percentage and lamp failure.
Advantages of the DALI System
No need to worry about polarity in wiring cables.
No need for separate bus lines (power + signal can run together).
No need for group wiring; groupings are configured via software.
DALI devices (power supplies, dimmers) can be addressed individually.
No need for special modules to store scenes; ECGs store them internally.
No need for external relays to turn off power supplies.
Direct compatibility with state-of-the-art sensors and smart devices.
Measurable energy savings and extended luminaire operating life.
Increased visual comfort and circadian lighting harmony.
DALI-2: the differences with the DALI-1 version
DALI-2 is the evolution of the first DALI protocol and is a standard integrated into both the specifications of IEC 62386 and those drawn up by the DALI Alliance, in a continuous interchange of design and development data between the two bodies. The first advantage of DALI-2 is full compatibility with the previous version: it is possible to use DALI-2 LED drivers in lighting systems with DALI standards, just as it is possible to use DALI-2 modules or sensors combined with standard LED drivers.
Addition of lighting control devices
Buttons, sensors, and LED controllers not covered in the original version are now standardized. DALI-2 certification mandates rigorous DiiA functional and interoperability compliance testing.
Introduction of Multi-Master architecture
Allows commands and signals to be transmitted to the DALI-2 bus from multiple controllers simultaneously, enabling independent, immediate and concurrent data communication.
Development of functional standards & D4i
New standards cover emergency lighting, tunable white color control and a specialized extension for smart IoT luminaires called D4i.
Why choose DALI?
Interoperability
DALI is an open standard for lighting. Choosing lighting fixtures is easy when DALI is prescribed. Also, control devices are certified for better compatibility between devices from different suppliers.
Flexible and future-proof
Spaces can be reconfigured by means of software, without having to touch electrical wiring. Implementing improvements and system expansions is remarkably simple compared to proprietary protocols.
Building efficiency
Lighting control devices are key to succeeding in reducing building energy consumption: DALI extends the useful life of luminaires and provides full system visibility to monitor and optimize usage.
Reduced wiring
DALI systems require considerably less wiring than traditional lighting systems, meaning less labor and lower costs. Because it is topology- and polarity-free, DALI wiring is more robust.
Multiple groups control
DALI allows multiple groups to be created so that users can control individual luminaires, an entire room or an entire floor seamlessly.
The technical advantages of the DALI system
The use of the DALI system facilitates the management of the lighting of any room, giving the possibility to have different settings, to change them just as easily without physically intervening on the system, and to detect and solve operating problems.
Energy Savings
Luminaires with an integrated DALI system provide significant savings in both energy costs and operating and maintenance costs. Motion sensors and dimming optimize energy consumption, while automatic and remote management reduces in-person maintenance interventions.
Where to use DALI-system luminaires?

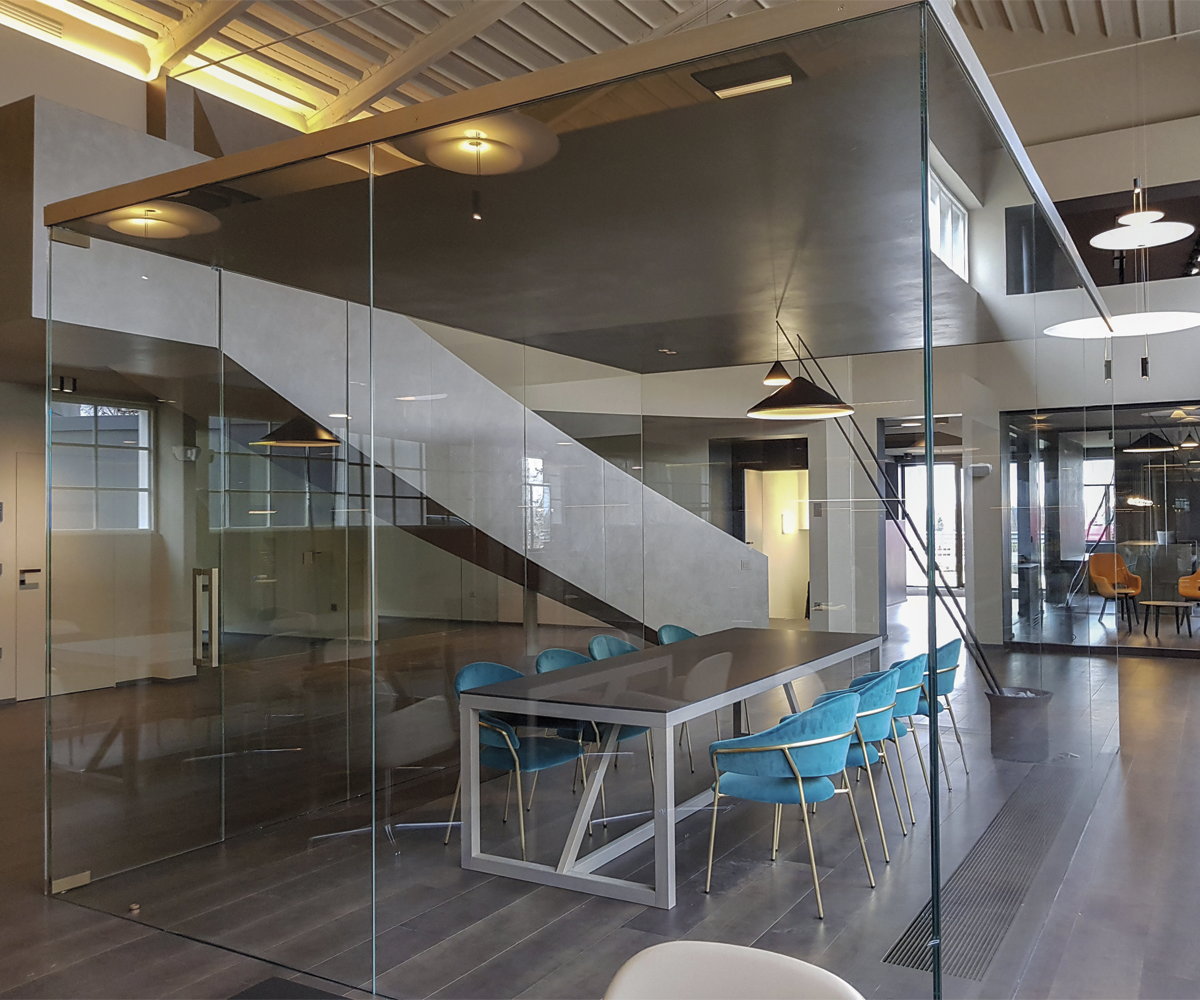

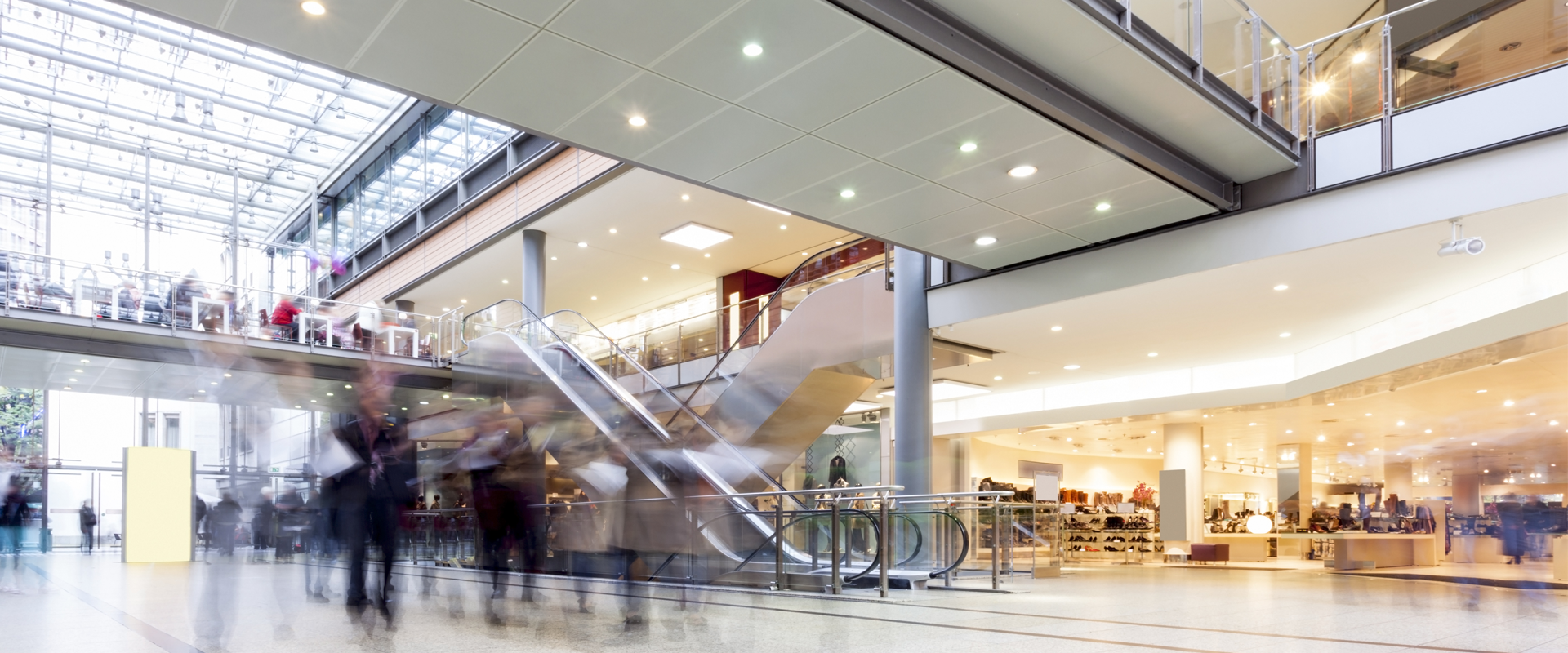

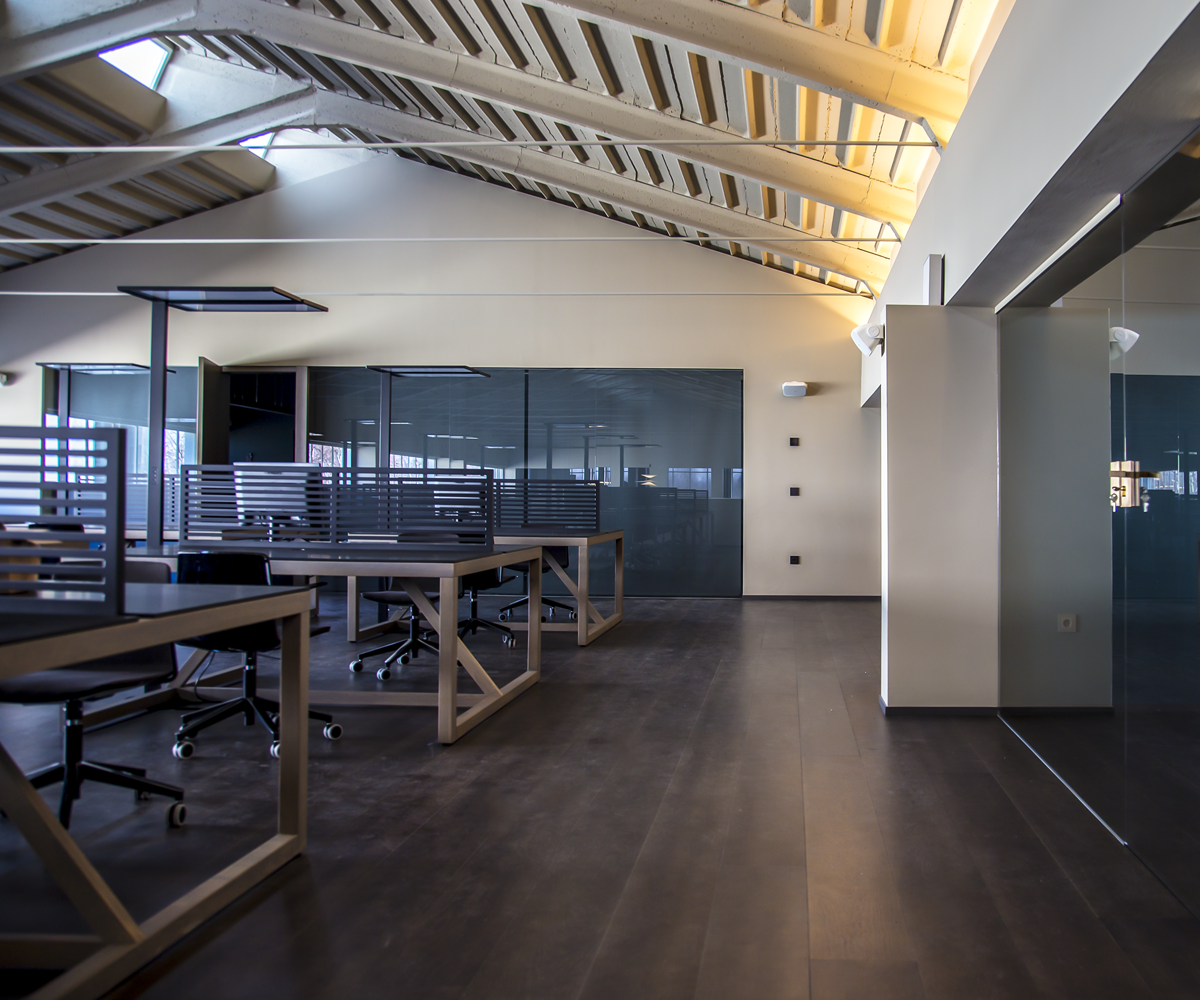

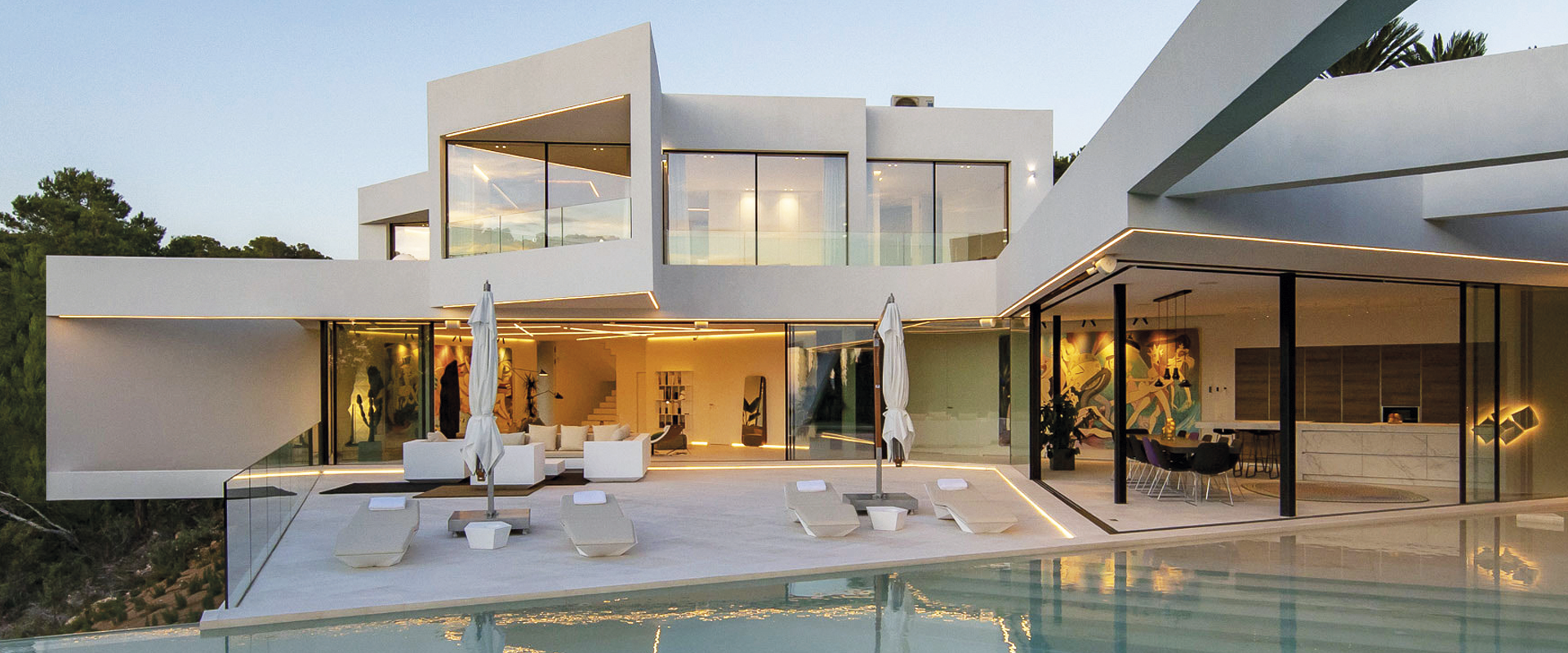

Luminaires with DALI system are characterized by wide versatility of use. They can be installed as much in offices and private homes as in large commercial spaces, arranging the ideal light and creating the perfect scenario for each activity.
