Wall-mounted controls Ekinex
Pushbuttons are the most common interface between the lighting system and end users and are present in almost all applications.
Depending on their configuration, pushbuttons can either perform a simple on/off command or continuously adjust the brightness, hue and colour of light sources.
They can also control groups of luminaires, call up scenes and sequences and, thanks to integrated LEDs, inform users about the status of luminaires or be easily detected in the absence of light.

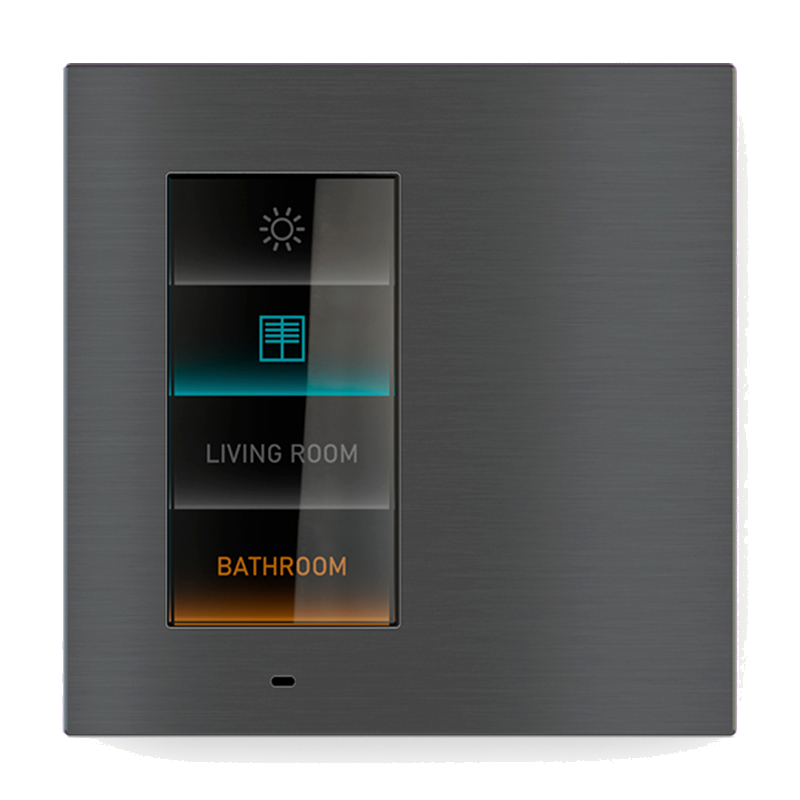

Signum
Signum introduces a different way of interpreting the concept of wall control, beyond convention, beyond the already seen.
The strong characterisation of Signum does not go unnoticed. It leaves a technological imprint on the environments that welcome it, a distinguishing mark for those with an aptitude for the new, the different, the out of the ordinary. A superior level of customisation that passes through the possibility of creating your own virtual button, where functions and graphics can be chosen autonomously. Usability is maximised.

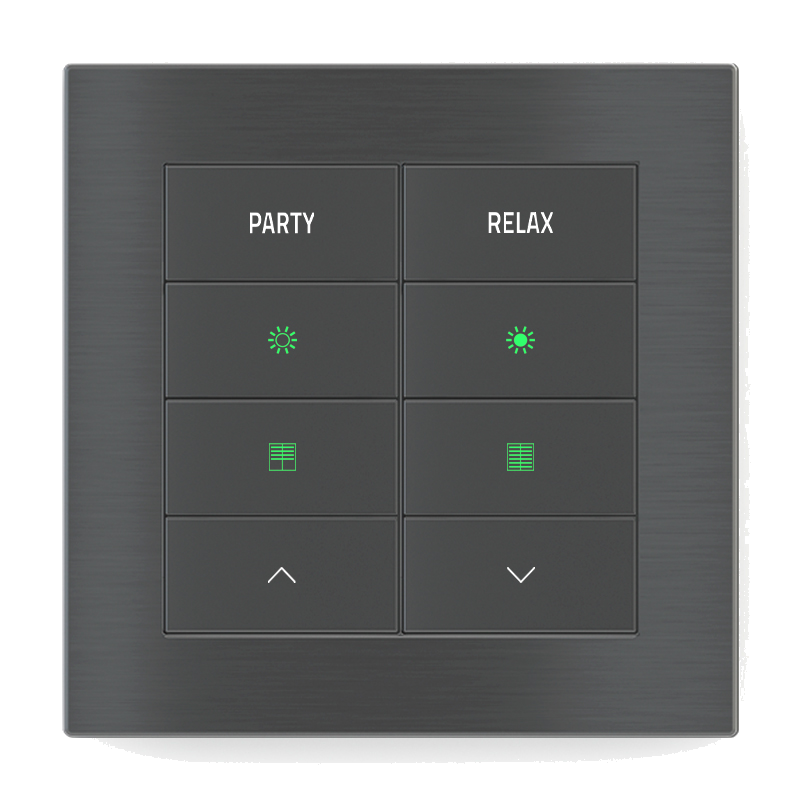

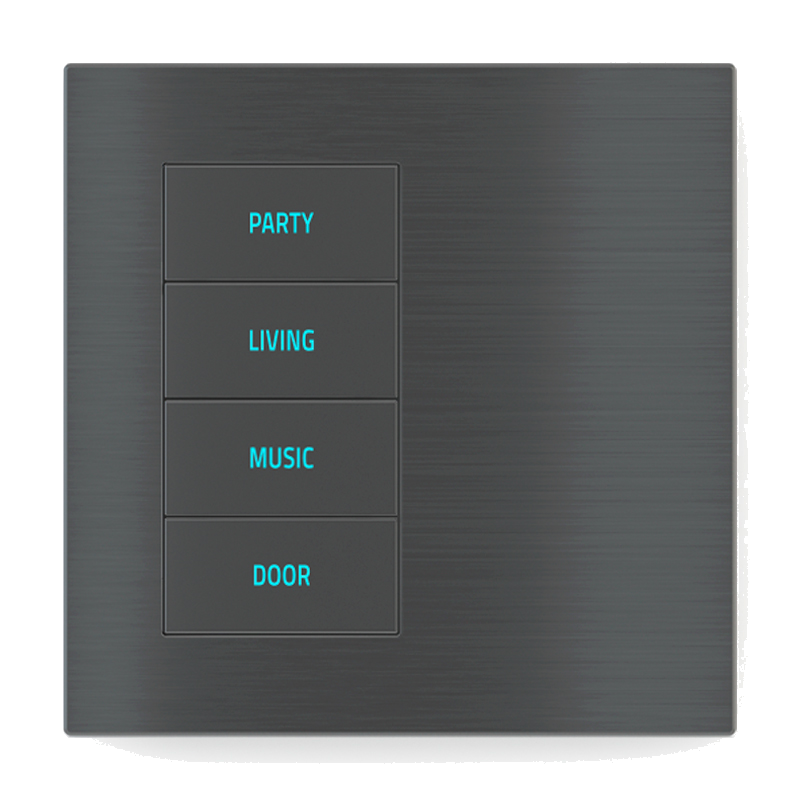

The 20venti series
The 20venti series of wall-mounted controls offers decidedly innovative contents, thanks to the backlighting of the buttons by means of RGB LEDs and the proximity sensor.
The integrated LEDs are freely programmable; in addition to the usual functions of status indication or night orientation light, the colour setting enables new applications and more intuitive and immediate use by the end user - a feature that is enhanced by the additional possibility of customising the individual keys with text and symbols.
The integrated proximity sensor opens up new possibilities.
Thanks to a PIR component that is completely invisible from the outside, the aesthetics remain unchanged; however, the button is able to detect the passage of people in the immediate vicinity of the luminaire (short-range detection) and initiate bus functions according to individual requirements: from the simplest, such as activating the backlighting of the button itself or changing the light intensity, to the most complex, such as calling up sequences or scenarios, through to switching on individual luminaires or groups of luminaires.
Activating the backlighting only when necessary allows the button to be freely positioned without fear of disturbing effects when resting at night. The detection can also be received via bus from other Ekinex devices.
As with other Ekinex control series, the 20venti buttons have an integrated temperature sensor and can also function as a room thermostat for a room or an entire zone in a building.
Customising buttons with symbols

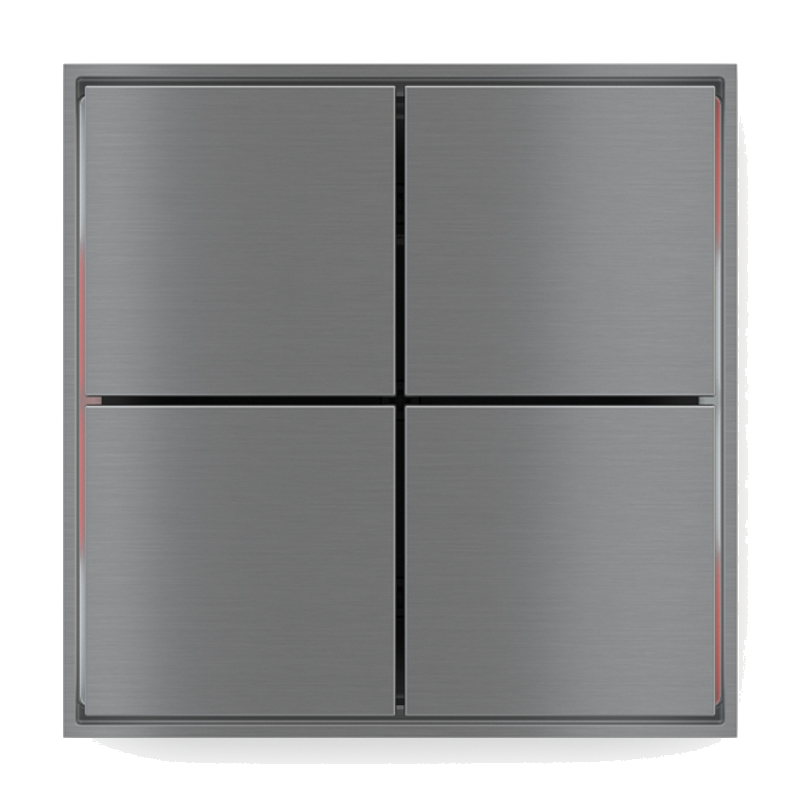

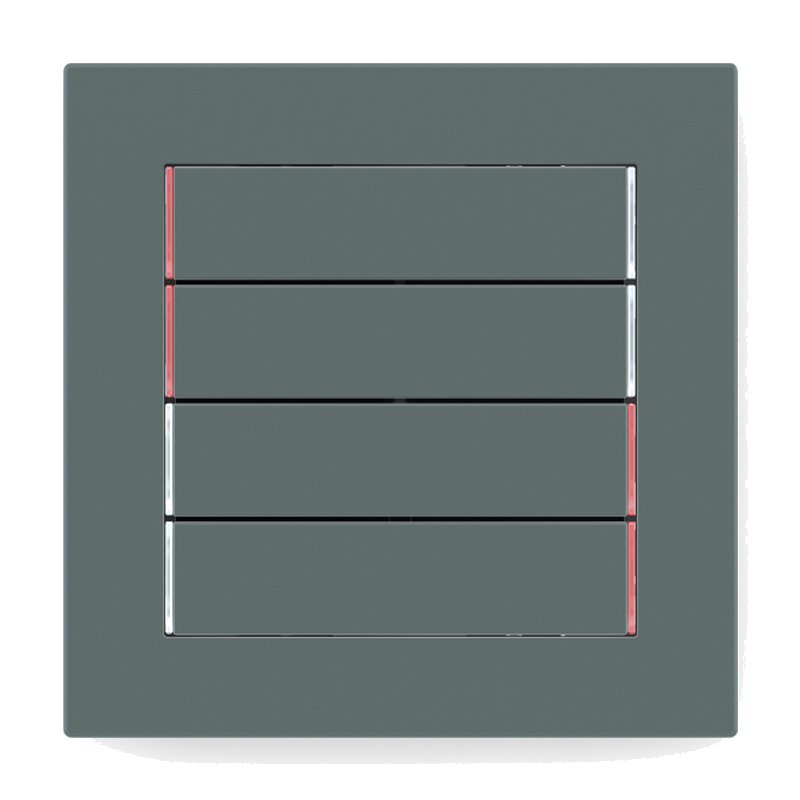

The keys for the 20venti, FF and 71 series can be customised using symbols from the Ekinex library. Customisation with customer-specified symbols and text is also possible on request.
Square keys
Single symbol: The single symbol is reproduced in the middle area of the square key, centred vertically and horizontally.
Double symbol: The double symbol is reproduced in the upper and lower areas of the square key, centred horizontally.
Vertical rectangular keys
Single symbol: The single symbol is reproduced in the middle area of the rectangular key, centred vertically and horizontally.
Double symbol: The double symbol is reproduced in the upper and lower areas of the rectangular key, centred horizontally.
Horizontal rectangular keys
Single symbol: The single symbol is reproduced in the middle area of the rectangular key, centred vertically and horizontally.
Double symbol: The double symbol is reproduced in the upper and lower areas of the rectangular key, centred horizontally.
Lighting
Scenarios
Indicators (single)
Indicators (double)
