System architecture

Discover the Ekinex ecosystem for buildings and hospitality facilities

Ekinex offers a complete range of systems for the automated management of residential, commercial and hospitality buildings, based on the KNX standard. At the heart of this architecture is Delégo, the supervision server that allows you to control lighting, climate, motorisation, energy and security, both locally and remotely, through an intuitive interface accessible from smartphones, tablets, PCs and dedicated touch-screen panels. For specific requirements, such as access control in accommodation facilities, Ekinex offers scalable solutions: from standalone configurations for small environments to complete integration with Delégo and the Accédo module, ideal for medium-sized hotels and B&Bs. Discover how the Ekinex system architecture can be adapted to your needs, ensuring efficiency, security and an unprecedented user experience.

Guest Room Comfort and Integration

KNX-based in-room automation allows lighting, climate and shading to be effortlessly controlled with a single touch or preset scenarios.

Central Reception and Facility Management

Real-time monitoring of all room states, PMS integration, card and mobile credentials from one centralized workstation.

01 / 04System Architecture

Standalone access control solution

Standalone access control solution for private homes and small businesses.

Standalone Access Control Connection Diagram

Key Features	Functions	Access Technologies	Products	App & Software
Stand alone system, no need for external controller Ideal for residential and small retail projects Easy Installation Multiple access technologies All configuration & management from Dico App Ekinex Cloud Connection	•Intercom (only with Dico) •Access Control	QR Code PIN Code	EK-CLD-VICloud license for apartment EK-ACC-KEY-IPAccédo key EK-5DP-VIIP Dico door phone	DICO App for owner

Key Features

Stand alone system, no need for external controller
Ideal for residential and small retail projects
Easy Installation
Multiple access technologies
All configuration & management from Dico App
Ekinex Cloud Connection

Functions

•Intercom (only with Dico)
•Access Control

Access Technologies

QR Code

PIN Code

Products

EK-CLD-VICloud license for apartment

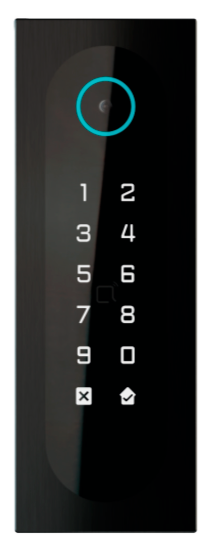

EK-ACC-KEY-IPAccédo key

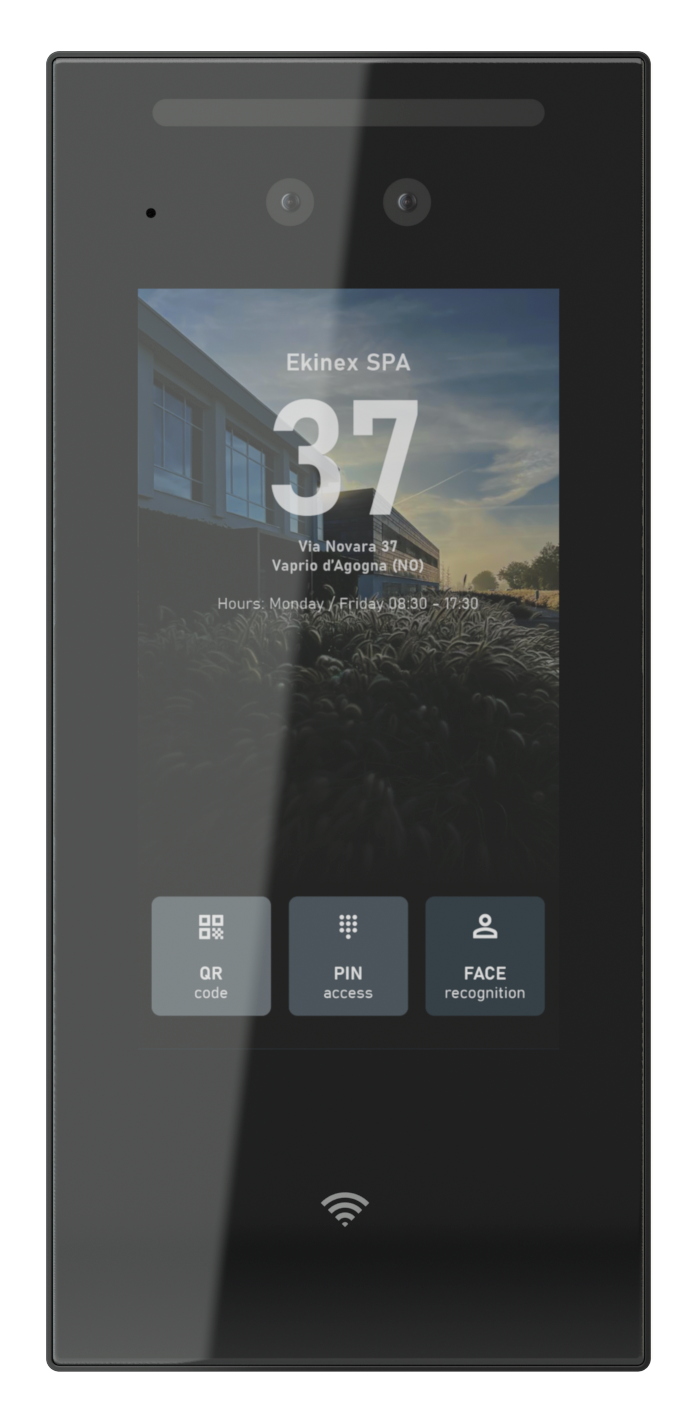

EK-5DP-VIIP Dico door phone

App & Software

DICO App for owner

Residential

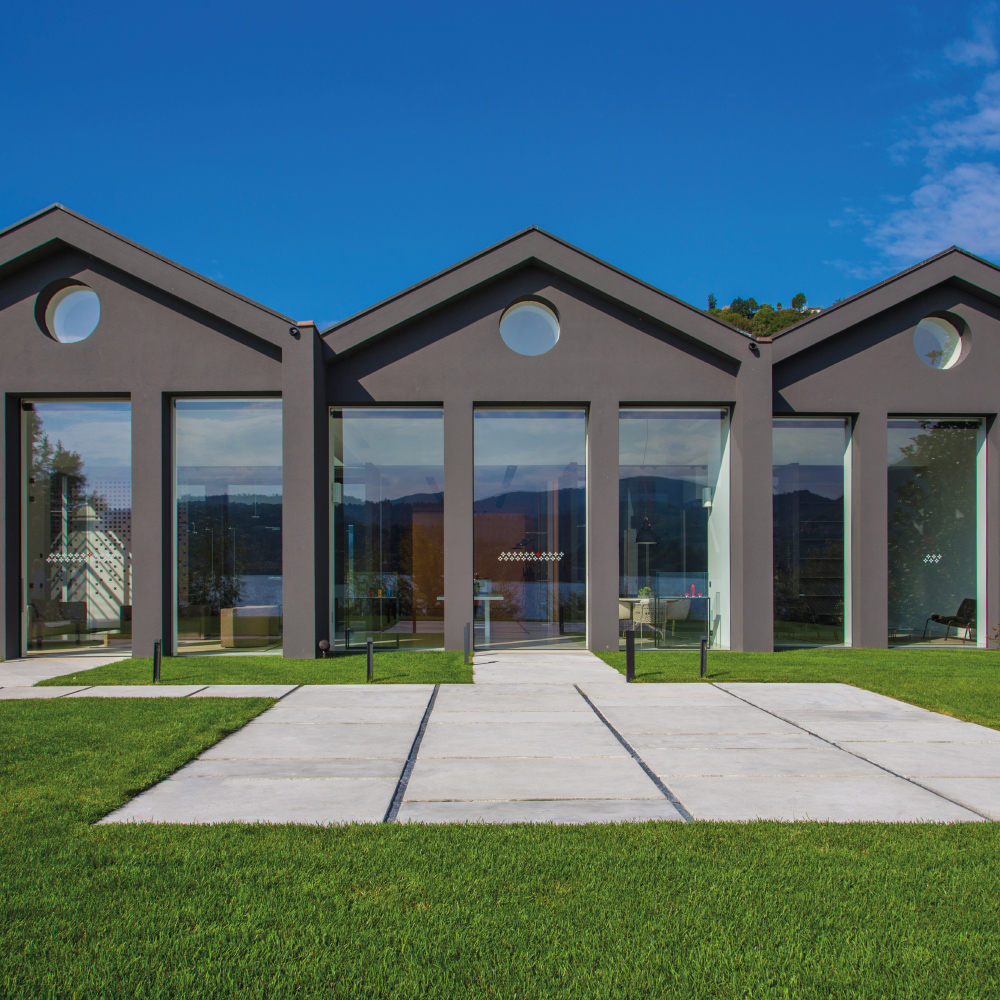

Retail and Offices

02 / 04System Architecture

Delégo solution for access control

Delégo Server with integrated Accédo module, the perfect solution for small and medium-sized B&Bs and hotels.

Delégo Access Control Connection Diagram

Key Features	Functions	Access Technologies	Products	App & Software

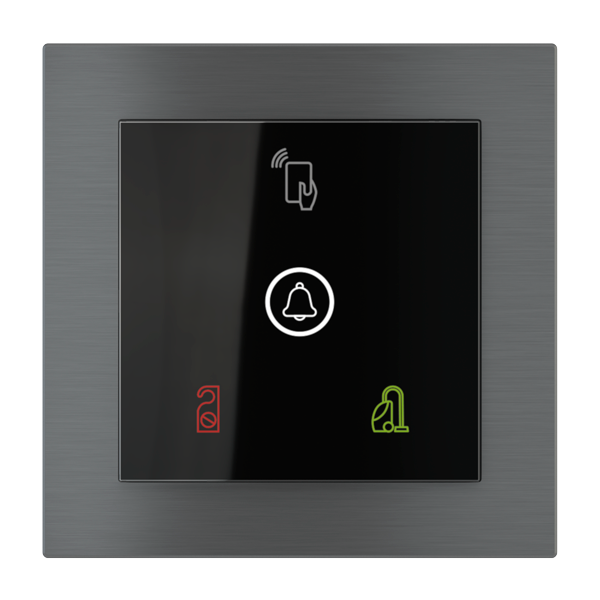

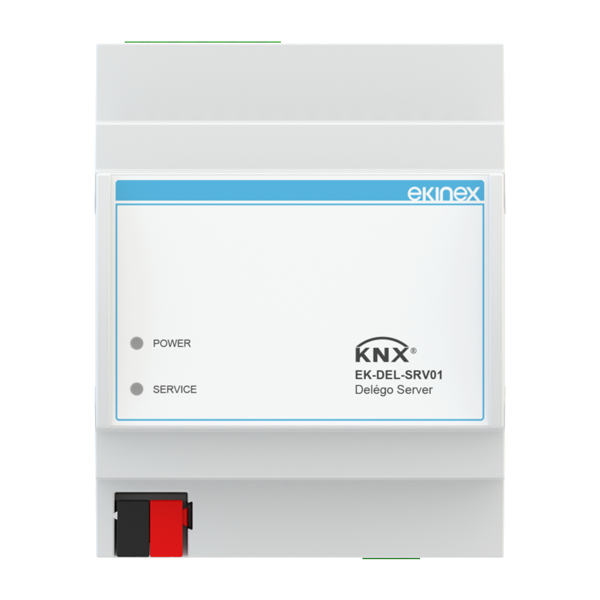

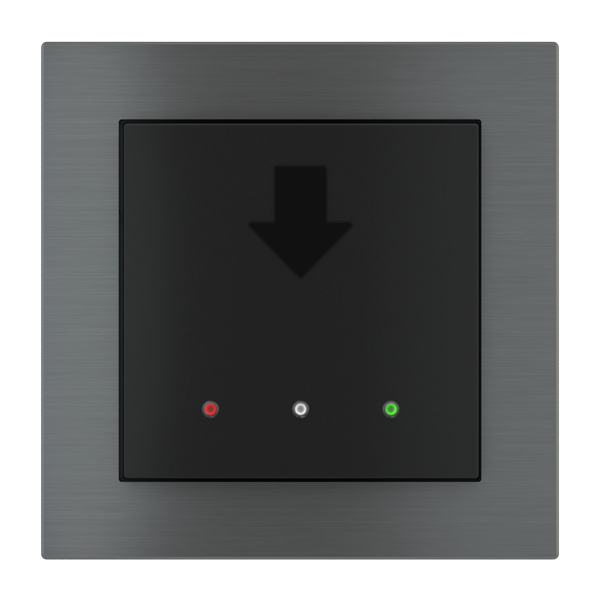

All configuration and management by Delégo Ideal for small and medium-sized projects (up to 50 rooms) Access control and building automation all in one Multiple access technologies Ekinex GO app for guests Local or remote management	•Access Control •Lighting, temperature, shading and scene control •Virtual presence detection •PMS integration •Energy monitoring •Notifications	QR Code PIN Code RFID Code Guest App	EK-ACC-UPG01Accédo upgrade (4 rooms) EK-ACC-UPG02Accédo upgrade (50 rooms) EK-ACC-UPG03Accédo upgrade (100 rooms) EK-DEL-SRV01 / EK-DEL-SRV01-MDelégo Server / Delégo mini EK-TO2-TPAccédo Card Reader EK-TI2-TPAccédo Card Holder EK-ACC-KEY-IPAccédo key EK-5DP-VIDico IP Video door phone	Delégo App for owners Ekinex GO App for guests
