ekinex

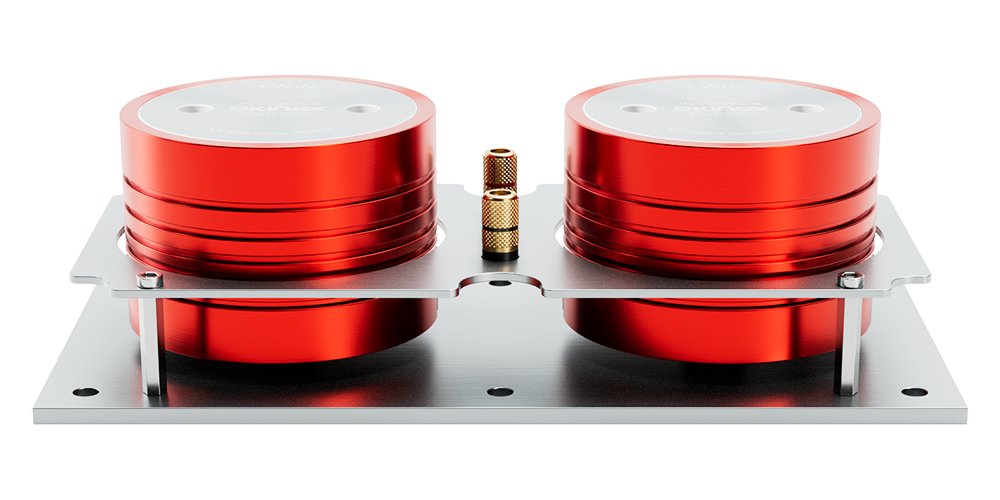

Invisible TWIN

Product Description

Invisible TWIN represents the cutting edge of our acoustic energy transmitters. Designed to improve response in both low and high frequencies, it provides increased power, dynamics and sonic accuracy. Also ideal for audio-video systems, with a nominal impedance of 8Ω, Invisible TWIN facilitates the operation of commercial AV receivers by reducing operating temperatures and improving efficiency.

Made of the highest quality materials, the base is 3 mm thick AISI 304 stainless steel, while the bodies of the two transmitters are AW 6082 aluminum, known for its balance of workability and strength, thanks in part to anodizing that prevents degradation over time and improves heat dissipation. The eight internal nylon and steel suspensions, together with dual thermal and electrical protections, ensure long service life and reliability.

Invisible TWIN takes advantage of the characteristics of a wide range of materials to which it can be applied, such as plasterboard, wood, glass, e-bond, plexiglass, fiberglass and carbon fiber, aluminum, and many others. It can reproduce audio signals either omnidirectionally or directionally, depending on the installation.

The two integrated transmitters are different but complementary, optimized to provide a superior audio experience. Listening tests, conducted with in-wall plasterboard back-boxes, showed amazing performance, outperforming conventional listening systems.

Invisible TWIN offers a frequency response extending from 40 Hz up to 15,000 Hz, ensuring exceptional sound quality tested at every stage of the production process. The completely invisible installation matches perfectly with the EK-PW1-AU amplifier, specifically designed to maximize system performance.

Technical Specifications

Nominal Impedance8 Ω
Frequency Response40 - 15,000 Hz nominal
Maximum Power240 W
Maximum Power (RMS)80 W
Height46 mm
Contact Plate Dimensions160 x 80 mm
Base Material3 mm AISI 304 Stainless Steel
Body MaterialAW 6082 Anodized Aluminum
Suspension System8 Internal Nylon and Steel Suspensions
Integrated ProtectionDual Thermal and Electrical Protection
Weight880 g
Color / FinishRed and Gray

Application & Integration Advice

Wide Surface Compatibility: Creates high acoustic resonance with plasterboard, wood, glass, composite e-bond, plexiglass, aluminum and fiberglass.
Dual Complementary Transducers: Two integrated drivers work in synergy to deliver punchy low-end and crystal-clear high frequencies simultaneously.
8 Ω Commercial AV Receiver Support: 8-ohm nominal impedance facilitates effortless pairing with AV receivers while lowering thermal loads.
System Pairing: Recommended for use with the dedicated Ekinex EK-PW1-AU streaming amplifier for maximum dynamics and system protection.

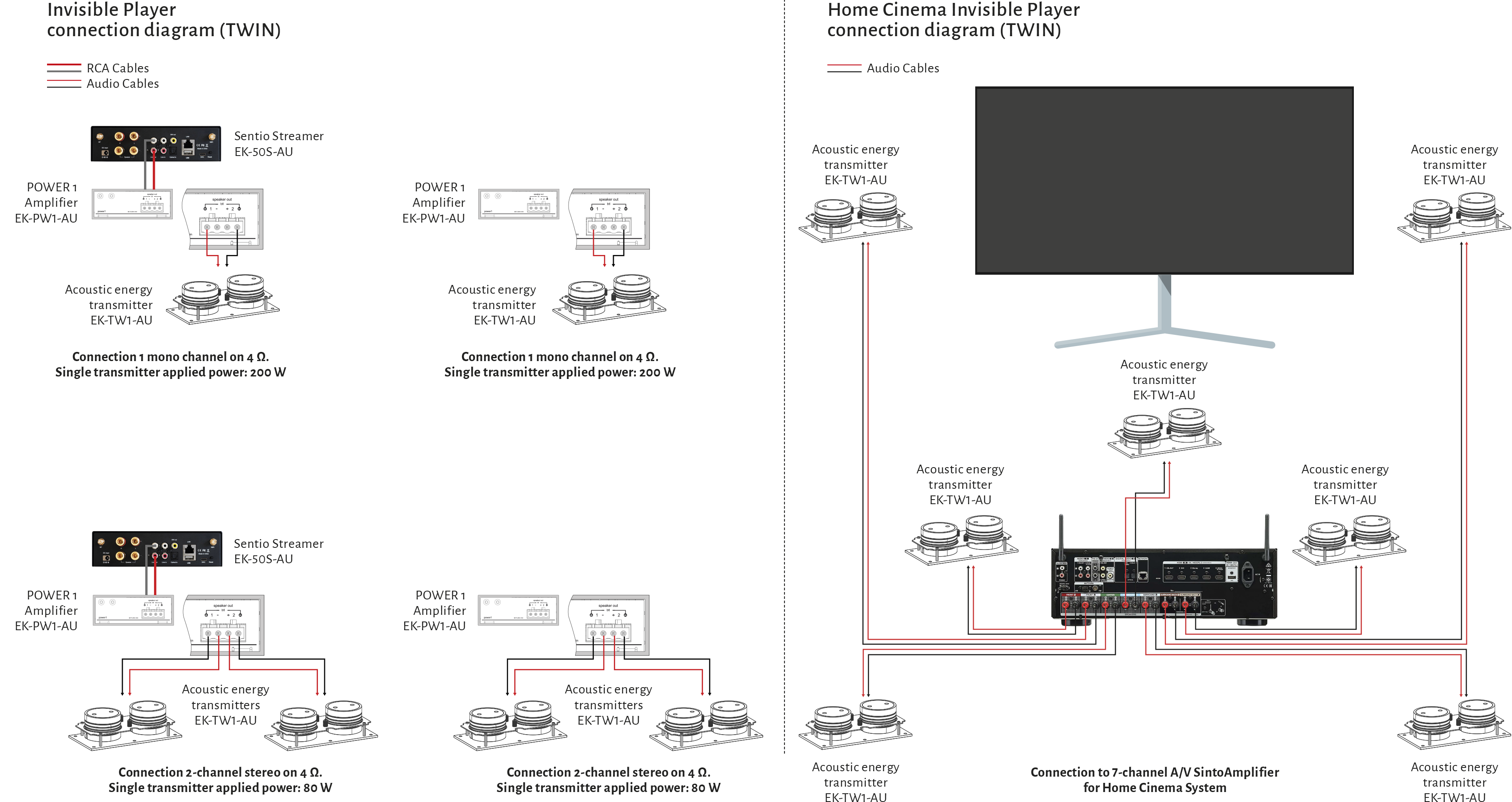

Connection Diagram

Ekinex Invisible TWIN Connection Diagram

Documentation

Download official datasheets, installation instructions and certificates.

Technical Data Sheet

FISPEKTW1AUIEX00 • PDF • 6.1 MB

Download

Accessories Instructions

FISPEKACCAUIEX00 • PDF • 1.5 MB

Download

CE Conformity Declaration

CEEKWALLPLAYER • ZIP • 949.1 KB

Download

UKCA Statement

UKCAEKTW1AU • PDF • 434.4 KB

Download

Technical Drawing (CAD)

DSEKTW1AU • DXF • 973.7 KB

Download
