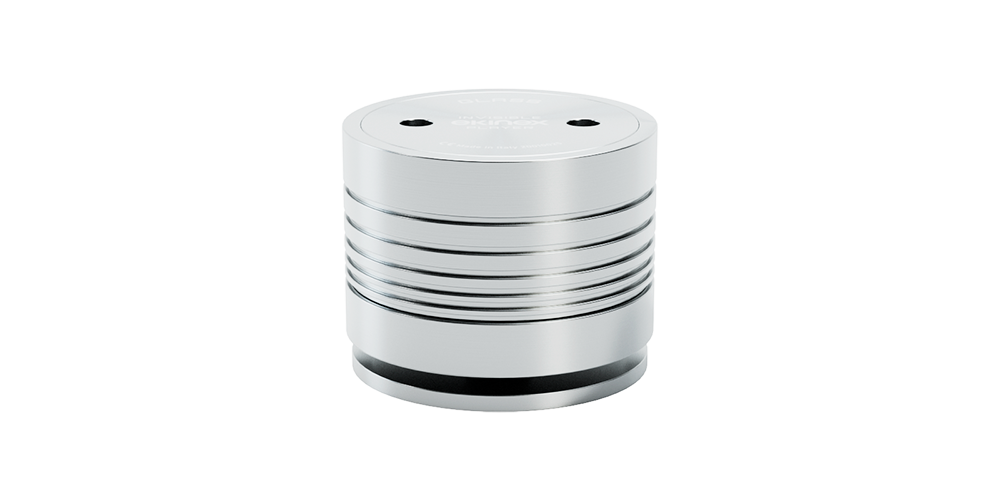

Invisible Glass

Description

Invisible Glass is an acoustic energy transmitter made from the highest quality materials, designed to deliver excellent audio performance on glass surfaces. The AW 6082 aluminum body provides the perfect balance of precision workmanship, anodization for durability, and optimal heat dissipation. Internal nylon and steel suspensions, combined with triple thermal and electrical protection, ensure long life and protection against failure.

Invisible Glass is specially designed to transmit sound through glass walls, making store or business windows capable of emitting music or promotional messages both inside and outside the premises. In addition to glass, Invisible Glass can be installed on non-porous materials such as E-bond, T-bond, plexiglass, lexan and fiberglass, with a maximum thickness of 12 mm.

For a perfect installation, the EK-CGL-AU Coverglass accessory (not included) is available, which allows Invisible Glass to be fixed at the right distance from the edge of the display case and hide the cable elegantly and discreetly. For maximum performance, we recommend combining Invisible Glass with the specially designed EK-PW1-AU amplifier.

Functions and Features

Impedance4 Ω
Frequency Response40 - 14,000 Hz nominal
Maximum Power120 W
Maximum Power (RMS)40 W
Height46 mm
Diameter57 mm
Contact Plate DiameterØ 55 mm
Weight290 g
ColorGray

Surface and Mounting Compatibility

Glass surfaces: Optimized acoustic tuning for commercial display windows, glass office partitions, and architectural glazing.
Non-porous composites: Applicable on E-bond, T-bond, plexiglass, lexan, and fiberglass up to a maximum thickness of 12 mm.
Bi-directional acoustic dispersion: Resonates window glass to project uniform sound both inside the space and toward outdoor pedestrian zones.
Dedicated mounting accessory: Seamless compatibility with EK-CGL-AU Coverglass for aesthetic cable concealment and precise margin alignment.

Connection Diagram

Ekinex Invisible Glass Connection Diagram

Documentation and Downloads

Download official datasheets, installation instructions and certificates.

Instructions

FISPEKGL1AUIEX00 • PDF • 4.3 MB

Download

Accessories Instructions

FISPEKACCAUIEX00 • PDF • 1.5 MB

Download

CE Conformity Declaration

CEEKWALLPLAYER • ZIP • 926.9 KB

Download

UKCA Statement

UKCAEKGL1AU • PDF • 426.6 KB

Download

Technical Drawing (CAD)

DSEKGL1AU • DXF • 372.9 KB

Download
