Omni / Iride Series Speakers
Product code: EK-OMNI / EK-IRIDE
360-Degree Sound Dispersion and Integrated Architectural Illumination
Designed by Claudio Niorettini, the Omni and Iride series are exceptional architectural columns reproducing high-quality sound all around at 360° across indoor and outdoor spaces.
Original and efficacious, the Omni series reproduces high-quality sound all around at 360°. Outside, it can easily voice a circular area with a useful sound dispersion radius greater than 10 meters, offering uniform audio distribution across gardens and outdoor lounges.
In the Iride version, the column is equipped with an integrated 360° radial LED lighting device consisting of 6 high-efficiency LEDs. It combines atmospheric exterior illumination with pristine sound reproduction in a singular, sculptural treated-aluminum body.
Omni and Iride Series Models
Two floor-standing architectural columns designed for expansive 360° sound distribution with optional radial ambient lighting.
Omni Acoustic Column
75 W RMSFloor-standing column loudspeaker delivering continuous 360° sound distribution for gardens, terraces and living spaces.
- 75 W RMS continuous power and 88 dB sensitivity
- Useful 360° sound dispersion radius greater than 10 meters
- 130 mm FV-k woofer with 22 mm silk dome tweeter
- Weather-resistant treated aluminum body with epoxy powder coating
Iride Acoustic Column with Light
75 W RMS + 3 W LEDArchitectural column combining high-fidelity 360° music with radial LED illumination for exterior living environments.
- 75 W RMS hi-fi audio paired with 3 W radial LED ambient lighting
- Elegant pathway and terrace landscape illumination
- 220 Vac mains operation with included 12 Vdc driver unit
- Ideal for gardens, poolside areas, hotel decks and alfresco venues
Colours and Finishes
Treated aluminum body coated with epoxy powders or refined polished finishes for enduring outdoor performance and elegance.
Pure White Painted
Anthracite Painted
Omni / Iride Configuration and Ordering Matrix
Official order codes, finish variants and technical specifications.
| Order Code | Series | Acoustic Variant | Lighting | Frame Finish | Power (RMS) | Dimensions (Ø x H) |
|---|---|---|---|---|---|---|
| EK-OMNI-LB | Omni | Standard Acoustic (No Light) | Without Light | Pure White Painted Frame | 75 W RMS | Ø 130 x 1000 mm |
| EK-OMNI-LA | Omni | Standard Acoustic (No Light) | Without Light | Anthracite Painted Frame | 75 W RMS | Ø 130 x 1000 mm |
| EK-OMNI-AL | Omni | Standard Acoustic (No Light) | Without Light | Polished Aluminum Frame | 75 W RMS | Ø 130 x 1000 mm |
| EK-IRIDE-LB | Iride | With Integrated LED Lighting | 6x Radial LEDs (3 W) | Pure White Painted Frame | 75 W RMS + 3 W LED | Ø 130 x 1000 mm |
| EK-IRIDE-LA | Iride | With Integrated LED Lighting | 6x Radial LEDs (3 W) | Anthracite Painted Frame | 75 W RMS + 3 W LED | Ø 130 x 1000 mm |
| EK-IRIDE-AL | Iride | With Integrated LED Lighting | 6x Radial LEDs (3 W) | Polished Aluminum Frame | 75 W RMS + 3 W LED | Ø 130 x 1000 mm |
Technical Specifications Comparison
Acoustic, electrical and physical parameters across Omni and Iride models.
| Parameter | Omni (EK-OMNI) | Iride (EK-IRIDE - LED Işıklı) |
|---|---|---|
| Installation & Mounting | Zemin üstü flanş bağlantısı (İç / Dış mekan) | Zemin üstü flanş bağlantısı (İç / Dış mekan) |
| Acoustic System Type | 2 Yollu pnömatik süspansiyon | 2 Yollu pnömatik süspansiyon |
| Max Continuous Power | 75 W RMS | 75 W RMS (+ 3 W LED) |
| Nominal Impedance | 8 Ω (İsteğe bağlı 4 Ω veya 100 V) | 8 Ω (İsteğe bağlı 4 Ω veya 100 V) |
| Frequency Response | 50 Hz - 18 kHz | 50 Hz - 18 kHz |
| Crossover Frequency | 4 kHz (Faz uyumlu / Rephased) | 4 kHz (Faz uyumlu / Rephased) |
| Sensitivity (1W / 1m) | 88 dB | 88 dB |
| Sound Dispersion & Radius | 360° dairesel (10 metre üstü yarıçap) | 360° dairesel (10 metre üstü yarıçap) |
| Transducers (Drivers) | 130 mm FV-k woofer + 22 mm ipek kubbe tweeter | 130 mm FV-k woofer + 22 mm ipek kubbe tweeter |
| Integrated LED Lighting | Mevcut değil | 6 adet radyal LED (80 lm/W, 3 W, 220 Vac - 12 Vdc) |
| Housing Material | Epoksi toz boyalı işlenmiş alüminyum | Epoksi toz boyalı işlenmiş alüminyum |
| Connection Interface | Klemensli kablo bağlantısı | Klemensli kablo bağlantısı |
| Dimensions (Diameter x Height) | Ø 130 x 1000 mm | Ø 130 x 1000 mm |
| Weight | 4,8 kg | 5,2 kg |
| Supplied Accessories | Zemin sabitleme flanşı | Zemin sabitleme flanşı + 230 Vac güç kaynağı |
The Omni & Iride Outdoor Living Experience
Sculptural presence blending into architectural landscapes, expansive 360° sound coverage and refined radial illumination.

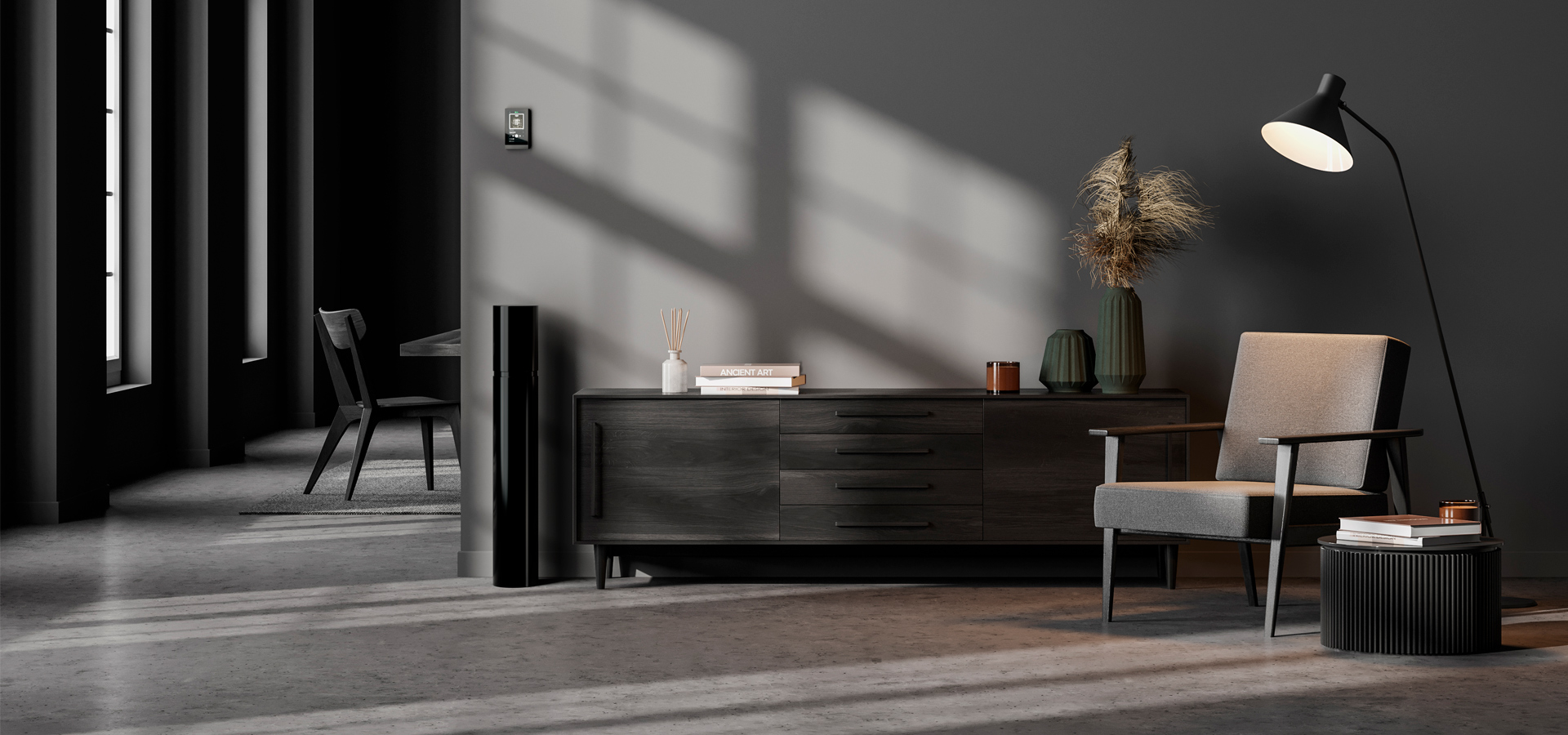

360-Degree Acoustic Envelopment Outdoors
Rich and dynamic soundstage reaching every corner of terraces, poolside decks and private gardens uniformly.
Technical Documentation
Official technical datasheet and installation guidelines for Omni and Iride series.
Omni / Iride Technical Datasheet
STEKSERIEOMNIIRIDE_v1_P.pdf • 380 KB • v1.0
