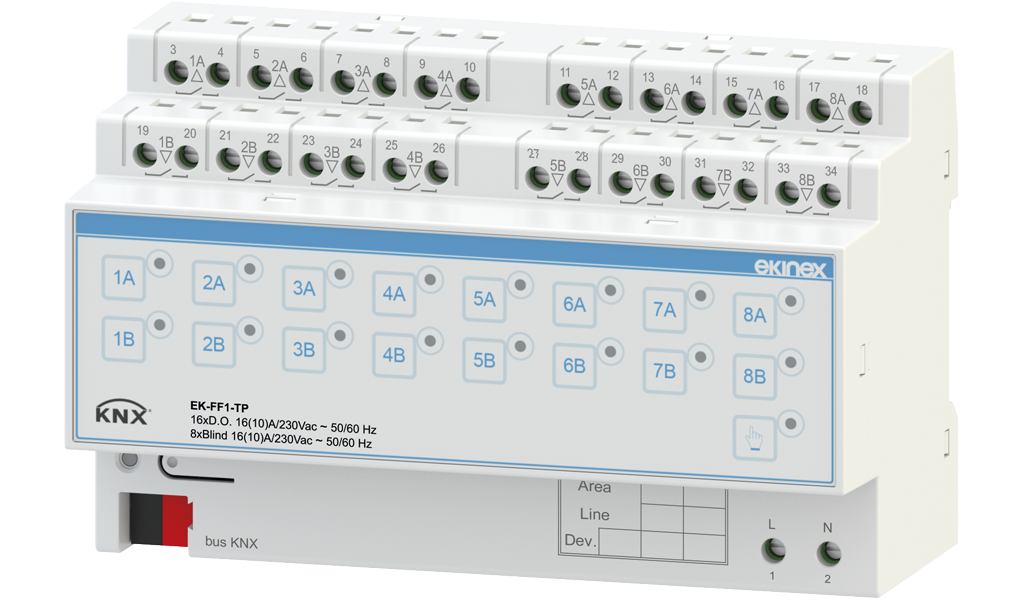

16-fold binary output / 8-fold blind actuator

Code: EK-FF1-TP

Phase Out

16-fold binary output / 8-fold blind actuator

Description

The Ekinex® EK-FF1-TP binary output / blind actuator allows to command 16 groups of loads or control 8 drives for motorised blinds independently. The device is fitted with membrane pushbuttons for manual command (even in the absence of bus power) and LED’s for status indication; a pushbutton allows to switch between automatic and manual operation modes. The device integrates a KNX bus communication module and is realized for mounting on a standard 35 mm DIN-rail. The device is supplied by the KNX bus and requires an additional 230 Vac power supply to operate.

Technical data

Power supply

•Voltage auxiliary 100-230 Vac 50/60 Hz
•Voltage control section 30 Vdc by KNX bus
•Current consumption from bus < 10 mA
•Power on bus < 240 mW

Outputs

•Number: 16 or 8 independent channels (depending on device use)
•Nominal voltage (Un): 100-230 Vac 50/60Hz
•Nominal current (In): max 16 (10) A (both @100Vac and @230Vac)
•Max. switched power: max 4000 VA @250Vac

Delivery

Delivery includes a terminal block for connection to the bus.

Functions / Characteristics

Plastic casing

Frontal programming pushbutton and LED

Membrane keyboard with LED’s for status indication

Pushbutton for switching operating mode (normal / programming)

Connection to bus line with KNX terminal block

Connection of outputs and 230 Vac power supply with screw terminals

Overvoltage class III (according to EN 60664-1)

Classification climatic 3K5 and mechanical 3M2 (according to EN 50491-2)

Pollution degree 2 (according to IEC 60664-1)

Installation on 35 mm rail (according to EN 60715)

8 modular units (1 MU = 18 mm)

IP20 protection degree (installed device)

Weight 595 g

Configuration and Commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKFF1TP##.knxprod (## = release).
