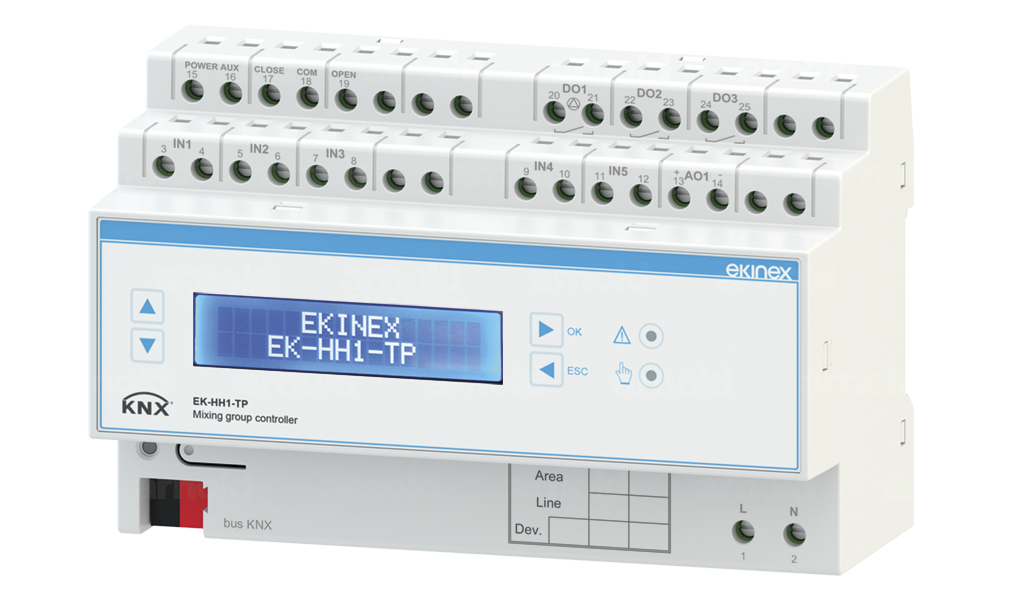

Mixing group controller

Code: EK-HH1-TP

Description

The Ekinex® EK-HH1-TP mixing actuator allows the control of 3 floating points or 0-10 V servo-motor for mixing valves. The flow temperature of the conveying fluid can be set at a fixed point, with external climatic compensation and with external climatic compensation plus internal conditions recalibration. The regulation modes are selectable separately for heating and cooling.

The device is particularly suitable for underfloor or ceiling heating and cooling radiant panels applications in combination with Ekinex® room thermostats with integrated temperature and humidity sensor. A 0-10 V output allows the remote setting of a heat pump temperature setpoint value. The startup function enables a radiant floors drying concrete phase according to EN 1264 standard.

The membrane keyboard allows the manual command and includes LED’s for status indication; the LCD-display allows displaying / setting of the main working parameters. The device integrates a KNX bus communication module and is realized for mounting on a standard 35 mm DIN-rail. The device is supplied by the KNX bus and requires an additional 230 Vac power supply to operate.

Technical data

Power supply

•Voltage (loads): 230 Vac 50/60 Hz
•Voltage (electronics): 30 Vdc by KNX bus

Inputs

•3 analogic exclusively for connection of NTC temperature sensors 10 kΩ at 25°C
•2 configurable as analogic (exclusively for NTC temperature sensors 10 kΩ at 25°C) or digital (potential free)

Outputs

•1 for control of a 3 point floating servomotor, 1 A, 250 Vac
•1 for control of a servomotor with 0-10 V signal connection of high impedance input
•3 for additional functions, relays 10(5) A, 250 Vac

Delivery

Delivery includes a terminal block for connection to the bus.

Functions / Features

Plastic casing

Frontal programming pushbutton and LED

Membrane keyboard with LED’s for status indication

LCD display for main operating parameters

Pushbutton for switching operating mode (normal / programming)

Connection to bus line with KNX terminal block

Connection of inputs, outputs and 230 Vac power supply with screw terminals

Classification climatic 3K5 and mechanical 3M2 (according to EN 50491-2)

Overvoltage class III (according to EN 60664-1)

Pollution degree 2 (according to IEC 60664-1)

35 mm rail mounting (according to EN 60715)

8 modular units (1 MU = 18 mm)

IP20 protection degree (installed device)

Weight 380 g

Configuration and commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKHH1TP##.knxprod (## = release).
