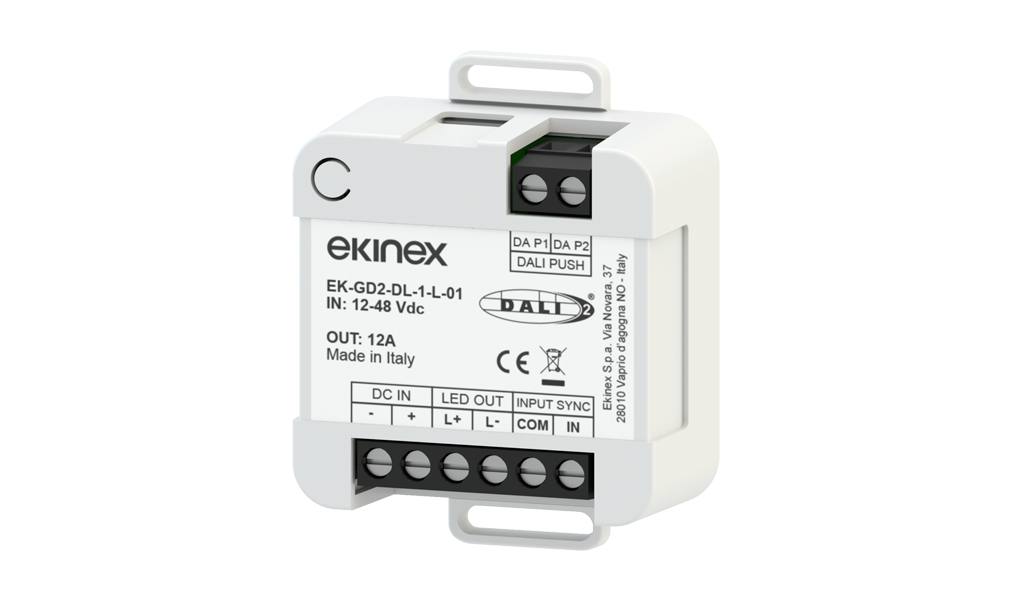

DALI Dimmer 12/48 Vdc 1 Channel Multifunction

Code: EK-GD2-DL-1-L-01

New

DALI Dimmer 12/48 Vdc 1 Channel Multifunction

Description

The EK-GD2-DL-1-L-01 device is a very low voltage 12, 24 and 48Vdc PWM dimmer suitable for controlling LED strips and PWM dimmable LED loads.

The dimmer can be controlled via DALI1 or DALI2 bus, push-button control (N/O - normally open) at mains voltage or 12/24/48 V mains voltage, 0-10V or 1-10V analogue signal from an active actuator (which generates a variable voltage between 0 and 10V) or passive actuator, 47kΩ linear potentiometer or presence sensor.

The operating modes of the EK-GD2-DL-1-L-01 dimmer can be selected via onboard dip-switches.

Technical Data

Inputs

Constant Input Voltage12 / 48 Vdc

Supply VoltageMin: 8 Vdc .. Max: 53 Vdc

ControlDALI2 / 0-10V / 1-10V push / potentiometer / switch / sensor / phase cut

Outputs

PWM Voltage Output12 / 24 / 48 Vdc

Output Current12 A

Outputs1

Nominal Power120 W @12V, 288 W @24V, 576 W @48V

Load TypeSingle colour Dimming

PWM Frequency390 Hz - 3000 Hz

Dimming

The graph shows the phenomenon of flickering as a function of frequency, measured across the entire dimming range. The results show the low-risk zone (yellow) and the zone with no observable effect (green). Defined by IEEE 1789-2015.

Functions / Features

Dimmer with isolated push input, active and passive potentiometer / 0-10V / 1-10V, switch, sensor, phase cut, DALI2 DT6 and DALI2 DT6 high compatibility for voltage-current converters

Master/slave functionality

Programmable timed ignition

Menu for minimum dimming change, fade ON-OFF, curve type and frequency setup ('flicker-free') accessible via input button

Signalling LED for identifying correct power supply

Protection against: polarity reversal, short circuit, open circuit, voltage spikes

UL Printed Circuit Board

Configuration and Commissioning

The assembly, electrical connection, configuration and commissioning of the device may only be carried out by qualified personnel in compliance with the applicable technical standards and laws in force in the respective countries.
