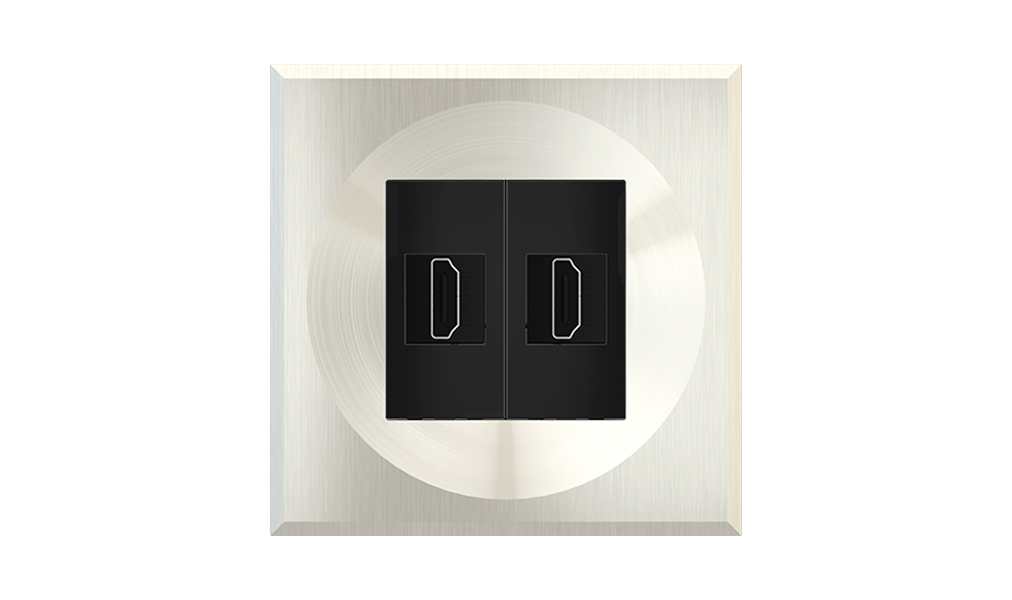

ERA Series Keystone Holder - 2 Modules
The ERA series 2-module Keystone holder is designed to accommodate two different data or multimedia connections side by side within the same flush-mounting point. Featuring a robust anthracite grey (RAL 7016) inner core and finely crafted ERA metal magnetic plates, it delivers superior aesthetics and high functionality.
Compatible Keystone Modules
High-quality data, video, audio, and charging connectors compatible with ERA Keystone holder:

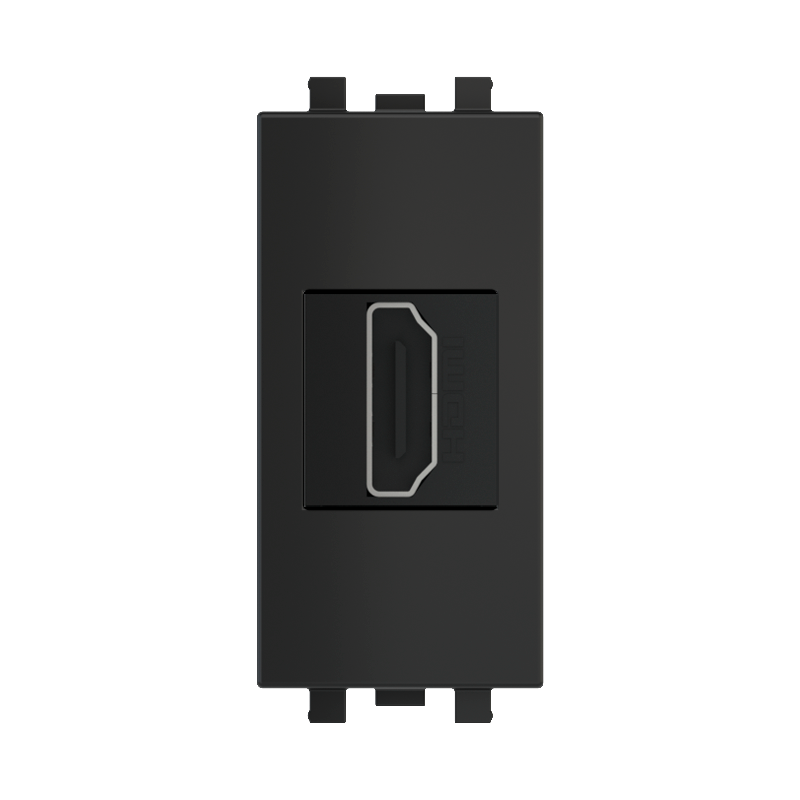

HDMI Socket/Socket
Black (White version: EK-KSM-HDMI-WH)

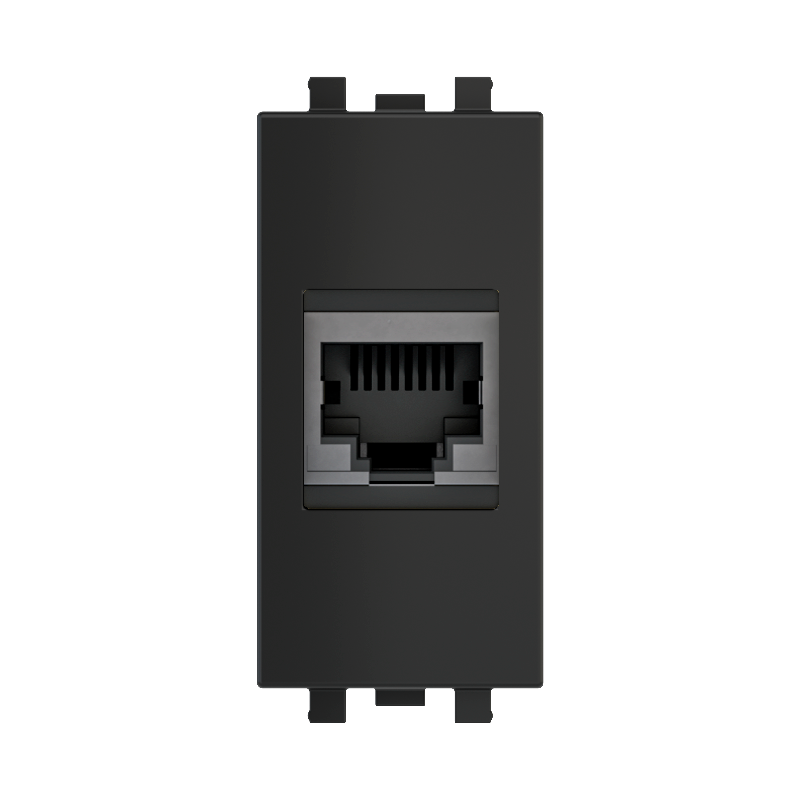

RJ45 Plug Cat.6 UTP
Black (White version: EK-KSM-RJ45-WH)

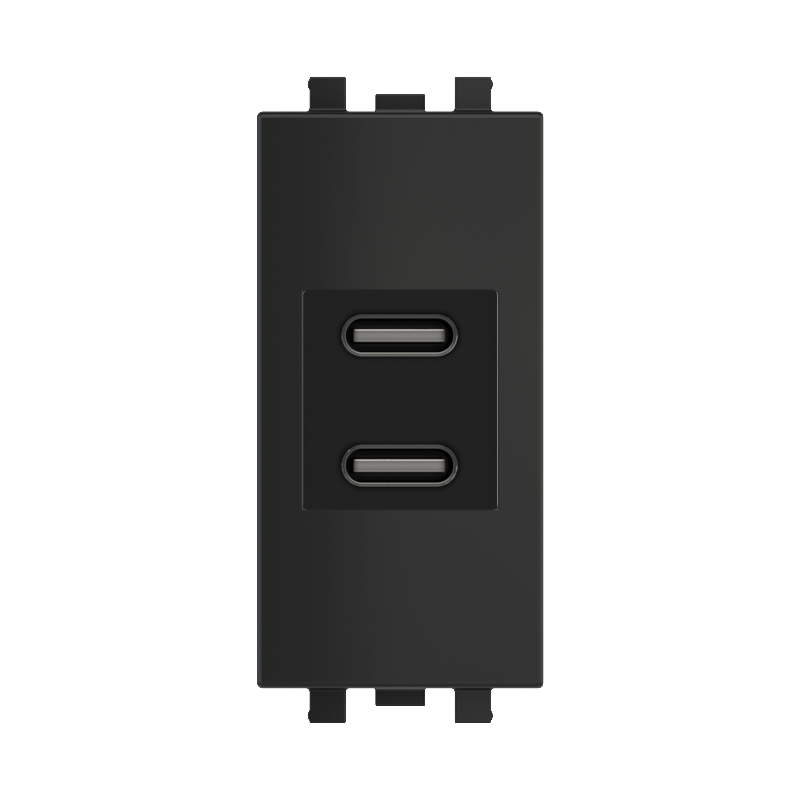

Double USB-C Socket 20W
Black

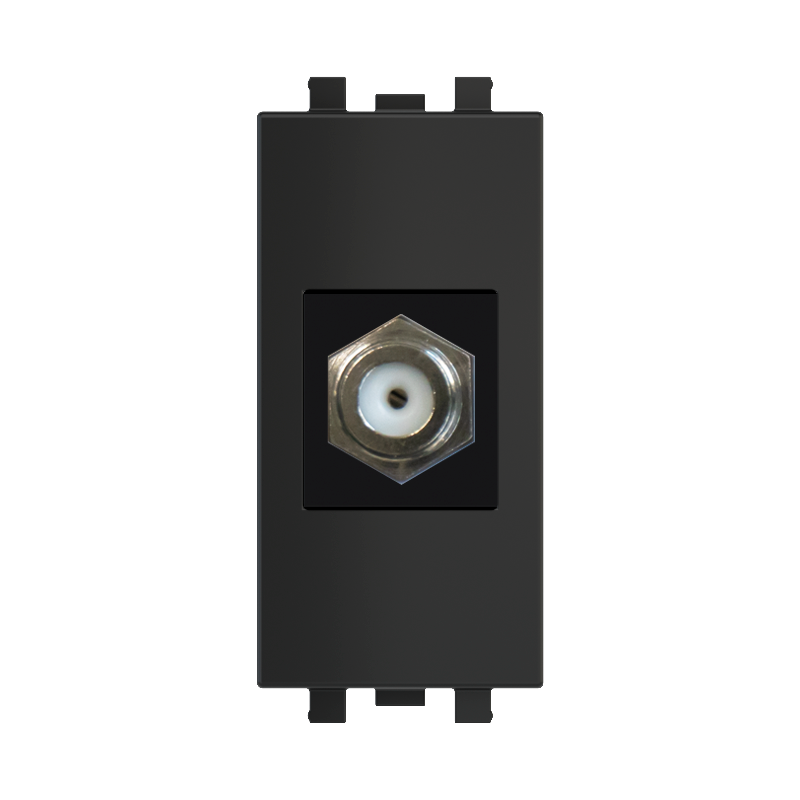

TV-SAT Coaxial Socket F-Socket
Black (White version: EK-KSM-TVF-WH)

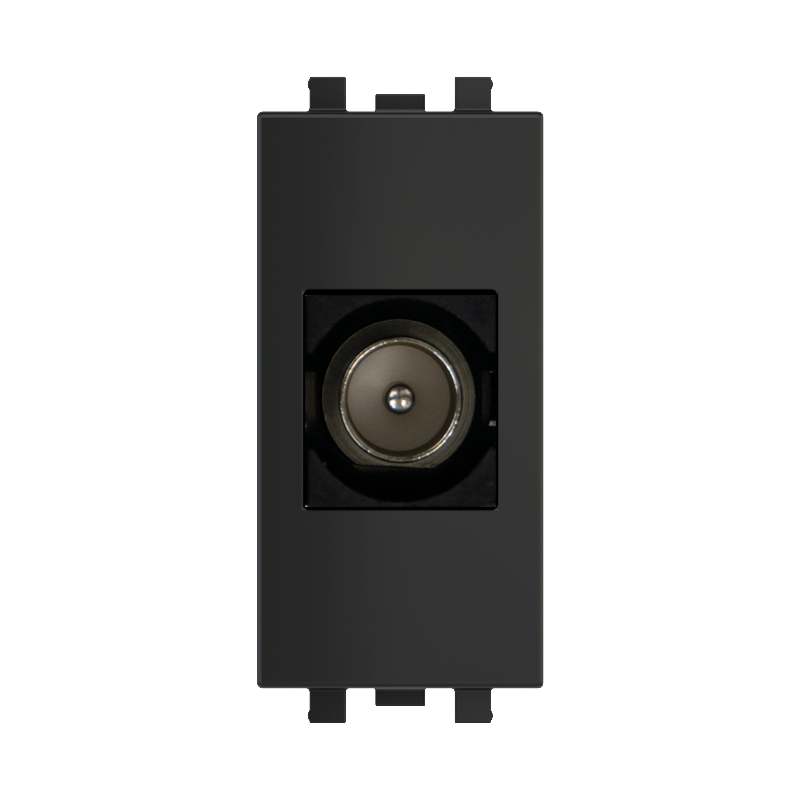

Coaxial TV Socket IEC Plug
Black (White version: EK-KSM-TVM-WH)

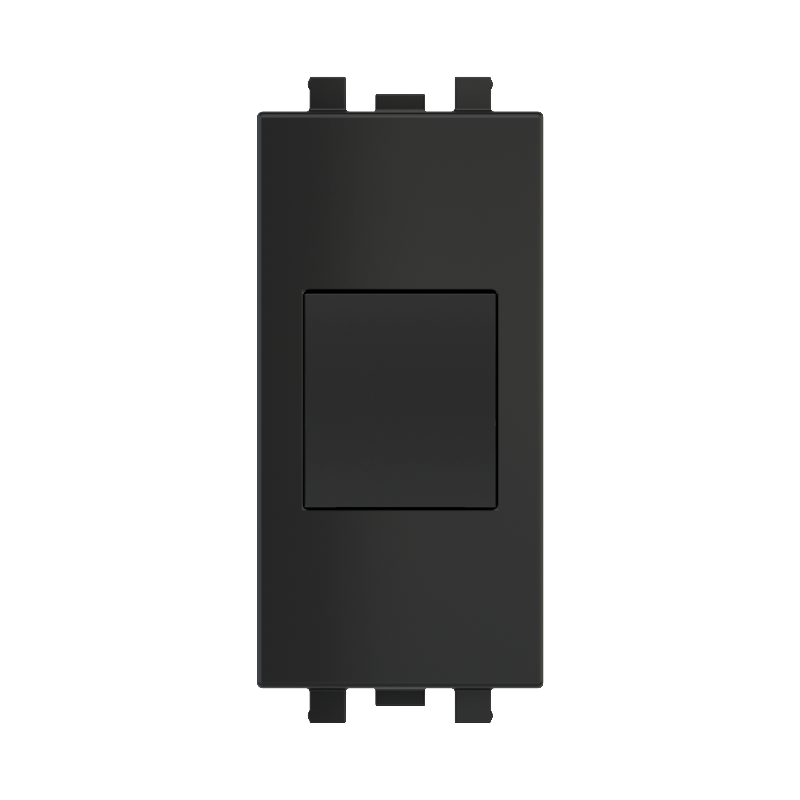

Blanking Plug
Coordinated painted finish
Design and Model
The design of the ERA series is registered as a design and model in Europe and China, protecting Ekinex's unique style and identity internationally.
EUIPO (European Union Intellectual Property Office)
EU design and model no. 015052304
CNIPA (China National Intellectual Property Administration)
CN design and model no. 2024302747663
Functions and Features
- 2 independent standard Keystone module housing slots
- Side-by-side combination of HDMI, RJ45, USB-C or TV-SAT in one box
- Mounting on standard round or square flush-mounting wall box
- Toolless precision plate assembly via magnetic fixing system
- Registered design in Europe (EUIPO No. 015052304) and China (CNIPA No. 2024302747663)
Technical Data
| Module Capacity | 2 standard Keystone modules |
| Housing Material | Technopolymer (RAL 7016 Anthracite Grey) |
| Front Plate Material | Solid Brushed / Anodized Metal |
| Mounting Box | Round or square flush-mounting box (fixing distance 60 mm) |
| Operating Temperature | -5 °C to +45 °C |
| Protection Degree | IP20 (according to EN 60529) |
Complementary Accessories
The following accessories must be ordered separately for complete installation:
| Accessory Description | Order Codes |
|---|---|
| ERA Double Magnetic Plate (Window 45x45 mm) | EK-DEA-P-SSB | EK-DEA-P-SBV | EK-DEA-P-GWB | EK-DEA-P-GBD |
| Mounting Bracket (71 mm axis) | EK-SMP-71-1 |
| Compatible Keystone Modules | EK-KSM-HDMI-BL | EK-KSM-RJ45-BL | EK-KSM-2USBC-BL | EK-KSM-TVF-BL | EK-KSM-TVM-BL |
Technical Documentation
Installation instructions, safety guidelines, and international declarations of conformity:
Talimatlar
Keystone Holder Mounting Instructions
FISPEKKST1KEXX00 • v. 1.0 • 545 KB
HDMI Keystone Module Instructions
FISPKSMHDMIXX00_P • v. 1.0 • 693.3 KB
RJ45 Ethernet Keystone Module Instructions
FISPKSMRJ45XX00_P • v. 1.0 • 872.8 KB
Dual USB-C Charger Module Instructions
FISPKSM2USBCIEX0_P • v. 1.0 • 1.1 MB
TV-SAT Coaxial Keystone Instructions
FISPKSMSATFXX00_P • v. 1.0 • 536.8 KB
TV IEC Keystone Instructions
FISPKSMTVMXXX00_P • v. 1.0 • 554.4 KB
CE Uygunluk Beyanı
Keystone Holder CE Declaration of Conformity
CEEKKST1K_v1 • v. 1.0 (03/03/2026) • 309.6 KB
UKCA Beyanı
UKCA Statement of Conformity
UKCADCEKPWXKSX_v.2 • v. 2.0 (23/07/2026) • 230.5 KB
