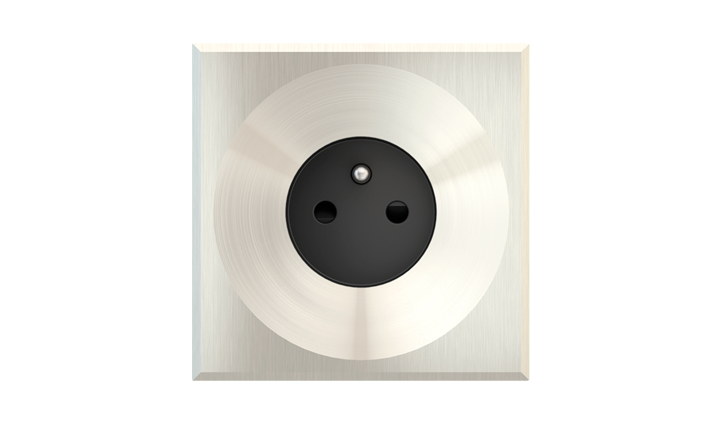

Power socket - FR
EK-PWT-FR
French and Belgian standard 2P+E 16 A pin earth socket outlet with ERA series metal faceplate. Screw terminals and child protection shutters.
Finish & MaterialMetal: Steel Brushed - SSB
Made in Italy
4 Metal Finishes
Safety Shutters
Architectural Form & Safety Integration
Tailored for French, Belgian, and relevant international markets with pin-earth configuration, this socket coordinates seamlessly with ERA's refined chamfers and premium metal finishes for luxury residential and hospitality schemes.
Functions & Technical Features
French/Belgian standard pin earth 2P+E 16 A socket
250 V~ rated voltage
Screw terminal wiring
Child protection safety shutters
Solid metal ERA front plate
Technical Specifications
- Rated Voltage
- 250 V~
- Rated Current
- 16 A
- Standard
- French Type (NF C 61-314 / CEE 7/5)
- Connection
- Screw terminals
- Safety
- Child protection safety shutters
- Material
- Solid Metal (SSB, SBV, GWB, GBD)
- Protection Degree
- IP20
Compatible Accessories & Frame Options
- ERA Series Frame with Closed Frame
- EK-FOD-SSB | EK-FOD-SBV | EK-FOD-GWB | EK-FOD-GBD
- ERA Series Open Frame Frame
- EK-FOE-SSB | EK-FOE-SBV | EK-FOE-GWB | EK-FOE-GBD
Technical Documentation
Official installation manuals, conformity declarations and quality certifications.
