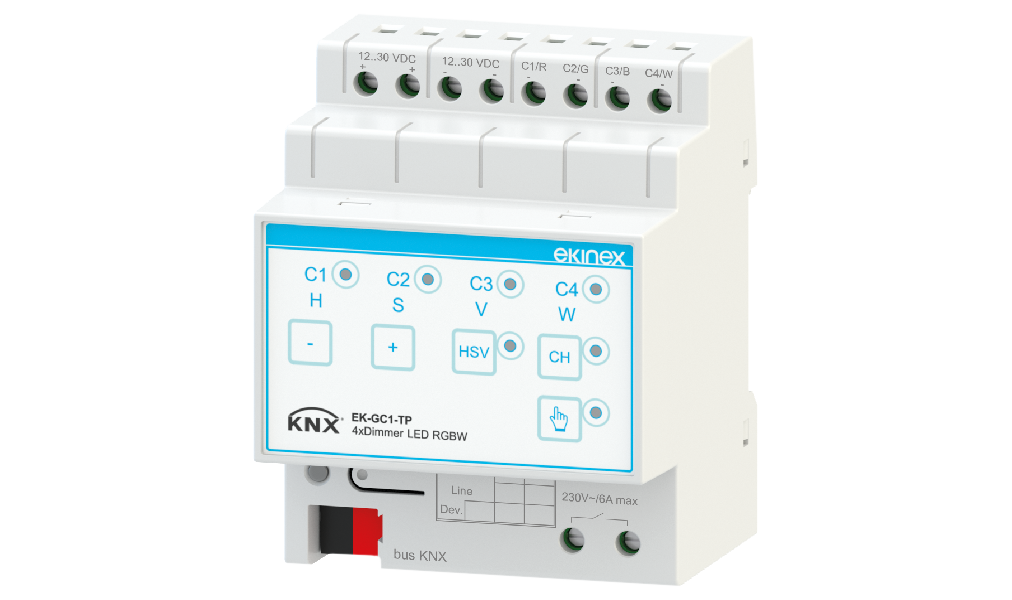

4 fold RGBW Led Dimmer

Code: EK-GC1-TP

Phase Out

Description

The Ekinex® EK-GC1-TP 4-fold RGBW LED dimmer allows to regulate independently the light intensity emitted by 4 LED strips at 12/24 Vdc or, alternatively, to regulate the light intensity and the colour emitted by a RGB or RGBW LED strip.

The device is suitable for use with LED strips powered at constant voltage. The selection of the colour can be made optionally in HSV or RGB mode. Scenarios, predefined sequences, sequence repetition and random functions are available; the dimming speed and the holding time are programmable.

The device is fitted with membrane pushbuttons for manual command and LEDs for status indication; a pushbutton allows the switching between automatic or manual operation modes. The device integrates a KNX bus communication module and is realised for mounting on a standard 35 mm DIN-rail. The device is powered by the KNX bus and requires an additional 12...30 Vdc to supply the controlled loads.

Technical Data

Inputs

Voltage (Strip LED)Max 30 Vdc, 16 A

Voltage (Control)30 Vdc by KNX bus

Outputs

Number of Channels4

Load Current per Channel4 A

Supply & Mounting

The device is powered by the KNX bus; an additional 12...30 Vdc is required to supply controlled loads. Terminal block included in delivery.

Functions and Features

Plastic casing

Frontal programming pushbutton and LED

Membrane keyboard with LEDs for status indication of outputs

Pushbutton for switching operating mode (normal / programming)

CH pushbutton for individual or simultaneous channels control

HSV / RGB pushbutton colour control mode

Auxiliary dry contact to disconnect load power supply during standby

Connection to bus line with KNX terminal block

Connection of outputs and 12-30 Vdc power supply with screw terminals

Installation on 35 mm rail (according to EN 60715)

4 modular units (1 MU = 18 mm)

IP20 protection degree (installed device)

Configuration and Commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKGC1TP##.knxprod (## = release).
