PIR Presence Sensor

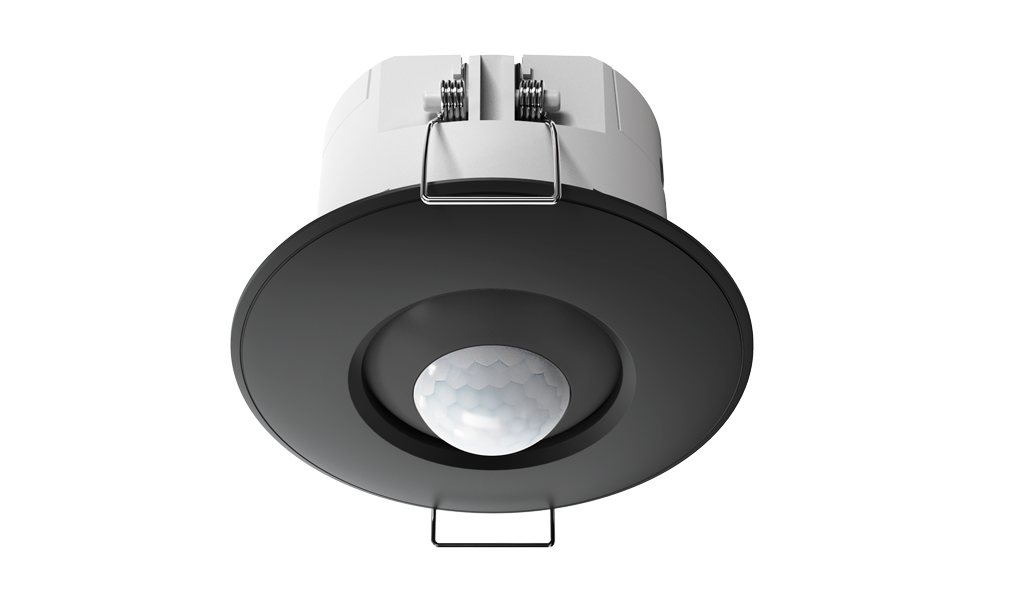

KNX Secure Multifunctional PIR Presence Sensor (Black)

EK-SG2-TP-M-B

Designed specifically for dark ceilings and contemporary architectural interiors, the black finish Ekinex KNX Secure PIR presence sensor simultaneously detects presence, ambient illuminance, relative humidity and room temperature. Features 4 independent lighting and climate channels, constant lux regulation, and advanced KNX Secure encryption.

Colour & FinishBlack

Made in Italy

KNX Secure

Compact Flush Design

Architectural Integration & Philosophy

With its refined matte black finish, the EK-SG2-TP-M-B blends seamlessly into industrial, loft or dark-themed ceiling concepts while delivering the highest automation standards. Its 360° coverage and multi-sensor architecture continuously monitor environmental comfort and reduce active building energy consumption.

Functions & Technical Capabilities

PIR technology with black directional lens for discreet detection

Up to 4 independent output channels for lighting and HVAC

Up to 3 brightness levels for entry and exit transitions

Automatic and semi-automatic operating modes

Integrated ambient lux sensor (0 - 2000 lux)

Built-in room temperature sensor

Built-in relative humidity sensor

Constant light regulation for smart energy saving

Thermoregulation and logic functions

Master / slave operation architecture

KNX Data Secure encryption protocol

Technical Specifications

Detection Technology: Passive infrared (PIR) with directional lens - Black Finish
Detection Range: 360° circular field, up to 15.5m diameter (at 6m height)
Installation Height: Approx. 2.5 m - 6.0 m
KNX Bus Power Supply: 21-30 Vdc via KNX bus line (SELV)
Current Consumption: 5.5 mA @ 30 Vdc
Illumination Range: 0 - 2000 lux
Body Diameter: Ø 48.5 mm
Outer Diameter: Ø 70 mm
Mounting Hole Diameter: Ø 53 - 55 mm
Recess Depth: 37 mm
Housing Material: Flame retardant thermoplastic (Matte Black)
Protection Degree: IP20 (according to EN 60529)
