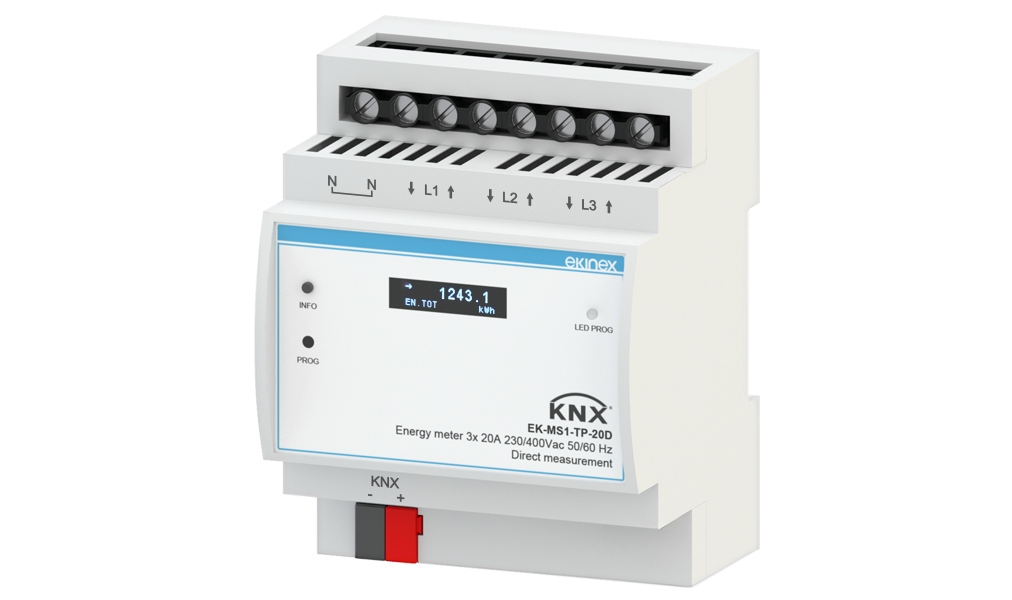

KNX three-phase secondary electricity meter

What cannot be measured, cannot be improved: Ekinex supports the energy efficiency of buildings with its Smart Metering solution. Ekinex's KNX 3-phase secondary electricity meter is a device for measuring active and reactive electrical energy with bidirectional counting for imported and exported energy, current, voltage, active and reactive power, power factor and other electrical parameters. The 3 available measurement circuits are for direct connection up to 20A and can also be used as independent single-phase. The device has an integrated communication module to the KNX bus.

The meter provides electrical parameters on the KNX bus, has total/partial counters, comparators and other logic functions, and is configurable via ETS for integration into the energy management system with functions such as load control or threshold monitoring. The device is made for DIN-rail mounting according to EN 60715 inside switchboards and control cabinets.
