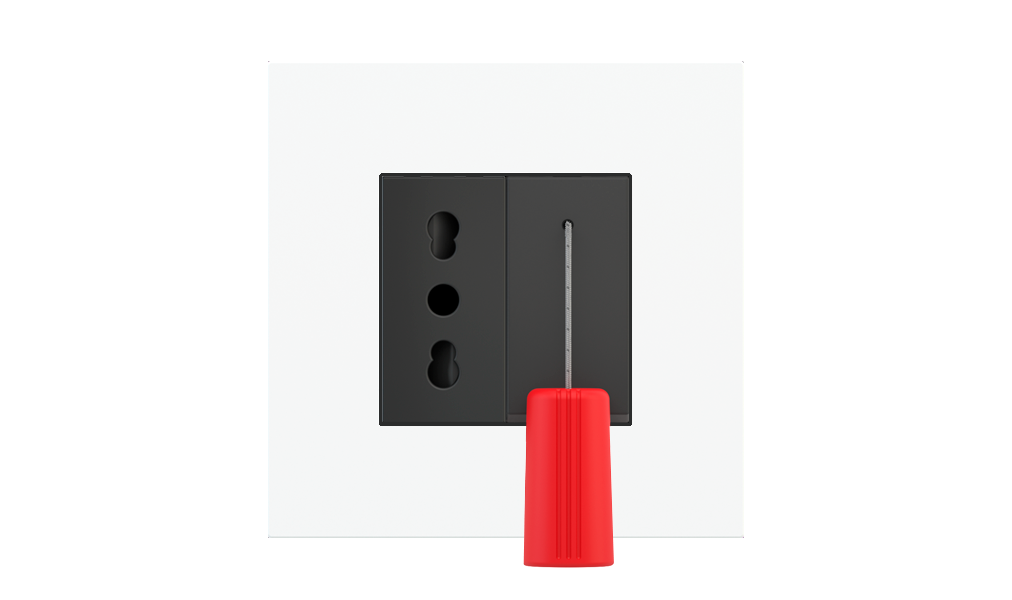

Wiring Device Modules for Square Plates (45x45 mm Window)
The Ekinex® Proxima wiring device modules for square plates with 45x45 mm window offer a combination of functionality and refined design, discreetly adapting to any environment. These modules are designed for the connection of domestic appliances with AC voltage up to 250 V~ and are equipped with shutter contact protection. They are mounted on a round or square wall box, with screw terminals for cables with a cross-section of up to 2.5 mm².
Architectural Narrative
The Ekinex® Proxima wiring device modules for square plates with 45x45 mm window offer a combination of functionality and refined design, discreetly adapting to any environment. These modules are designed for the connection of domestic appliances with AC voltage up to 250 V~ and are equipped with shutter contact protection. They are mounted on a round or square wall box, with screw terminals for cables with a cross-section of up to 2.5 mm².
Technical Specifications
| Product Family | Ekinex Proxima Modular Civil Series |
| Window Format | Square plate, 45 x 45 mm center window |
| Compatible Mechanisms | UNEL, Bipasso, 10A Italian, Schuko, French, British, Israeli, Multistandard sockets, buzzer, ringtone and hole cover |
| Rated Voltage | 250 Vac, 50/60 Hz |
| Maximum Current | 10A / 13A / 16A depending on mechanism |
| Terminal Connection | Screw terminals for cables up to 2.5 mm² |
| Mounting Standard | Flush mounting in round or square boxes via EK-SMP-71-1 holder |
Technical Documentation
Download official datasheets, installation instructions and certificates.
Technical Data Sheet - UNEL Italian Socket
FISPEKPWTITUEX00 • v.1.0 • 354 KB
Technical Data Sheet - 10A Italian Socket
FISPEKPWTIT10AX0 • v.1.0 • 332 KB
Technical Data Sheet - Bipasso Italian Socket
FISPEKPWTITBEX00 • v.1.0 • 331 KB
Technical Data Sheet - Schuko Socket
FISPEKPWTDEEXX00 • v.1.0 • 351 KB
Technical Data Sheet - Spring Schuko Socket
FISPEKPWTDESEX00 • v.1.0 • 356 KB
Technical Data Sheet - French Socket
FISPEKPWTFREXX00 • v.1.0 • 352 KB
Technical Data Sheet - Spring French Socket
FISPEKPWTFRSEX00 • v.1.0 • 357 KB
Technical Data Sheet - Israeli Socket
FISPEKPWTILEXX00 • v.1.0 • 349 KB
Technical Data Sheet - British Socket
FISPEKPWTUKEXX00 • v.1.0 • 350 KB
Technical Data Sheet - Multistandard Socket
FISPEKPWTUNEXX00 • v.1.0 • 355 KB
Technical Data Sheet - 230V Ringtone
FISPEKPWASNEXX00 • v.1.0 • 318 KB
Technical Data Sheet - 230V Buzzer
FISPEKPWARZEXX00 • v.1.0 • 318 KB
Technical Data Sheet - Button Puller
FISPEKPWTBGEXX00 • v.1.0 • 324 KB
Technical Data Sheet - Hole Cover
FISPEKPWACFEXX00 • v.1.0 • 298 KB
Technical Data Sheet - Magnetic Support
FISPEKPWIMGEXX00 • v.1.0 • 680 KB
CE Declaration - Italian Sockets
CEEKPWTITX_v2 • v.2.0 • 404 KB
CE Declaration - Schuko Socket
CEEKPWTDEX_v1 • v.1.0 • 326 KB
CE Declaration - French Socket
CEEKPWTFRX_v1 • v.1.0 • 312 KB
CE Declaration - Israeli Socket
CEEKPWTIL_v1 • v.1.0 • 311 KB
CE Declaration - UK Socket
CEEKPWTUK_v1 • v.1.0 • 308 KB
CE Declaration - Multistandard Socket
CEEKPWTUS_v1 • v.1.0 • 374 KB
CE Declaration - Button Puller
CEEKPWXBG1P2P_v1 • v.1.0 • 339 KB
CE Declaration - Magnetic Support
CEEKPWIMG_v1 • v.1.0 • 317 KB
UKCA Declaration - Wiring Modules
UKCADCEKPWXKSX_v.2 • v.2.0 • 231 KB
