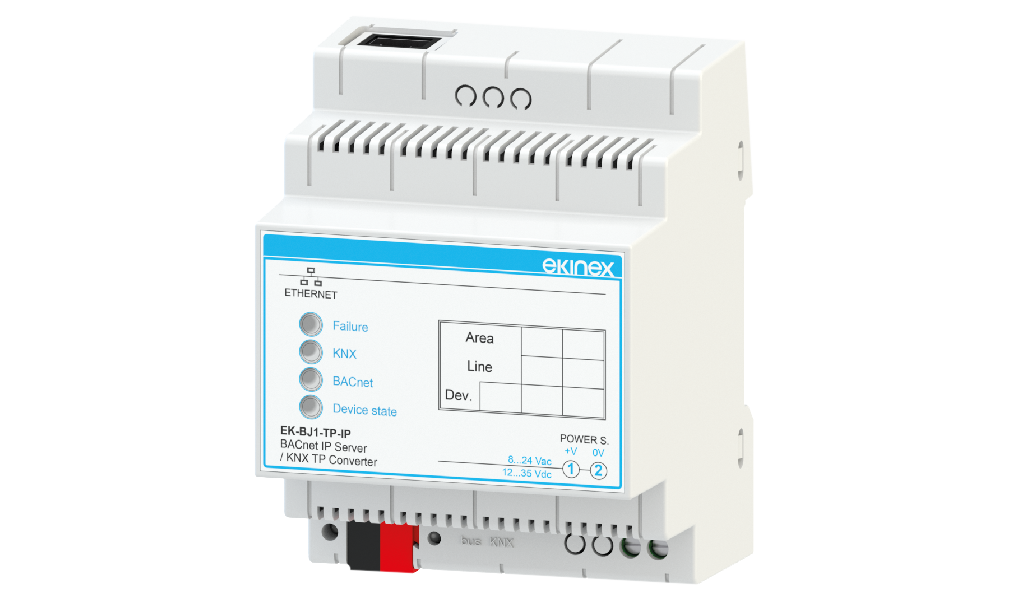

Gateway BACnet IP server - KNX

Code: EK-BJ1-TP-IP

Description

The Ekinex® BACnet - KNX Gateway performs a protocol conversion between a BACnet and a KNX TP network. Two versions are available: BACnet MS/TP over serial RS485 network and BACnet IP over Ethernet.

The device integrates a KNX bus communication module and it is suitable for mounting on a 35 mm DIN rail; it requires an auxiliary power supply (8...24 Vac or 12...35 Vdc).

The device functions as a BACnet server (slave) on the BACnet network, allowing Building Management Systems (BMS) and supervisory controllers to seamlessly monitor and control KNX building automation installations.

Other information

BACnet® is an ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers) trademark.

Technical data

Power supply

Power supply8...24 Vac or 12...35 Vdc

Absorption at 24 Vdc3.5 VA

KNX side communication

KNX portKNX TP (Twisted Pair) communication port electrically isolated from power supply

Memory buffer1440-byte volatile support 'KNX image' memory buffer

BACnet side (IP version)

Ethernet portEthernet communication port (IEEE 802.3), RJ45 connector, minimum cable category: 5E

Communication roleBACnet slave (server)

Data exchangeBACnet objects exchange

Memory buffer1440-byte volatile support 'BACNet image' memory buffer

Functions / Features

CasingPlastic casing

Modular units4 modular units (1 MU = 18 mm, total 72 mm)

InstallationOn 35 mm rail (according to EN 60715)

Weight145 g

Protection degreeIP20 (installed device)

Delivery

The delivery includes the device and terminal blocks to connect to the KNX bus.

Functions / Features

Bidirectional protocol conversion between BACnet IP and KNX TP

BACnet server (slave) function for seamless BMS and SCADA integration

BACnet objects mapping with KNX communication objects

High-speed Ethernet RJ45 network interface

4 modular units (72 mm) plastic casing for 35 mm DIN rail (EN 60715)

Standard KNX bus connector and screw terminal power connections

Configuration and commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require the application software CGEKBJ1TPIP.exe
