Touch & Control 4”

EK-EI2-TP-4

4”

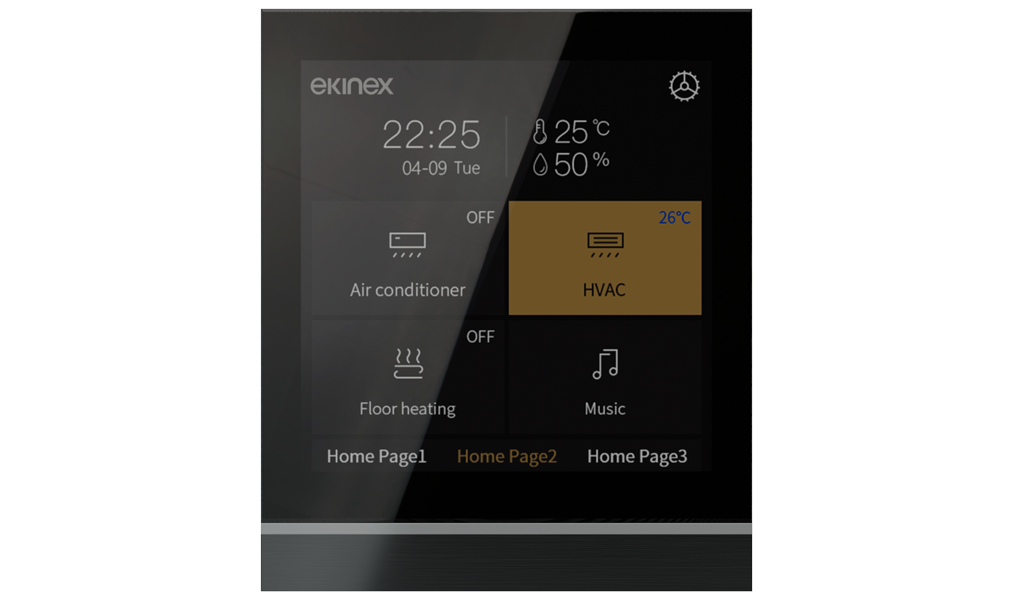

Engineered to blend seamlessly into any architectural space, the KNX Touch&Control 4'' display is a consummate combination of design and technology. It provides users with a comprehensive range of KNX functions to control one or multiple rooms. The device features an LED strip for night orientation or alarm signaling; paired with an integrated proximity sensor, the display wakes up automatically on approach. Dedicated intuitive widgets are provided for lighting, dimming, RGB/RGBW, motorised shutters, multiroom audio, HVAC, indoor air quality monitoring, and 4 independent temperature control zones.

Colour Selection:Black

4 Thermostat Zones

IPS Touch Display

Proximity Sensor

Made in Italy

Functions and Features

Switching and dimming functions for luminaires, motorised shutter control
Room thermostat function for 4 independent climatic zones
Control of room temperature, air conditioning, underfloor heating and ventilation
Multiroom audio control functions
RGB, RGBW, RGBCW brightness regulation and tunable white colour temperature
Indoor air quality display (PM2.5, AQI, CO2, VOC)
Energy monitoring parameters display: current, voltage, power and energy
8 timer functions, 8 scenario group functions
8 logic functions with AND, OR, XOR, threshold comparators and format converters
Integrated proximity sensor and haptic vibration touch feedback
Password protection, screen saver, and panel cleaning lock

Technical Data

Display Type	4-inch IPS colour capacitive touchscreen
Display Resolution	480 x 480 pixels
KNX Bus Power Supply	21-30 Vdc (Current consumption 4 mA @ 30 Vdc)
Auxiliary Supply (SELV)	12-30 Vdc (Current draw < 71 mA @ 30 Vdc)
Proximity Sensor Activation Distance	Approx. 30 cm
Integrated Temperature Sensor Range	-5 °C to +45 °C
Dimensions (W x H x D)	86 x 102 x 10.5 mm (flush depth 34 mm)
Weight	200 g
Mounting Box	Standard round or square flush-mounting box
Protection Degree	IP20 (EN 60529)
