Microwave Real Presence

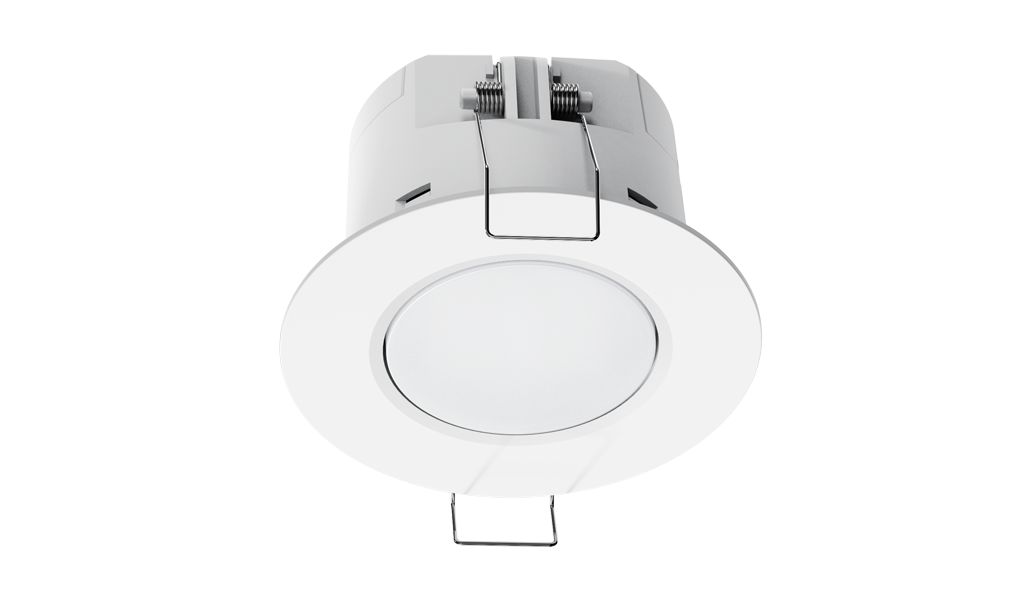

KNX Secure Multifunctional Real Presence Sensor

EK-SG2-TP-P

Equipped with 24 GHz microwave radar technology, the Ekinex KNX Secure multifunctional real presence sensor reliably detects even the slightest stationary presence (such as breathing or typing). Prevents unwanted shut-off of lighting and climate systems when occupants are sitting still. The ultimate choice for hotel rooms, executive offices, conference spaces, and sedentary work areas.

Colour & FinishWhite

Made in Italy

KNX Secure

Compact Flush Design

Architectural Integration & Philosophy

Real presence detection technology redefines modern comfort automation. Thanks to 24 GHz continuous microwave scanning, it verifies human presence even when occupants remain completely still, preventing false-off interruptions. Its ultra-compact silhouette (Ø 65 mm outer diameter) integrates gracefully into ceilings with zero visual intrusion.

Functions & Technical Capabilities

24 GHz microwave radar technology for static presence and micro-motion detection

Guaranteed uninterrupted lighting and climate during sedentary activities

Up to 4 independent output channels for lighting and HVAC

Automatic and semi-automatic operating modes

Integrated ambient lux sensor (0 - 2000 lux) and constant light control

Built-in room temperature sensor

Built-in relative humidity sensor

Advanced thermoregulation functions

Boolean logic blocks and scene control

Master / slave architecture

KNX Data Secure protocol support

Technical Specifications

Detection Technology: 24 GHz microwave radar sensor technology
Static Presence Range: 360° circular area, up to 8.5m diameter (at 4m height)
Installation Height: Approx. 2.5 m - 4.0 m
KNX Bus Power Supply: 21-30 Vdc via KNX bus (Current: 4 mA @ 30 Vdc)
Auxiliary Supply (SELV): 12-30 Vdc (Current: 20 mA @ 30 Vdc)
Illumination Range: 0 - 2000 lux
Body Diameter: Ø 48.5 mm
Outer Diameter: Ø 65 mm
Mounting Hole Diameter: Ø 53 - 55 mm
Recess Depth: 38 mm
Protection Degree: IP20 (EN 60529)
