PIR Presence Sensor

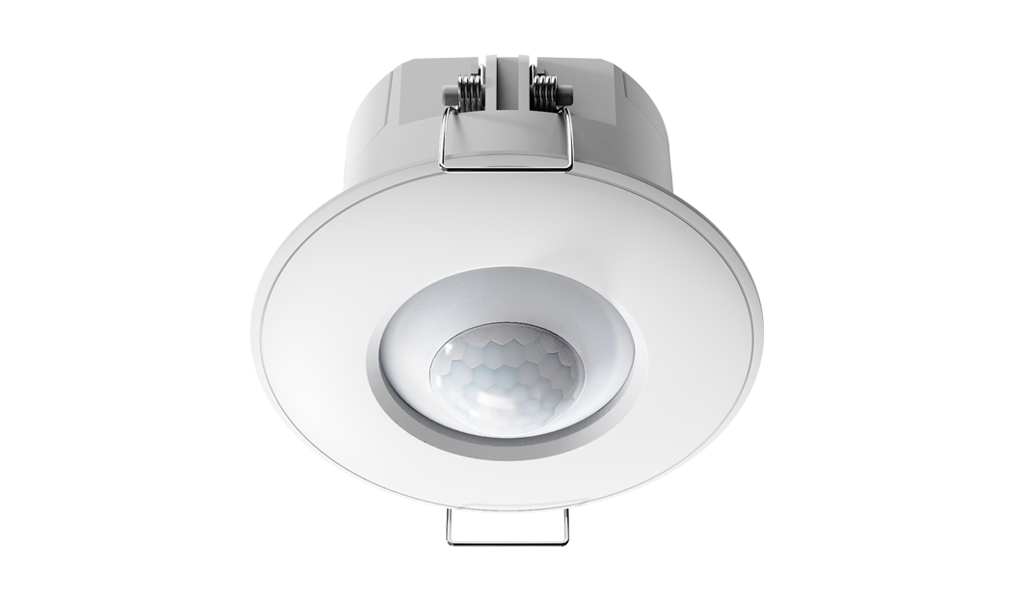

KNX Secure Multi-function PIR Presence Sensor

EK-SG2-TP-M

With the multifunctional PIR presence sensor Ekinex KNX Secure, not only the movement of individuals can be detected, but also ambient light intensity, air humidity and room temperature. Up to 4 channels for lighting (with constant brightness regulation) and integrated thermoregulation functions are available. Despite its compact footprint, the sensor provides a wide detection area up to 15.5m in diameter, making it ideal for residential, hospitality and commercial buildings.

Colour & FinishWhite

Made in Italy

KNX Secure

Compact Flush Design

Architectural Integration & Philosophy

Engineered for flush and discreet ceiling installation, the EK-SG2-TP-M creates a seamless automation equilibrium without altering the interior architectural aesthetic. Thanks to its directional lens and advanced PIR optics, it accurately distinguishes walking motion as well as sedentary desk activities. Integrated temperature and humidity sensors optimize indoor HVAC regulation, while the constant light control dynamically harmonizes artificial illumination with natural daylight.

Functions & Technical Capabilities

Detection of normal and small movements with PIR technology and directional lens

Up to 4 independent output channels for lighting and HVAC

Up to 3 brightness levels for both entry and exit situations

Automatic and semi-automatic operating modes

Built-in high-precision ambient brightness sensor (0 - 2000 lux)

Built-in room temperature sensor

Built-in relative humidity sensor

Constant brightness regulation for daylight harvesting

Integrated thermoregulation functions

Advanced logic blocks (Boolean logic, comparators)

Master / slave system architecture

Configurable LED orientation and night light

Full KNX Data Secure protocol support

Technical Specifications

Detection Technology: Passive infrared (PIR) with directional lens
Detection Range: 360° circular field, up to 15.5m diameter (at 6m height)
Installation Height: Approx. 2.5 m - 6.0 m
KNX Bus Power Supply: 21-30 Vdc via KNX bus line (SELV)
Current Consumption: 5.5 mA @ 30 Vdc
Illumination Range: 0 - 2000 lux
Body Diameter: Ø 48.5 mm
Outer Diameter: Ø 70 mm
Mounting Hole Diameter: Ø 53 - 55 mm
Recess Depth: 37 mm
Housing Material: Flame retardant thermoplastic
Protection Degree: IP20 (according to EN 60529)

Compatible Mounting Accessories

Wall Mounting Bracket (White): EK-AMP-1
Wall Mounting Bracket (Black): EK-AMP-1-B
Surface Wall Mounting Bracket (White): EK-AME-1
Surface Wall Mounting Bracket (Black): EK-AME-1-B

Technical Documentation

Official datasheets, application manuals, installation guides and certificates.

Installation & User Instructions

FISPEKSG2TPMIEX0 | v. 1 (14/01/2025) | 1.2 MB

Download

Application Manual (ETS)

MAEKSG2TPX_EN | v. 1.5 (14/01/2025) | 3.7 MB

Download

CE Conformity Declaration

CEEKSG2TPM | v. 2.0 (28/11/2023) | 858.1 KB

Download

UKCA Statement of Conformity

UKCADCEKSG2TPMB_v.1 | v. 1.0 (16/06/2025) | 428.4 KB

Download

KNX Certification

KNX_Certification_EK-SG2-TP-M_v.1.2 | v. 1.2 (01/12/2023) | 770.4 KB

Download
