Description

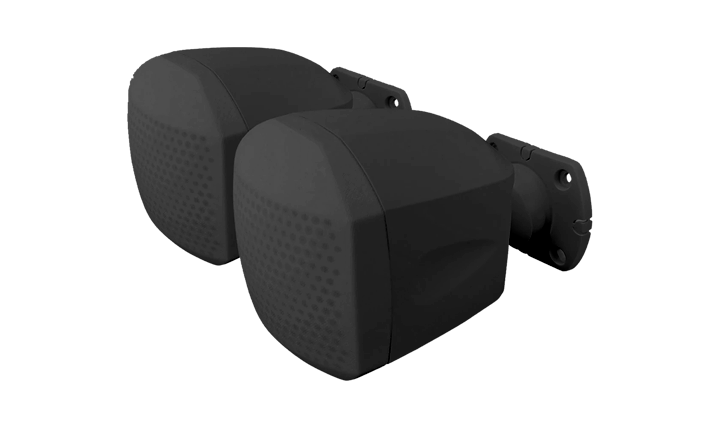

The Ekinex Home Audio Speaker EK-SP30B2-AU offers a unique combination of sleek ascetic design and high performance sound quality.
Its small footprint allows for easy system integration without compromising on sound quality or performance.
IP66 Weather Resistant rating allows for Indoor/Outdoor applications making it one of the most versatile Home/Commercial Audio speakers available.
Specifications
Product Code & ModelEK-SP30B2-AU
Loudspeaker TypeIP66 Wall-Mounted Acoustic Speaker Black (Pair)
Recommended Amplification40 Watts
Frequency Response120Hz - 20KHz
SPL 1W/1m88 dB
Impedance8 ohm
Frequency RangeExtended
Woofer2.5" (64mm)
Woofer Cone MaterialPaper
Grille MaterialFabric
Dispersion Angle120°
Mounting SystemRotation/tilt bracket (included)
Housing MaterialReinforced ABS plastic
IP Weather RatingIP66
Dimensions (H x W x D)94 x 82 x 108 mm
Product Net Weight0.48 kg
ColourRAL9011 (BL)
Installation
Wall mounting and wiring connections of the speaker are completed in 5 straightforward steps.
Adım 01
1. Attach the bracket to the wall
Adım 02
2. Connect the speaker wire to the phoenix connector
Adım 03
3. Attach phoenix connector to the speaker
Adım 04
4. Attach the speaker to the bracket
Adım 05
5. Attach the rubber stopper
Functions / Features
- When the speakers are installed on the walls, ensure the wall structure is reliable and that the speakers are firmly attached.
- Install the speaker in a location that can structurally support the weight of the speaker and its mounting hardware. Otherwise it may result in the unit falling down and causing personal injury.
- Do not use nails, adhesives or other unauthorized devices; long-term use and vibrations may cause it to fall easily.
- Do not touch or bump the woofer and tweeter. If these are damaged, the sound will be distorted.
- Lower the volume of the device and source unit when changing the input source (e.g. to tune FM / CD).
- Turn off the device and source unit when installing or removing cables.
Configuration and commissioning
The volume is controlled by your active speaker.
