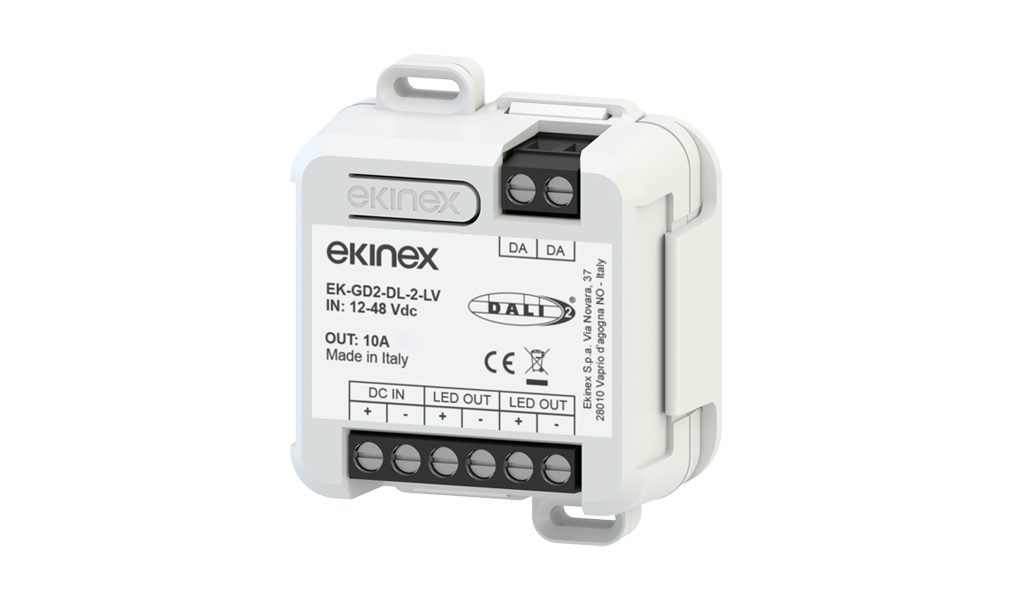

DALI Dimmer 12/48 Vdc 2-channels

DIN-Rail mount modules

Code: EK-GD2-DL-2-LV

Phase Out
DALI Dimmer 12/48 Vdc 2-channels

Description

The 2-channels DALI-2 dimmer EK-GD2-DL-2-LV allows the control of brightness and colour temperature of low-voltage LED sources from 12 to 48Vdc by means of PWM dimming.

Dynamic white temperature control TW DALI DT8, 2 independent channels (2 DALI addresses) or a single DALI DT6 channel. Functions can be set by means of a selector switch. Bus input DALI-2 reference IEC 62386.

Technical Data

Electrical Data

Device Power Supply10.8 Vdc (min) ... 52.8 Vdc (max)
Max. Power240W
ControlBUS DALI or local button
PWM Frequency2000 Hz (flicker free)
Flicker StandardDefined by IEEE 1789-2015 (low risk / no observable effect zone)

Housing & Installation

HousingPlastic housing
InstallationFree-standing device for installation in junction boxes or walls
DIN Rail MountingMounting on 35 mm profile rail (using special bracket included)
Degree of ProtectionIP10 (device installed)

Functions / Features

Memory function settable by DALI
Dimming up to complete switch-off (dim-to-dark)
Minimum brightness level: 0.1%
PWM modulation flicker free (2000 Hz)
DALI-settable dimming curve: linear or logarithmic
Switch-on and switch-off times settable by DALI
Optimised output curve

Configuration and Commissioning

Screw terminals for DALI bus, control, power supply and LED source. Max. connection length between dimmer-driver and control < 10 m.

Documentation

Datasheet

STEKGD2DL12LV_EN• v. 1.2(04/10/2023)• PDF• 2,1 MB

Instructions

FISPEKGDXDLXLVIE1• v. 1.0(11/03/2024)• PDF• 1,8 MB

CE Conformity Declaration

CEEKGD2DL12LV• v. 1.0(29/03/2023)• PDF• 1 MB

UKCA Statement

UKCAEKGD2DL12LV• v. 1.0(29/03/2023)• PDF• 547,6 KB

Drawing

DQEKGD2DL2LV• DXF• 5,4 MB
