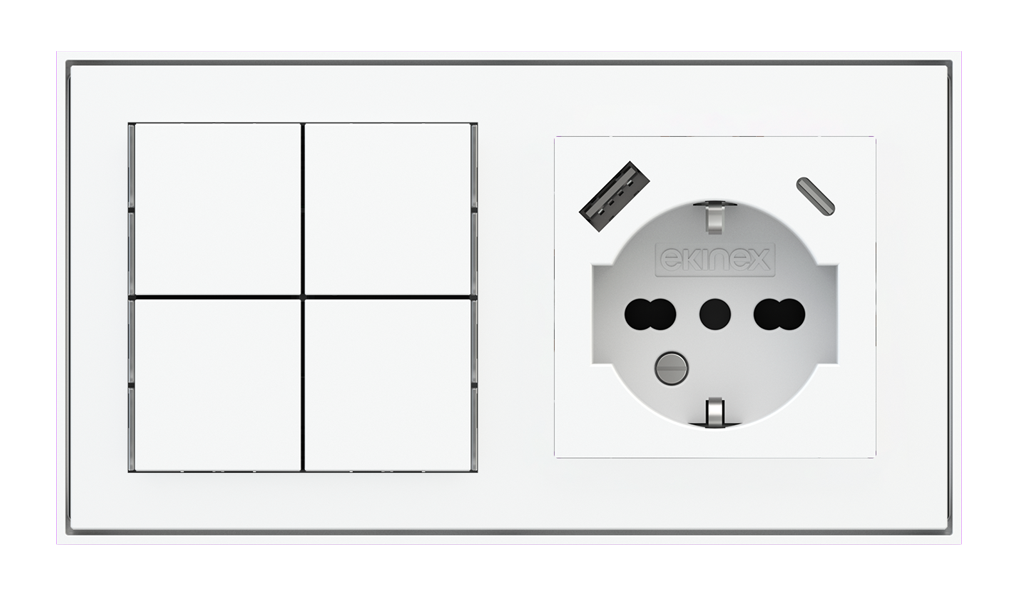

Basic Pushbutton (NO LED) and Socket Point for 2-Fold Plate (60x55 mm Module) - IT USB
Integration of a 4-fold basic KNX switch without LEDs with an Italian socket featuring a built-in USB charging port in 2-fold plates.
Architectural Integration & Features
The Ekinex 71 series wall devices combined with power sockets represent an exquisite convergence of home automation and essential electrical infrastructure. Engineered for standard 71 mm modular spacing, they enable pushbuttons, thermostats, and electrical outlets to coalesce under a unified, continuous 2-fold plate architecture.
Technical Specifications
| Product Family | 71 Series Basic Controls with Socket |
| Design Line | Form, Flank or Deep 2-Fold Plates |
| Mounting Standard | 2-gang flush mounting box with 71 mm pitch |
| Connection | KNX bus terminal block (black/red) |
| Power Supply | 21-32 Vdc bus voltage, current consumption < 10 mA |
| Socket Type | Italian Socket with USB Charger (EK-PWS-IT-USB) |
| Status LEDs | No LED Hardware (Basic Version) |
Technical Documentation
Official Ekinex technical datasheets, mounting manuals and engineering documents.
Technical Datasheet (EK-E13-TP / EK-E23-TP)
STEKE13E23TP · v.4.2 · 2.48 MB
Mounting & Installation Instructions
FISPE13E23TPIEX06_P · v.06 · 1.17 MB
Application Manual
MAED2E13TP_EN · v.4.3 · 3.60 MB
ETS Application Program
APEKE12E13TP · v.1.3 · 2.56 MB
CE Declaration of Conformity
CEEKE13E23TP · v.1.0 · 872 KB
UKCA Declaration of Conformity
UKCADCEKE13E23TP · v.1.0 · 428 KB
KNX Certificate
KNX_Certification_EK-E13-TP · v.1.0 · 794 KB
Technical Specifications
TCEKE13TP_EN · v.2.0 · 108 KB
2D/3D CAD Drawing (2-Fold Rectangular Plate)
DQEKE12-E22TPR · 2.60 MB
