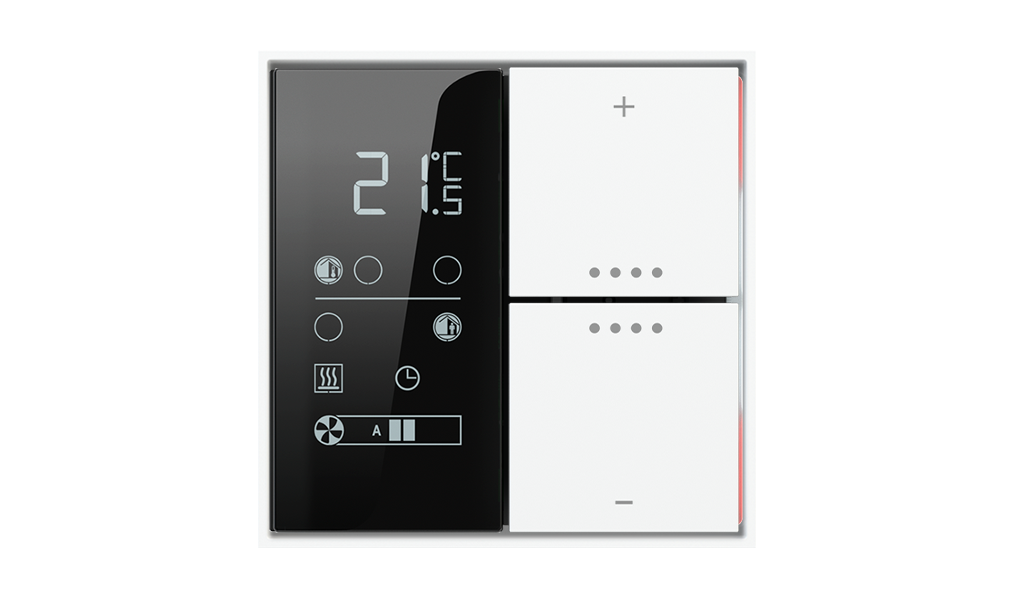

Easy Room Temperature Controller ER2

Code: EK-ER2-TP

Technopolymer: Pure White (RAL 9016) - GAR

Description

The Ekinex® Easy room thermostat FF-series is a digital electronic thermostat with a user-friendly interface for the end user and system integrator.

While using a single differentiated set point for heating and cooling with only one on/off operating mode, the unit allows the control of terminals with one or two stages (such as radiators, floor and ceiling radiant panels, etc.) and fan-coil units with 2 or 4 pipe hydraulic supply.

The product is equipped with an LCD display with adjustable back-lighting, a sensor for room temperature measurement and two freely configurable inputs.

The indicator LEDs can be chosen in blue/green or white/red colour combinations. The device has an integrated KNX bus communication module and is designed for installation in a flush-mounted wall box; it is powered by the KNX bus and requires no auxiliary power supply.

Functions / Features

LCD display with adjustable backlighting
2 keys for controlling the thermostat functions
4 freely programmable LEDs for each button
2 colour combinations available for LEDs (blue/green or white/red)
Integrated temperature sensor
2 freely programmable inputs
Plastic housing
Bus line connection via KNX terminal
Programming button and LED on front panel
Recessed wall mounting on round or square box
IP20 degree of protection (installed)
Weight 85 g (with mounting bracket)

Technical Data

30 Vdc power supply through KNX bus
Current consumption from bus < 13 mA

Delivery

Delivery includes a terminal block for connection to the bus, a metal support for installation onto round or square mounting box (fixing holes 60 mm apart) and two pairs of fixing screws.

Accessories

The following accessories are available to be ordered separately:

Set of two square rockers with symbols for room thermostat
Square frame Form or Flank version

Configuration and Commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKER2TP##.knxprod (## = release). Available languages: English, French, German, Italian.

Order Codes

Code	LED Colours	Mounting	Side Profile
EK-ER2-TP	blue / green	with square frame Form or Flank version	black
EK-ER2-TP-RW	red / white	with square frame Form or Flank version	black
EK-ER2-TP-BG-NF	blue / green	without frame ('NF version)	black
EK-ER2-TP-RW-NF	red / white	without frame ('NF version)	black
EK-ER2-TP-BG-NFW	blue / green	without frame ('NF version)	white
EK-ER2-TP-RW-NFW	red / white	without frame ('NF version)	white
