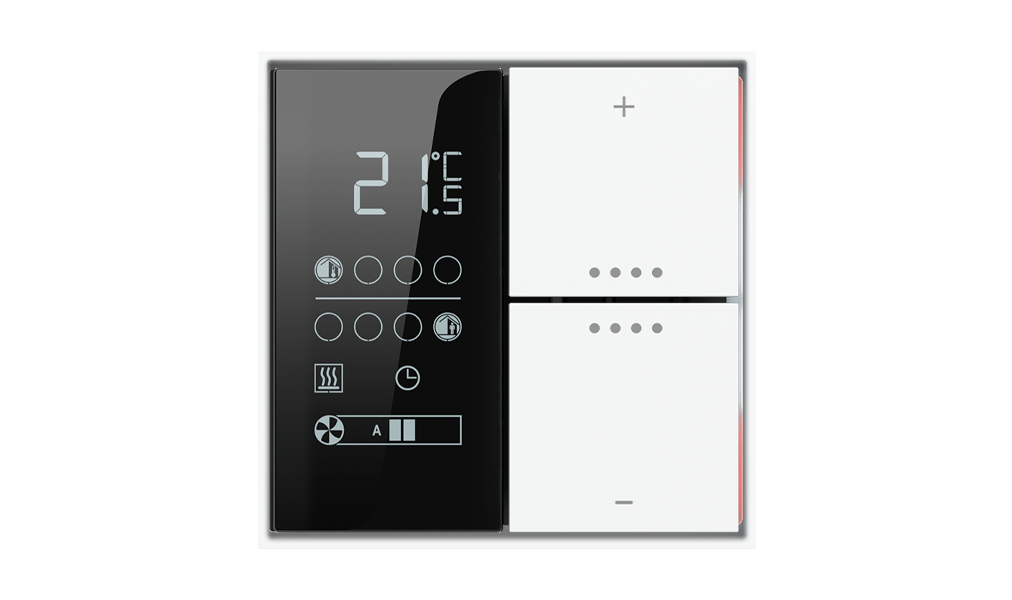

Room Temperature Controller EP2

Code: EK-EP2-TP

Technopolymer: Pure White (RAL 9016) - GAR

Description

The Ekinex® room temperature controller of FF series regulates independently the temperature of a room or a zone.

In combination with one or more KNX actuators, the room temperature controller is able to control the heating and cooling emission of a series of terminal units for the thermal exchange (such as radiators, fan-coils, floor and ceiling radiant panels, etc.).

The device is provided with a LCD-display with adjustable backlight, sensors for temperature and brightness measuring and two freely configurable inputs.

The LEDs can be chosen in the colour combinations blue / green or white / red. The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is powered by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply.

Functions / Features

LCD display with adjustable backlighting
2 keys for controlling the thermostat functions
4 freely programmable LEDs for each button
2 colour combinations available for LEDs (blue/green or white/red)
Integrated temperature and brightness sensors
2 freely programmable inputs
Plastic housing
Bus line connection via KNX terminal
Programming button and LED on front panel
Recessed wall mounting on round or square box
IP20 degree of protection (installed)
Weight 85 g (with mounting bracket)

Technical Data

30 Vdc power supply through KNX bus
Current consumption from bus < 13 mA

Delivery

Delivery includes a terminal block for connection to the bus, a metal support for installation onto round or square mounting box (fixing holes 60 mm apart) and two pairs of fixing screws.

Accessories

The following accessories are available to be ordered separately:

Set of two square rockers with symbols for room thermostat
Square frame Form or Flank version

Configuration and Commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKEP2TP##.knxprod (## = release). Available languages: English, French, German, Italian.

Order Codes

Code	LED Colours	Mounting	Side Profile
EK-EP2-TP	blue / green	with square frame Form or Flank version	black
EK-EP2-TP-RW	red / white	with square frame Form or Flank version	black
EK-EP2-TP-BG-NF	blue / green	without frame ('NF version)	black
EK-EP2-TP-RW-NF	red / white	without frame ('NF version)	black
EK-EP2-TP-BG-NFW	blue / green	without frame ('NF version)	white
EK-EP2-TP-RW-NFW	red / white	without frame ('NF version)	white
