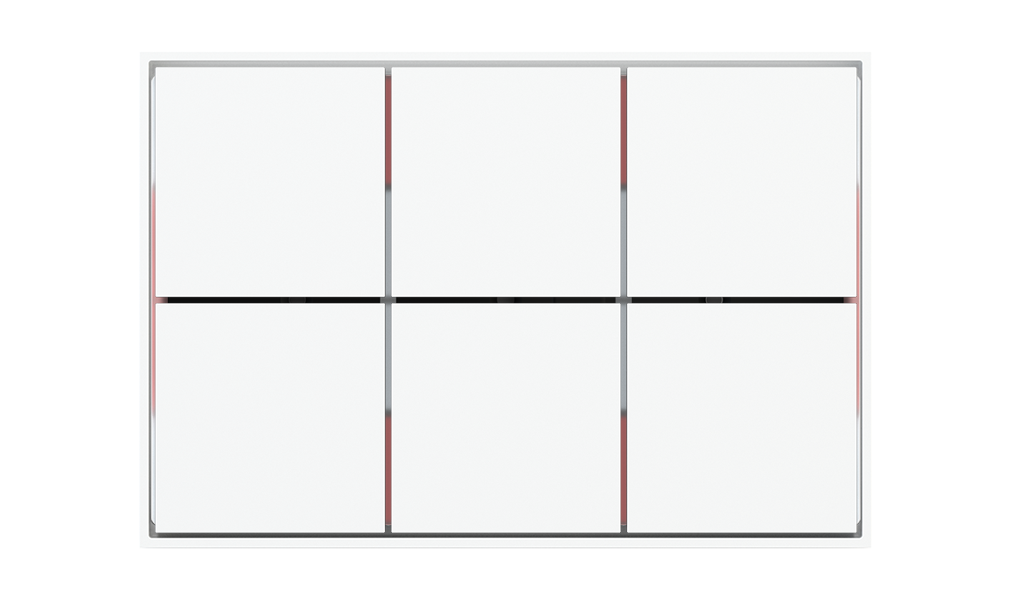

Pushbutton 6 channels

Code: EK-EH2-TP

KNX

Technopolymer: Pure White (RAL 9016) - GAR

Description

The 6-fold pushbutton of Ekinex® FF series commands loads on/off switching, controls the dimming of lighting devices, controls motor drives for shutters or executes any other programmable command and control function.

Thanks to the integrated temperature sensor, the pushbutton can send the room temperature value on the bus to other KNX devices. The LEDs can be chosen in the colour combinations blue / green or white / red.

The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is supplied by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply.

Delivery

Delivery includes a terminal block for connection to the bus, a metal support for installation onto round or square mounting box (fixing holes 60 mm apart) or rectangular 3-module mounting box (fixing holes 83.5 mm apart) and two pairs of fixing screws.

Accessories

The following accessories are available to be ordered separately:

Square rockers
Rectangular frame Form or Flank version

Technical data

30 Vdc power supply through KNX bus
Current consumption from bus < 15 mA
Integrated temperature and brightness sensors
Rear programming pushbutton and LED
Connection to bus line with KNX terminal block
Wall-mounting installation on round or square box (fixing holes 60 mm apart) or rectangular 3-module box (fixing holes 83.5 mm apart)
IP20 protection degree (installed)
Weight 75 g (with mounting support)
