Description

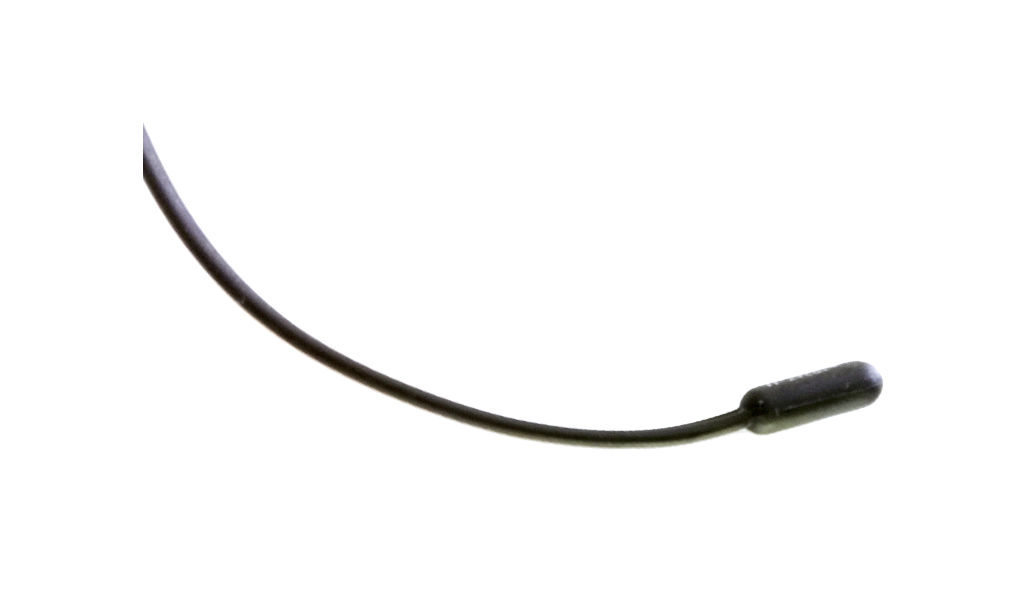

Temperature sensor for air mass measurement with NTC sensing element to be used in combination with Ekinex® KNX devices equipped with an analog input (or configurable as [AI]) to measure the temperature.
The version of the sensor is characterized by the sensing element molded directly on the connecting cable; it is particularly suitable for detecting the temperature of the indoor air mass.
The electrical connection with the Ekinex® KNX device is realized by the two-wire cable (length 1.5 m).
Functions / Features
Sensing element: NTC (10 kΩ ±1% at 25°C, ß = 3435)
Operating temperature: −50°C ... +105°C (in air)
Sensing element co-molded directly onto connecting cable
Reliable and fast indoor air mass temperature measurement
1.5 m integrated two-wire connecting cable
Configuration and commissioning
Required for the Ekinex KNX device to which the temperature sensor is connected.
